Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

The front inside door handle bezel has electrical connectors, the rear does not.

  1. Insert a flat bladed tool behind the forward edge of the door handle bezel.
  2. Gently pry the bezel away from the door trim panel.
  3. Pull the bezel forward over the inside door handle.
  4. Using a small flat blade tool, gently pry the memory seat switch out of the Handle bezel.
  5. Disconnect the electrical connector from the power door lock switch.

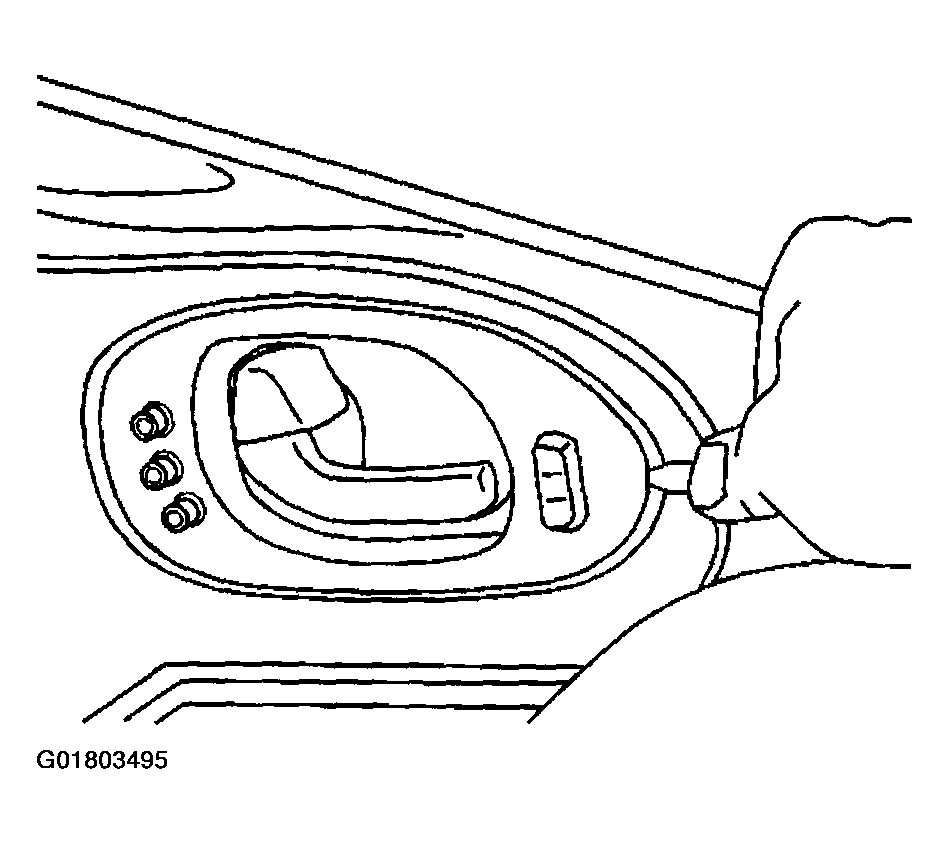

    Fig 1: Removing Door Handle Bezel
    G01803495Courtesy of GENERAL MOTORS CORP.
