Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the J 38778  in order to pry the front lower edge of the filler panel away from the door, releasing the push in fastener.
  2. Pull the filler panel forward to remove.

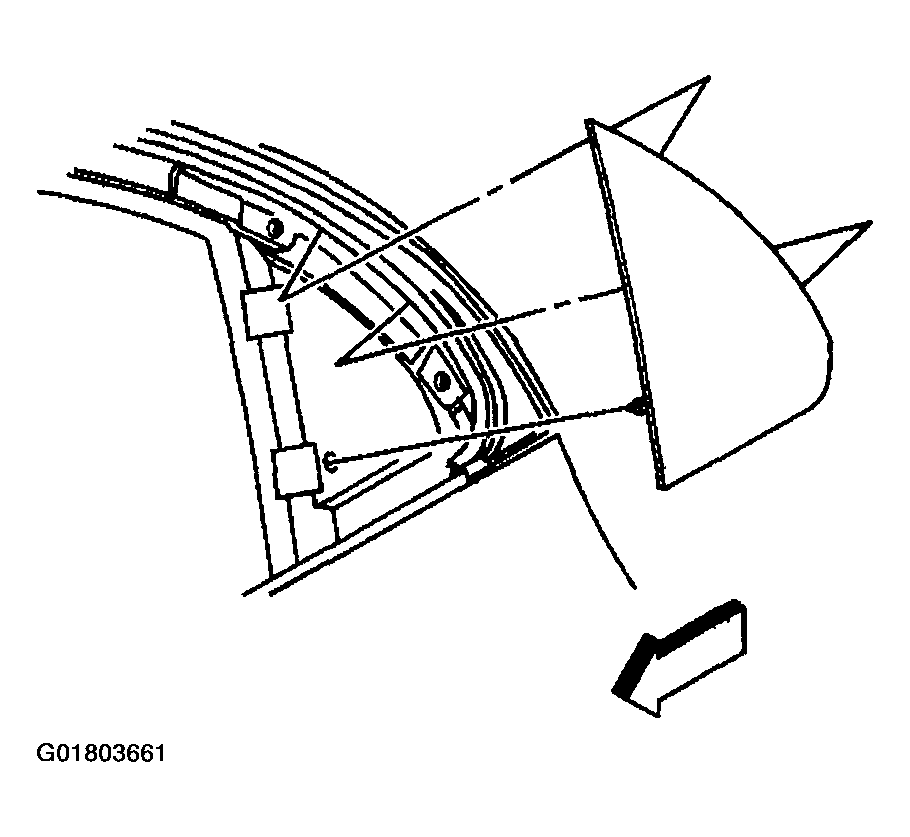

    Fig 1: Removing Rear Door Outer Filler Panel
    G01803661Courtesy of GENERAL MOTORS CORP.
