Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Peel the rear of the water deflector off far enough to access the energy absorbers. Refer to Water Deflector Replacement - Rear Door .
  3. Cut the push pins that fasten the inner energy absorber to the door.
  4. Remove the energy absorber.

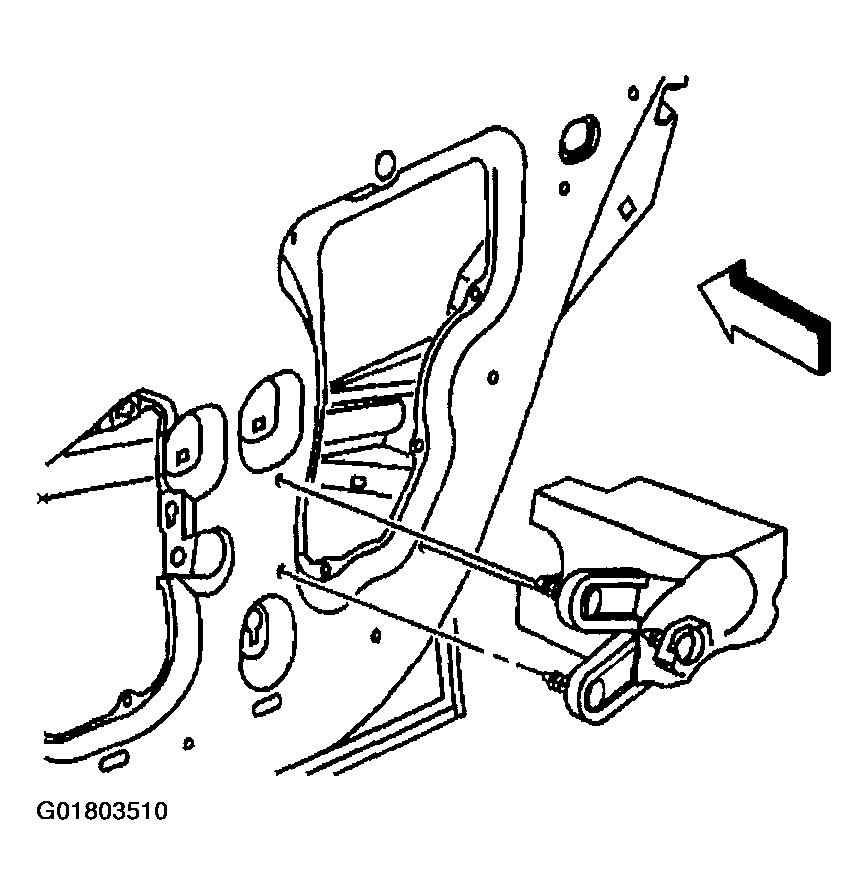

    Fig 1: Removing Energy Absorber
    G01803510Courtesy of GENERAL MOTORS CORP.
