Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mark the location of the hinges (upper and lower) on the door.

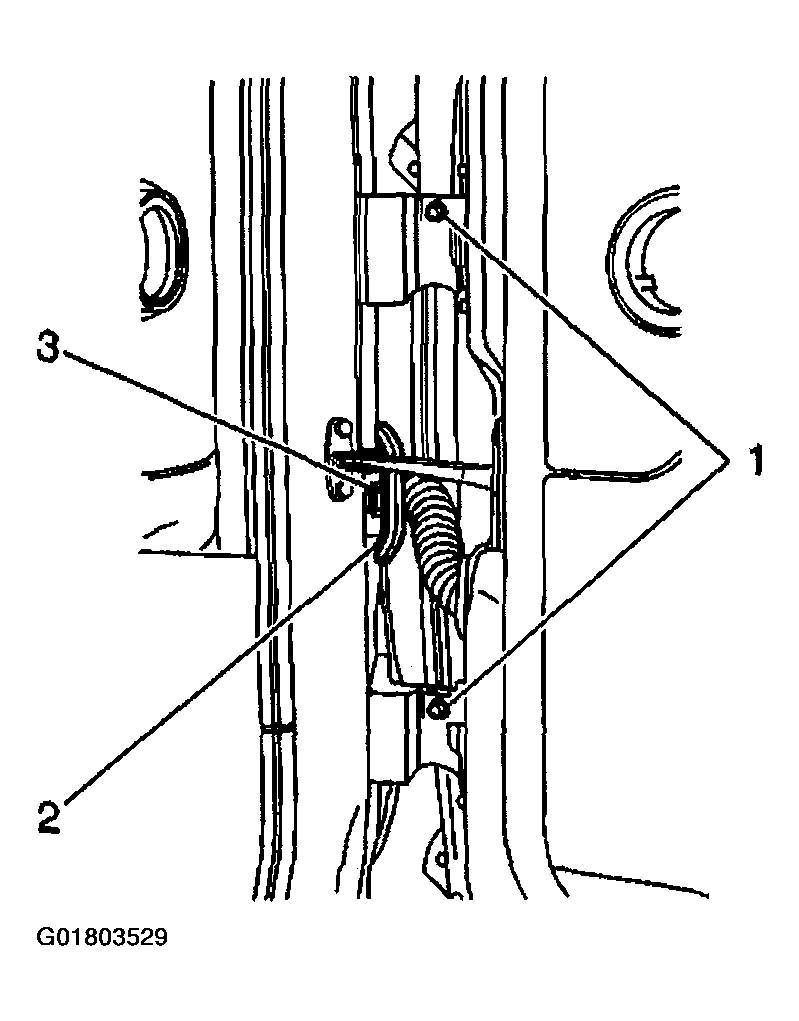

    2. Fig 1: Locating Hinges
    G01803529Courtesy of GENERAL MOTORS CORP.
  2. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  3. Remove the door module. Refer to Door Control Module Replacement .
  4. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door .
  5. Remove the inside door handle. Refer to Door Handle Replacement - Rear Inside .
  6. Remove the energy absorber pad. Refer to Energy Absorber Pad Replacement Rear Door .
  7. Remove the window inner belt seal strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Inner .
  8. Remove the window outer belt seal strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Outer .
  9. Remove the door window. Refer to Window Replacement - Rear Door .
  10. Remove the window regulator. Refer to Window Regulator Replacement - Rear Door .
  11. Remove the window weatherstrip. Refer to Weatherstrip Replacement - Rear Door Window .
  12. Remove the door frame applique. Refer to Door Frame Applique Replacement - Rear .
  13. Remove the door bottom auxiliary sealing strip. Refer to Sealing Strip Replacement - Rear Door Bottom Auxiliary .
  14. Remove the front window run channel. Refer to Window Channel Replacement - Rear Door Front .
  15. Remove the outside door handle. Refer to Door Handle Replacement - Rear Outside .
  16. Remove the door latch. Refer to Latch Replacement - Rear Door .
  17. Remove the upper auxiliary weatherstrip. Refer to Weatherstrip Replacement - Rear Door Upper Auxiliary .
  18. Insert a small flat bladed tool between the door wire harness conduit (2) and the hinge pillar in order to depress and release the tab (3) on the door wiring harness connector.
  19. Remove the door wire harness from the hinge pillar.
  20. Disconnect the door wiring harness from the body wiring harness.

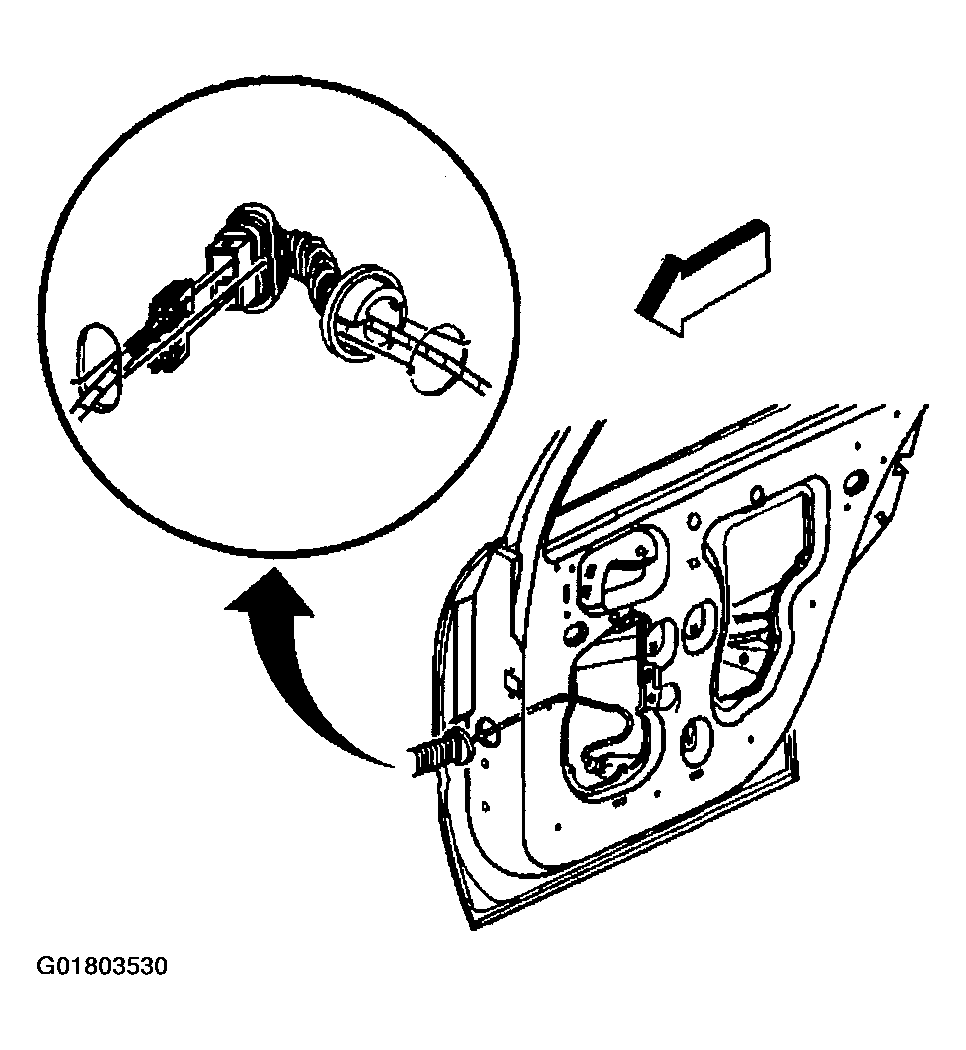

    Fig 2: Disconnecting Door Wiring Harness
    G01803530Courtesy of GENERAL MOTORS CORP.
  21. Remove the rubber conduit and wiring harness (1) from the door.
  22. Remove the door check link. Refer to Door Check Link Replacement .

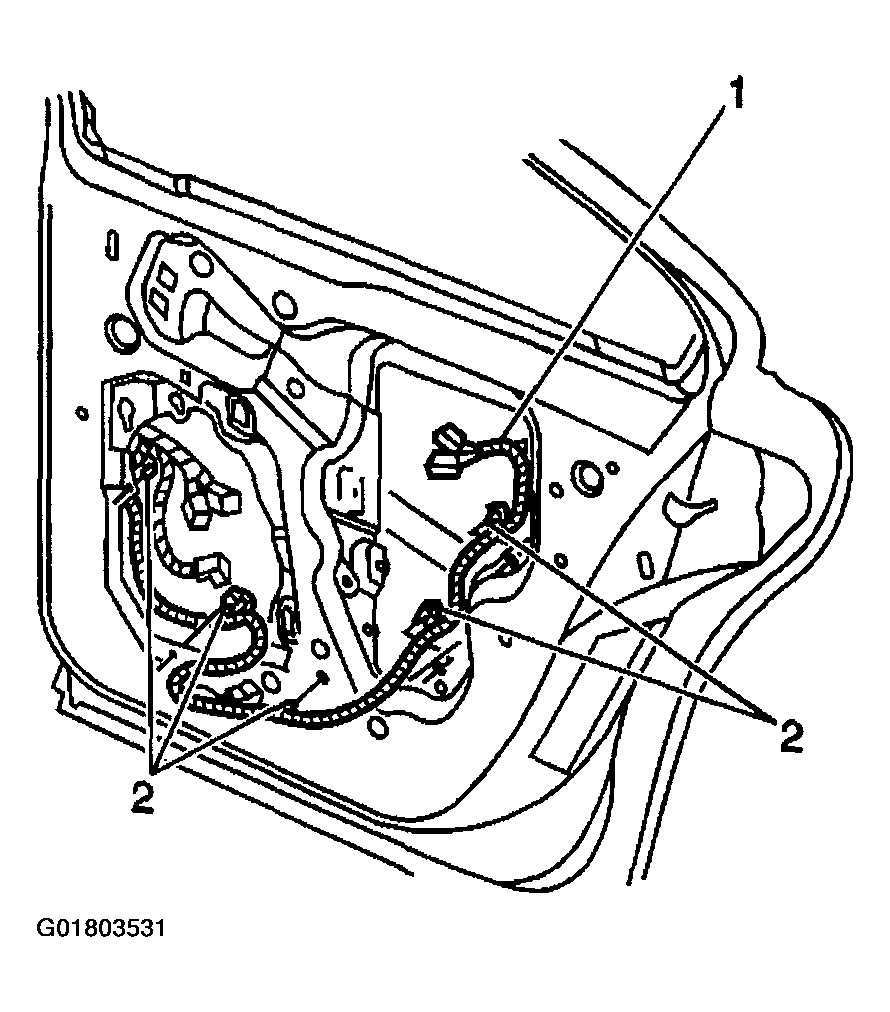

    Fig 3: Removing Door Rubber Conduit & Wiring Harness
    G01803531Courtesy of GENERAL MOTORS CORP.
  23. Remove the intermediate hinge fasteners (1) from both hinges.
  24. Lift the door to remove.
  25. Remove the door hinges. Refer to Hinge Replacement - Rear Door .

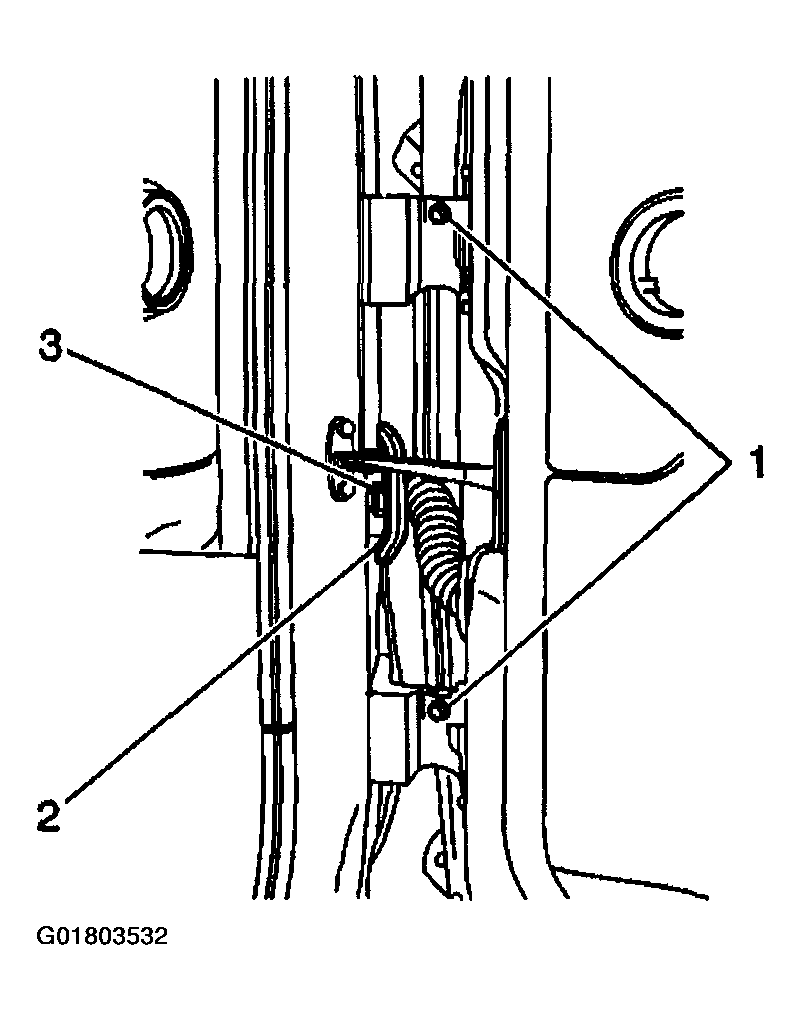

    Fig 4: Removing Intermediate Hinge Fasteners
    G01803532Courtesy of GENERAL MOTORS CORP.
