Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Peel the water deflector forward just far enough to access the outside door handle.

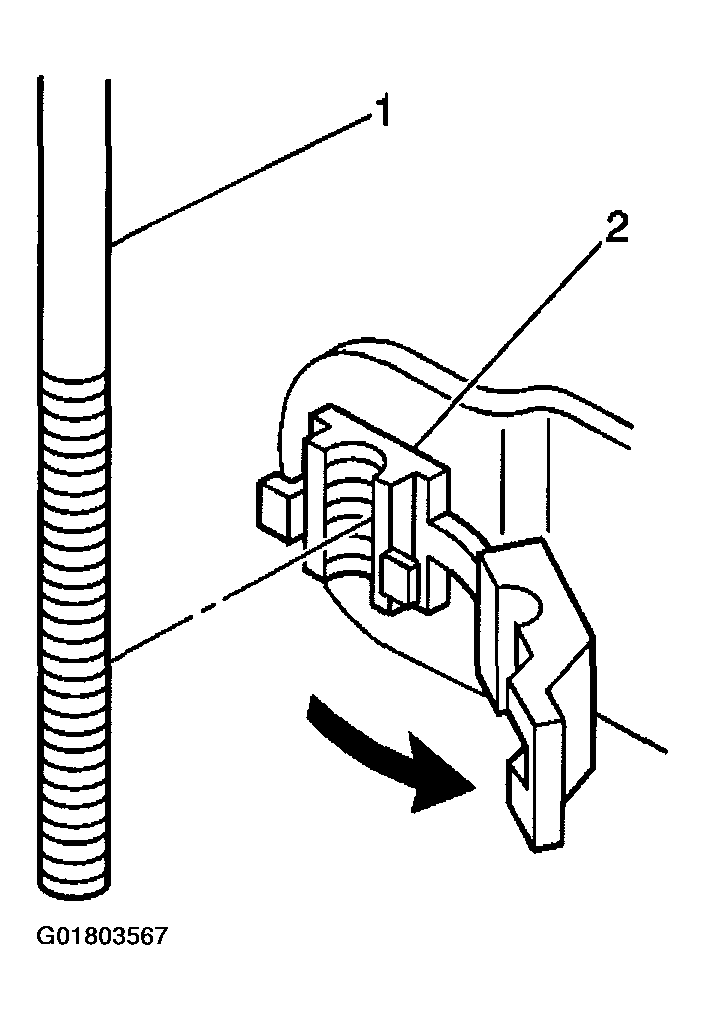

  3. Disconnect the outside door handle latch rod (1) by opening the retainer (2) on the door latch.
    Fig 1: Disconnecting Outside Door Handle Latch Rod
    G01803567Courtesy of GENERAL MOTORS CORP.

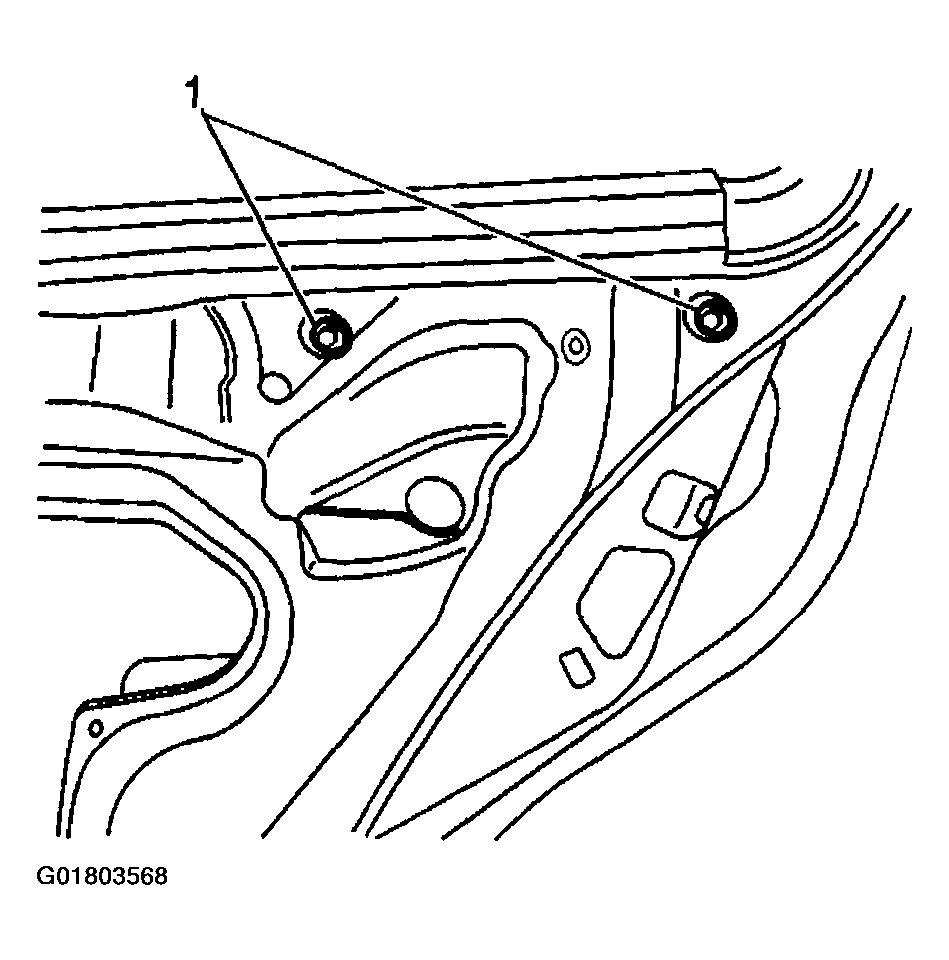

  4. Remove the outside door handle fasteners through the access holes (1).
    Fig 2: Removing Outside Door Handle Fasteners
    G01803568Courtesy of GENERAL MOTORS CORP.

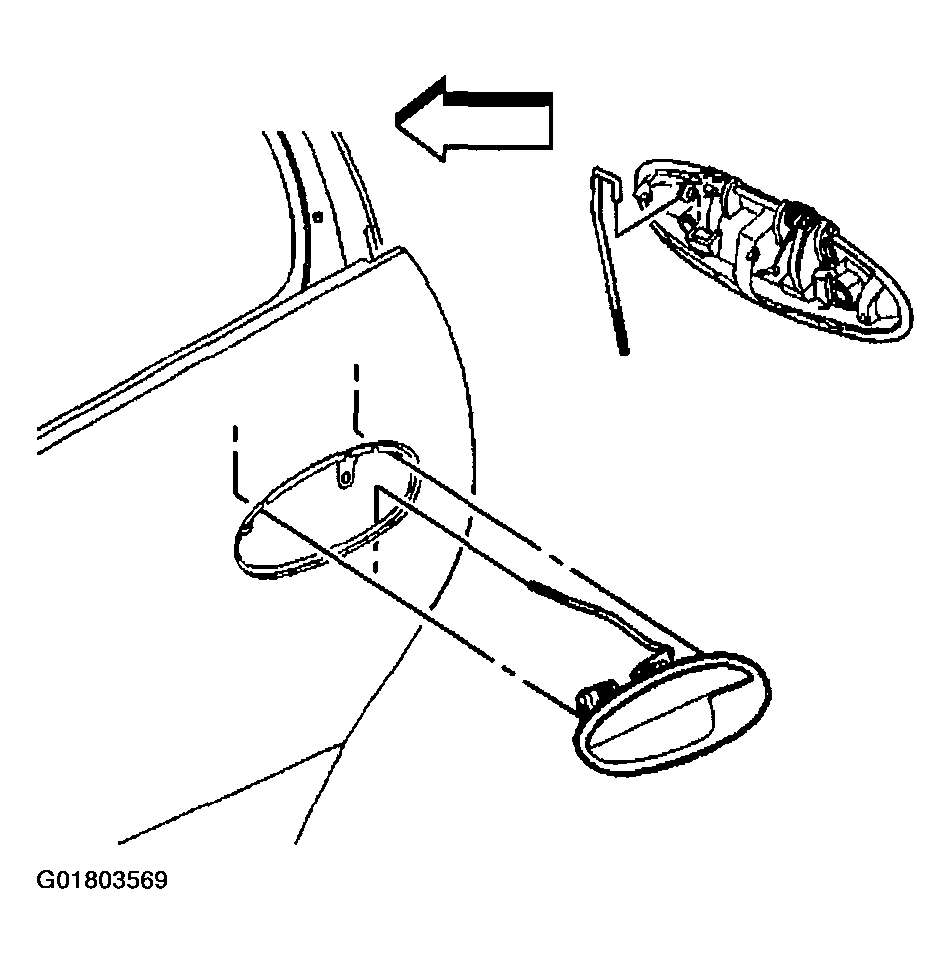

  5. Remove the handle, with latch rod attached, by lifting up and out.
  6. Remove the rod from the door handle.
    Fig 3: Removing Handle
    G01803569Courtesy of GENERAL MOTORS CORP.
