Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Remove the door module. Refer to Door Control Module Replacement .
  3. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door .
  4. Remove the fastener (2) from the inside door handle.

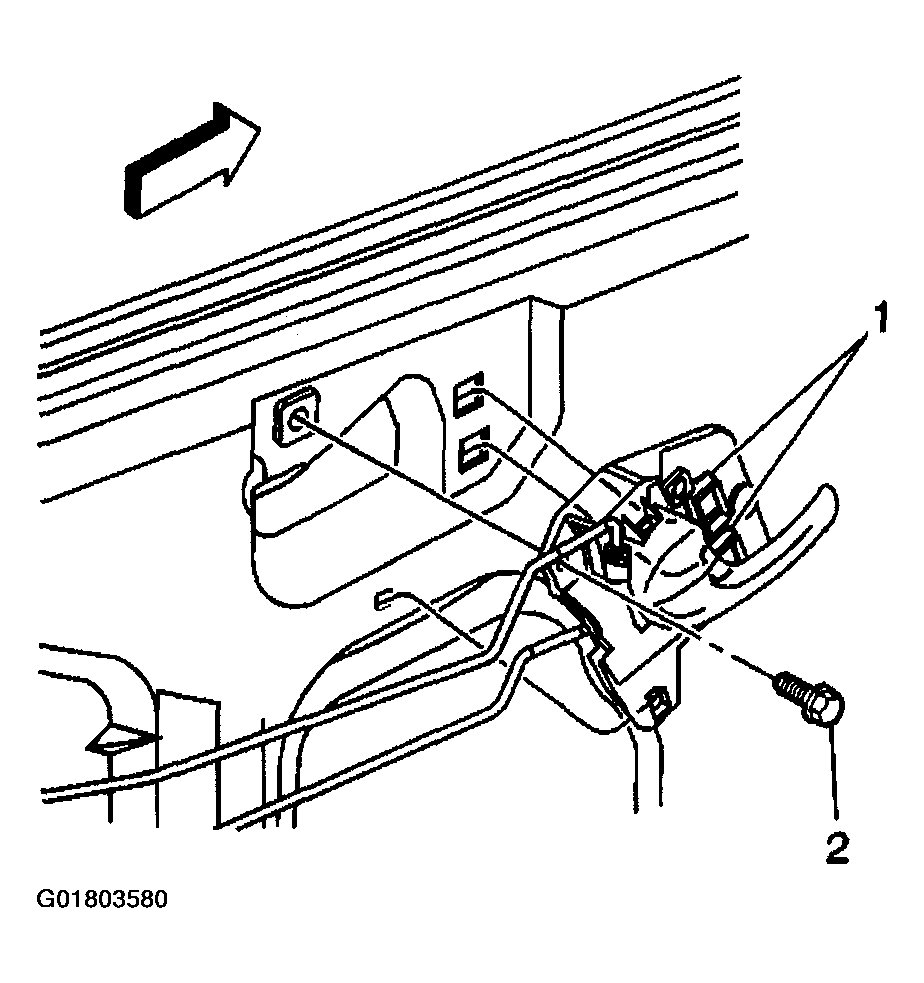

    Fig 1: Removing Fastener From Inside Door Handle
    G01803580Courtesy of GENERAL MOTORS CORP.
  5. Slide the inside door handle forward to release the tabs (4) from the door.
  6. Tilt the handle and remove the rods from the handle in the following sequence:
    1. 6.1. Lock knob rod (1)
    2. 6.2. Handle lever rod (2)

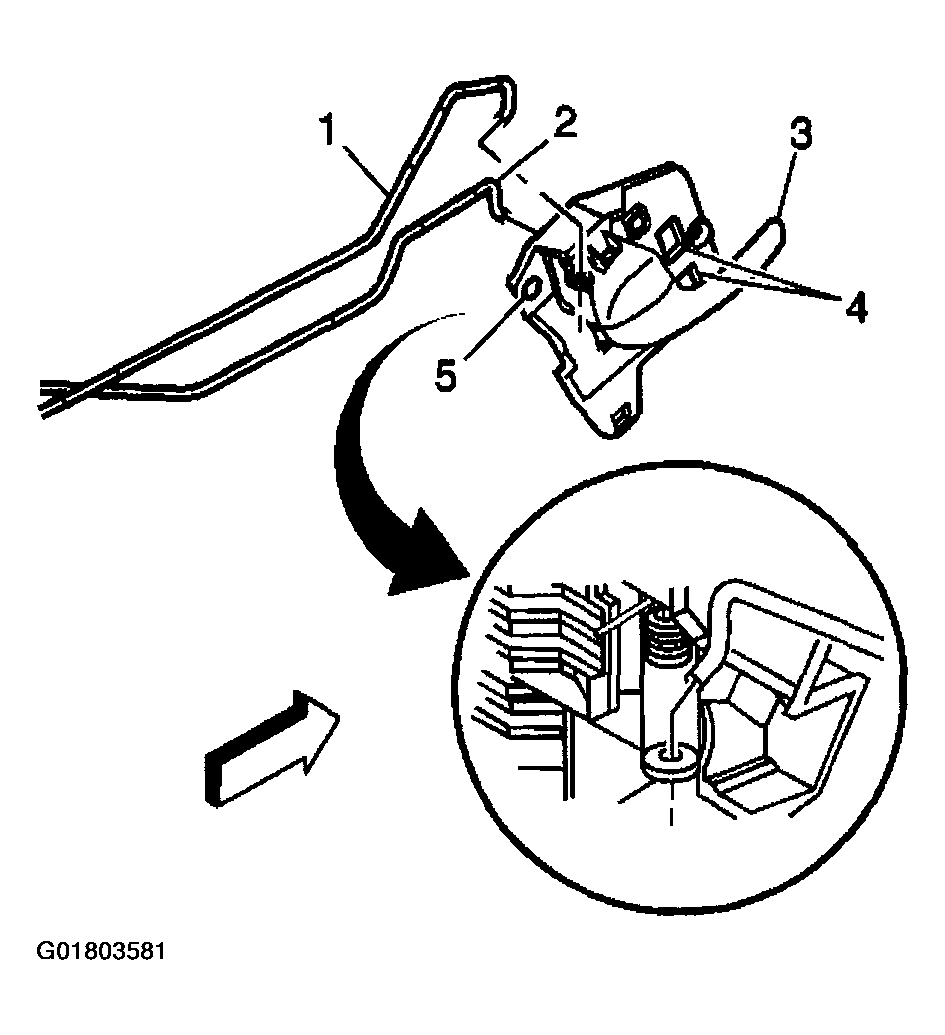

    Fig 2: Removing Rods From Handle
    G01803581Courtesy of GENERAL MOTORS CORP.
