Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the door module. Refer to Door Control Module Replacement .
  3. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
  4. Remove the door handle fastener (2).
    Fig 1: Removing Door Handle Fastener
    G01803573Courtesy of GENERAL MOTORS CORP.
  5. Install the lock and latch rods from the rod guide.

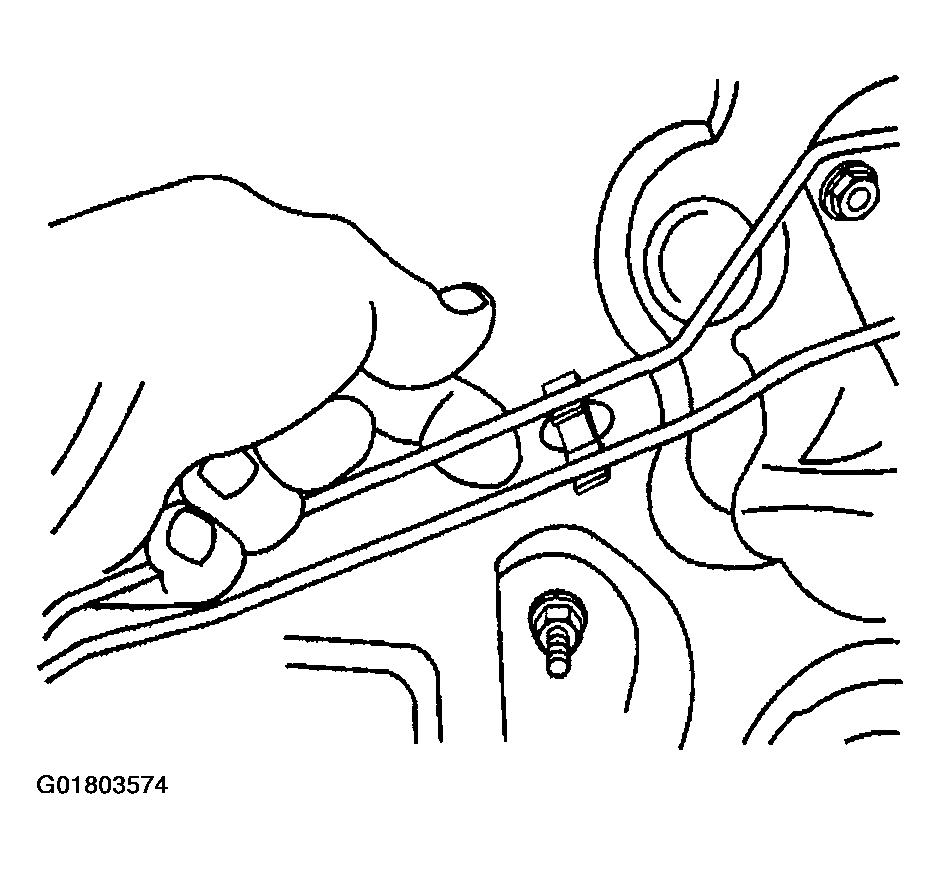

    Fig 2: Installing Lock Latch Rods
    G01803574Courtesy of GENERAL MOTORS CORP.
  6. Slide handle assembly forward to release the retainer tabs (1).

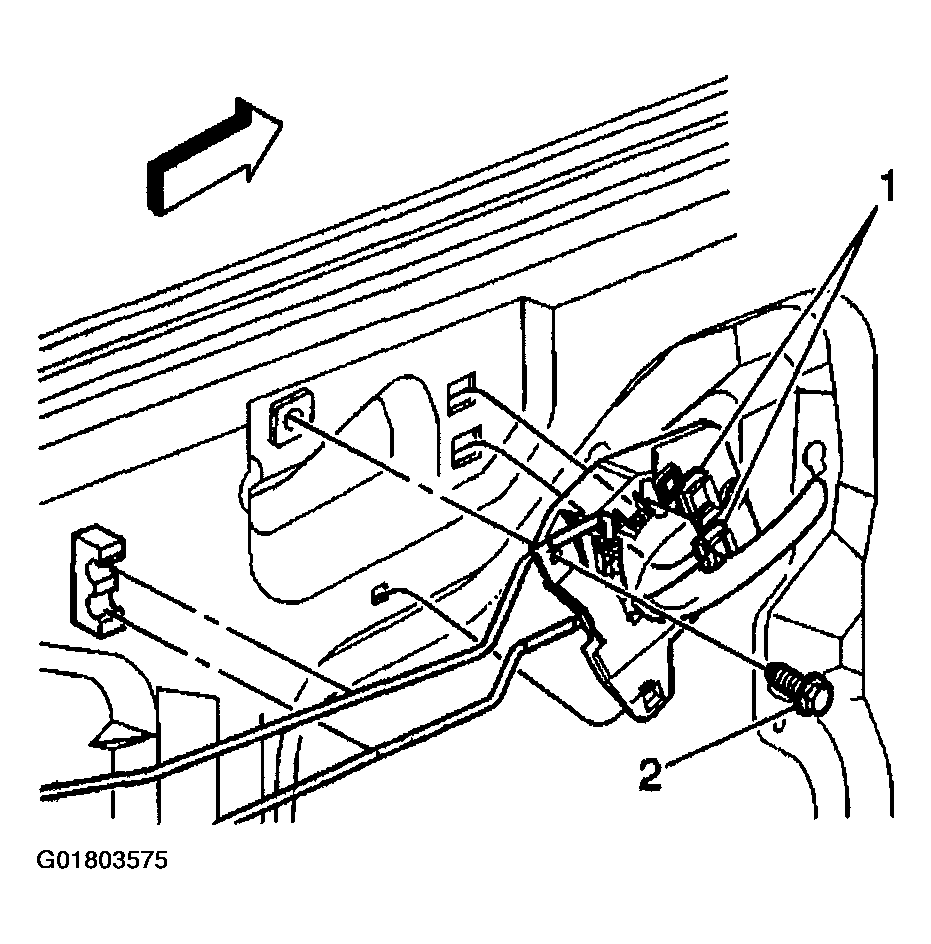

    Fig 3: Releasing Retainer Tabs
    G01803575Courtesy of GENERAL MOTORS CORP.
  7. Tilt the handle and remove the rods from the handle in the following sequence:
    1. 7.1. Lock knob rod (1)
    2. 7.2. Handle lever rod (2)

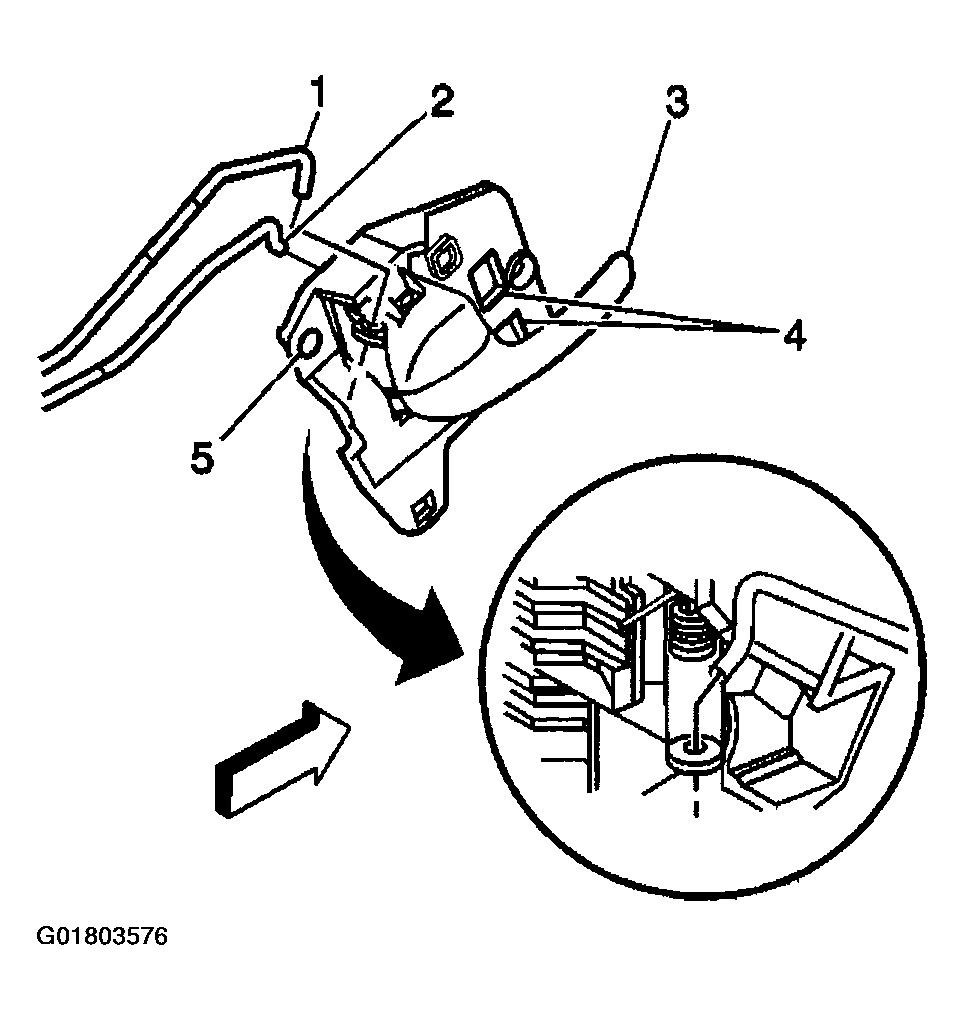

    Fig 4: Removing Rods From Handle
    G01803576Courtesy of GENERAL MOTORS CORP.
