Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Remove the door module. Refer to Door Control Module Replacement .
  3. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door .
  4. Remove the door window inner belt molding. Refer to Sealing Strip Replacement - Rear Door Window Belt Inner .
  5. Remove the door window outer belt molding. Refer to Sealing Strip Replacement - Rear Door Window Belt Outer .
  6. Remove the rear door window. Refer to Window Replacement - Rear Door .

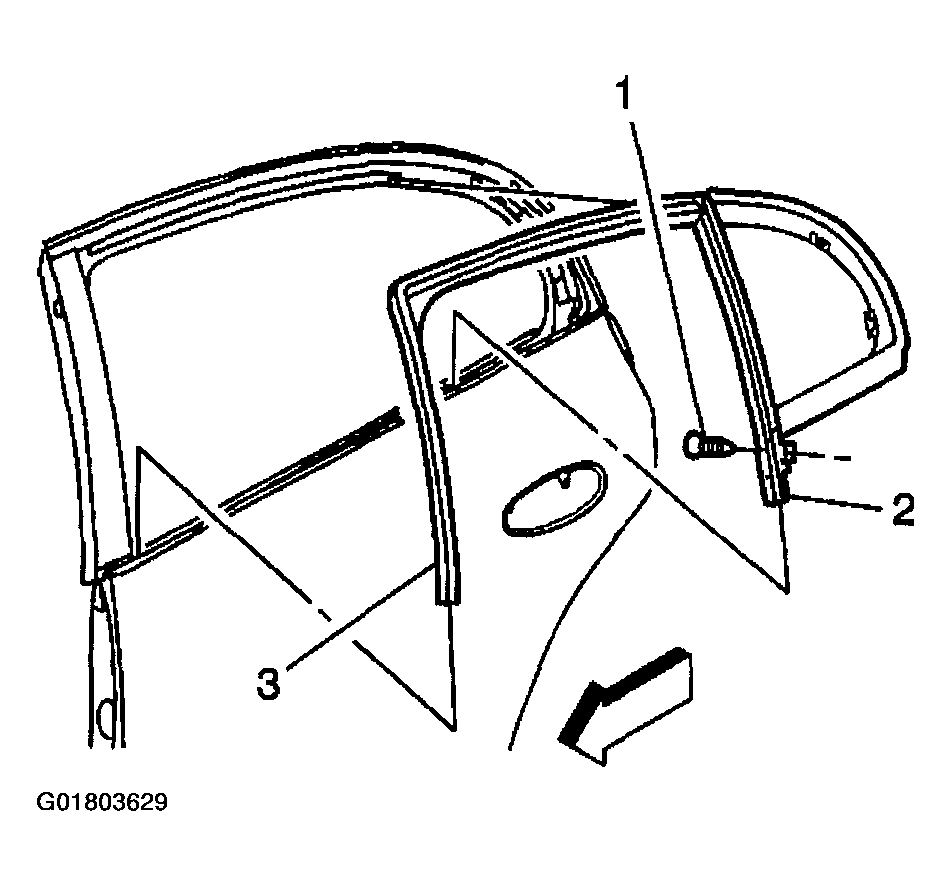

  7. Grasp the front, lower end of the window weatherstrip (3) and pull back to reveal door applique fasteners.
    8. Fig 1: Removing Window Weatherstrip
    G01803629Courtesy of GENERAL MOTORS CORP.

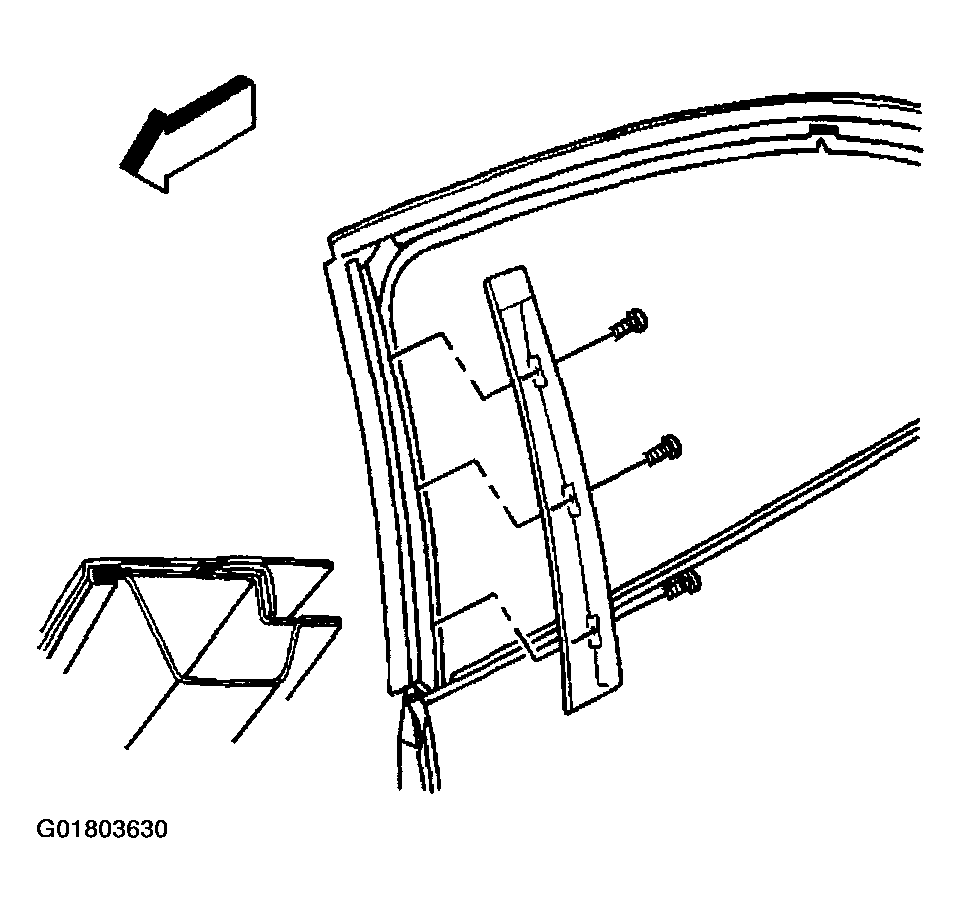

  8. Remove the applique fasteners.
  9. Slide the applique straight back to remove.
    Fig 2: Removing Door Frame Applique
    G01803630Courtesy of GENERAL MOTORS CORP.
