Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Put the window in the down position.
  2. Grasp the window weatherstrip at the lower rear corner.
  3. Pull up and forward to release the window weatherstrip from the door frame far enough to expose the door applique fasteners.

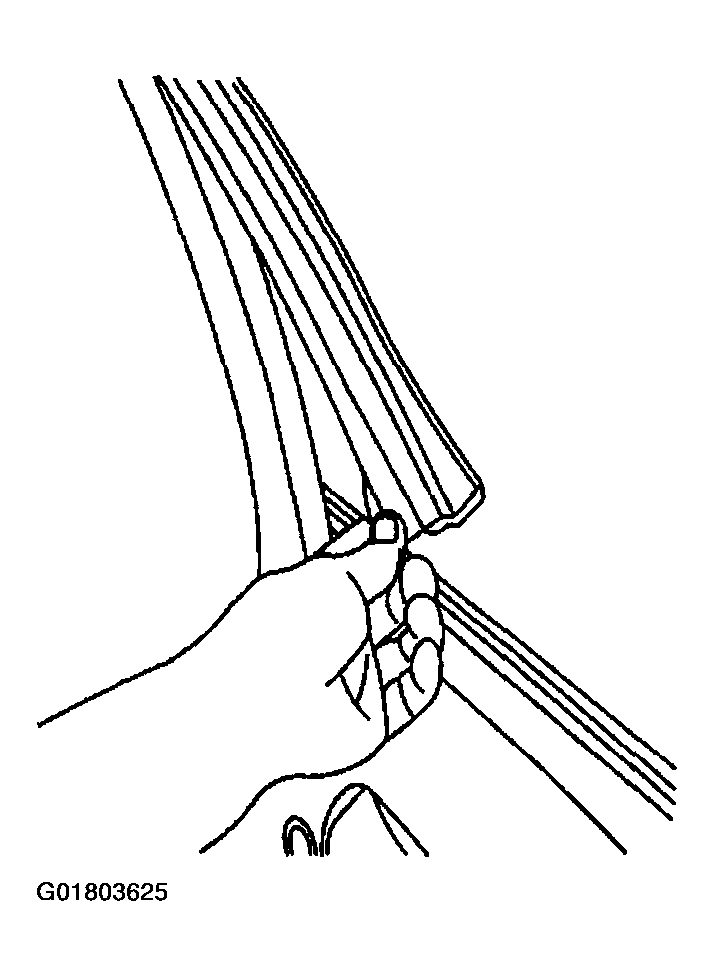

    Fig 1: Removing Window Weatherstrip
    G01803625Courtesy of GENERAL MOTORS CORP.
  4. Remove the door applique fasteners.
  5. Remove the door applique by sliding forward.

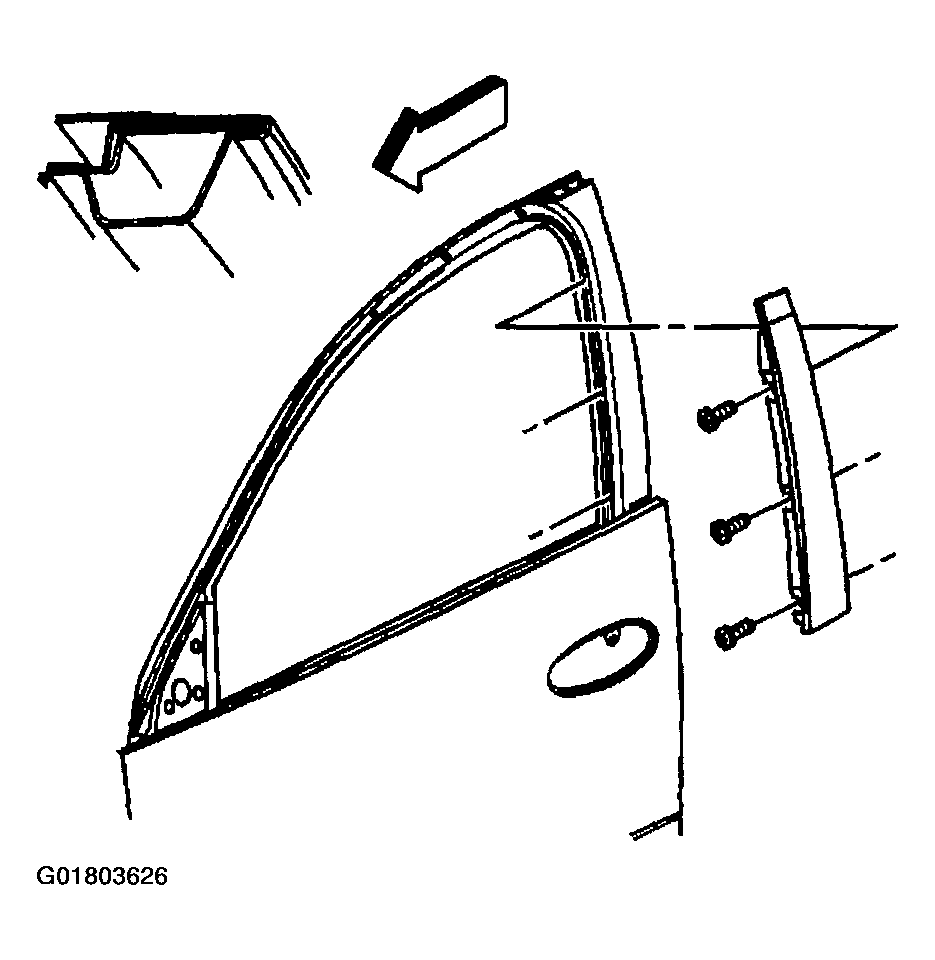

    Fig 2: Removing Door Applique
    G01803626Courtesy of GENERAL MOTORS CORP.
