Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the door.
  2. Remove the check link to pillar fasteners.

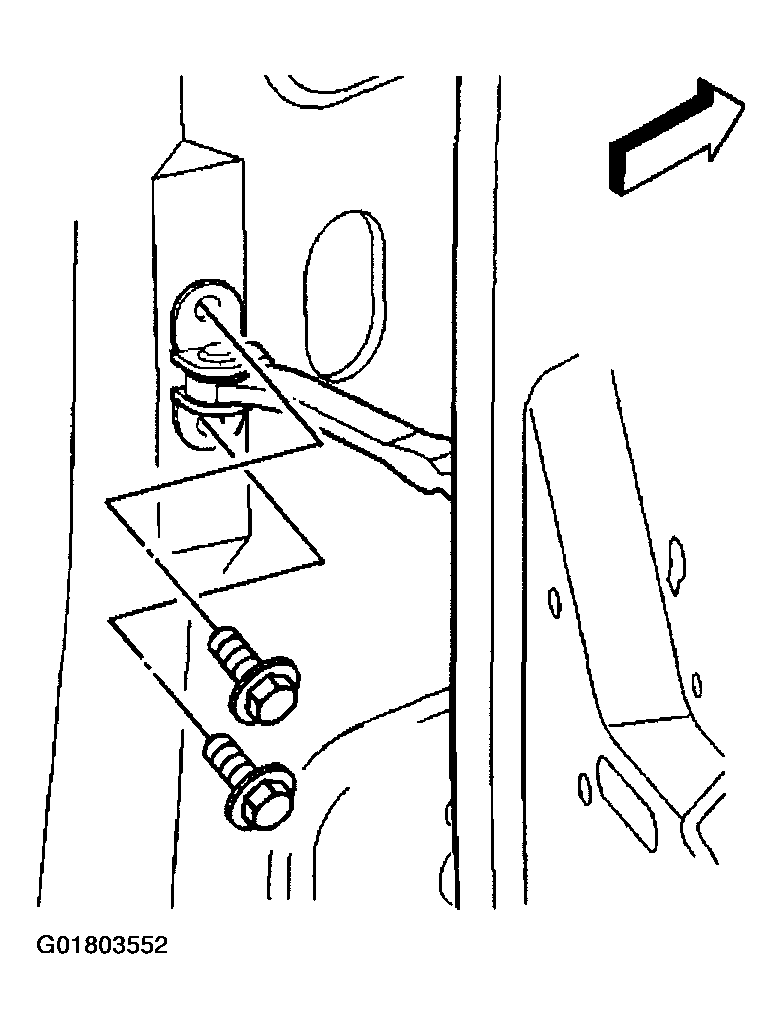

    3. Fig 1: Removing Check Link To Pillar Fasteners
    G01803552Courtesy of GENERAL MOTORS CORP.
  3. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door  or Trim Panel Replacement - Side Rear Door  .
  4. Remove the door module. Refer to Door Control Module Replacement .
  5. Remove the water deflector. Refer to Water Deflector Replacement - Front Door  or Water Deflector Replacement - Rear Door  .
  6. Remove the close-out grommet.

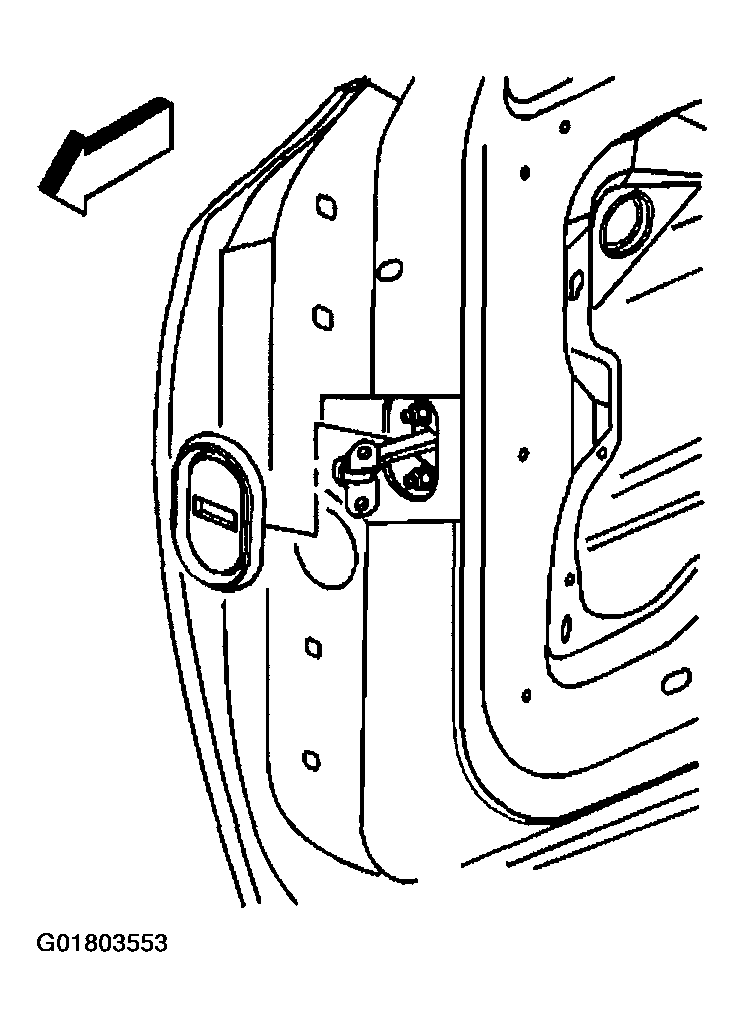

    Fig 2: Removing Close-Out Grommet
    G01803553Courtesy of GENERAL MOTORS CORP.
  7. Remove the check link to door fasteners.
  8. Remove the door check link through the inside of the door.

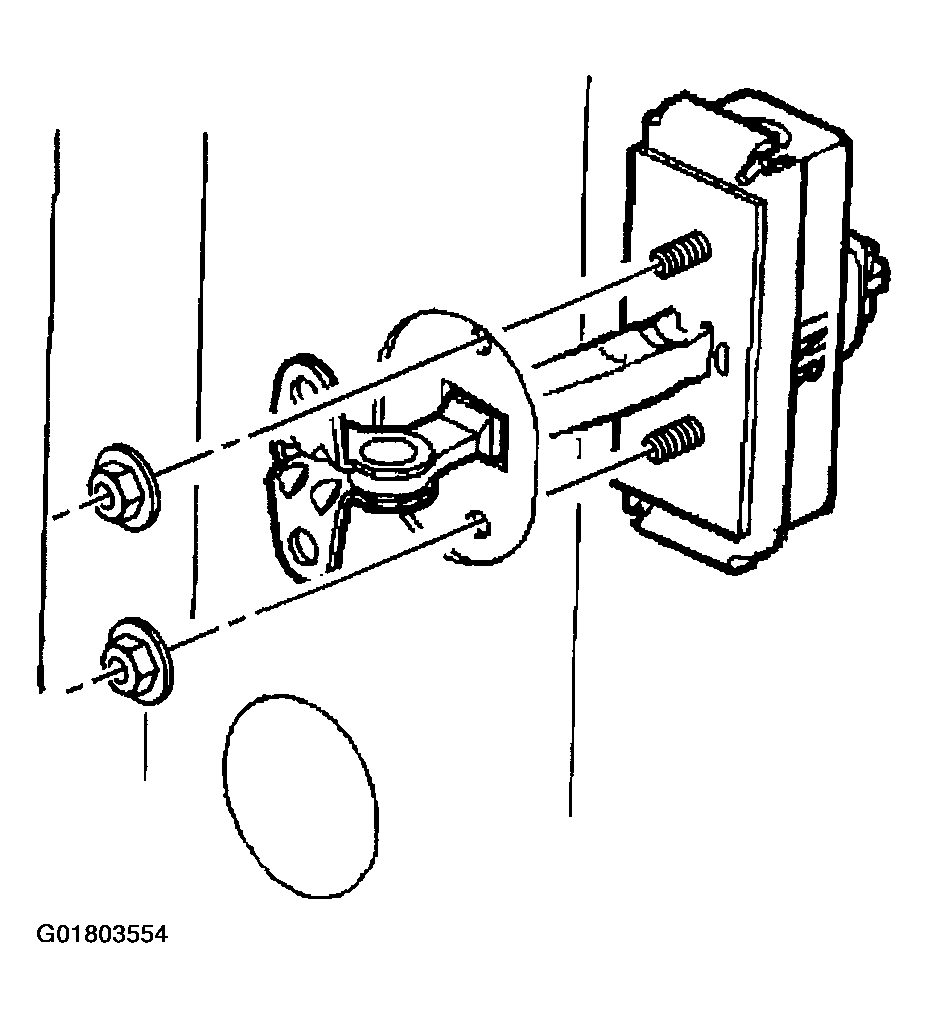

    Fig 3: Removing Door Check Link
    G01803554Courtesy of GENERAL MOTORS CORP.
