Test Description

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

The Numbers below refer to the step numbers on the diagnostic table.

2. This step determines if this is the correct chart for the symptom.
6. This step determines if a door module is internally shorted to ground, or the door module battery positive voltage circuit, associated with front door modules connector C3 and rear door modules connector C2, is shorted to ground.

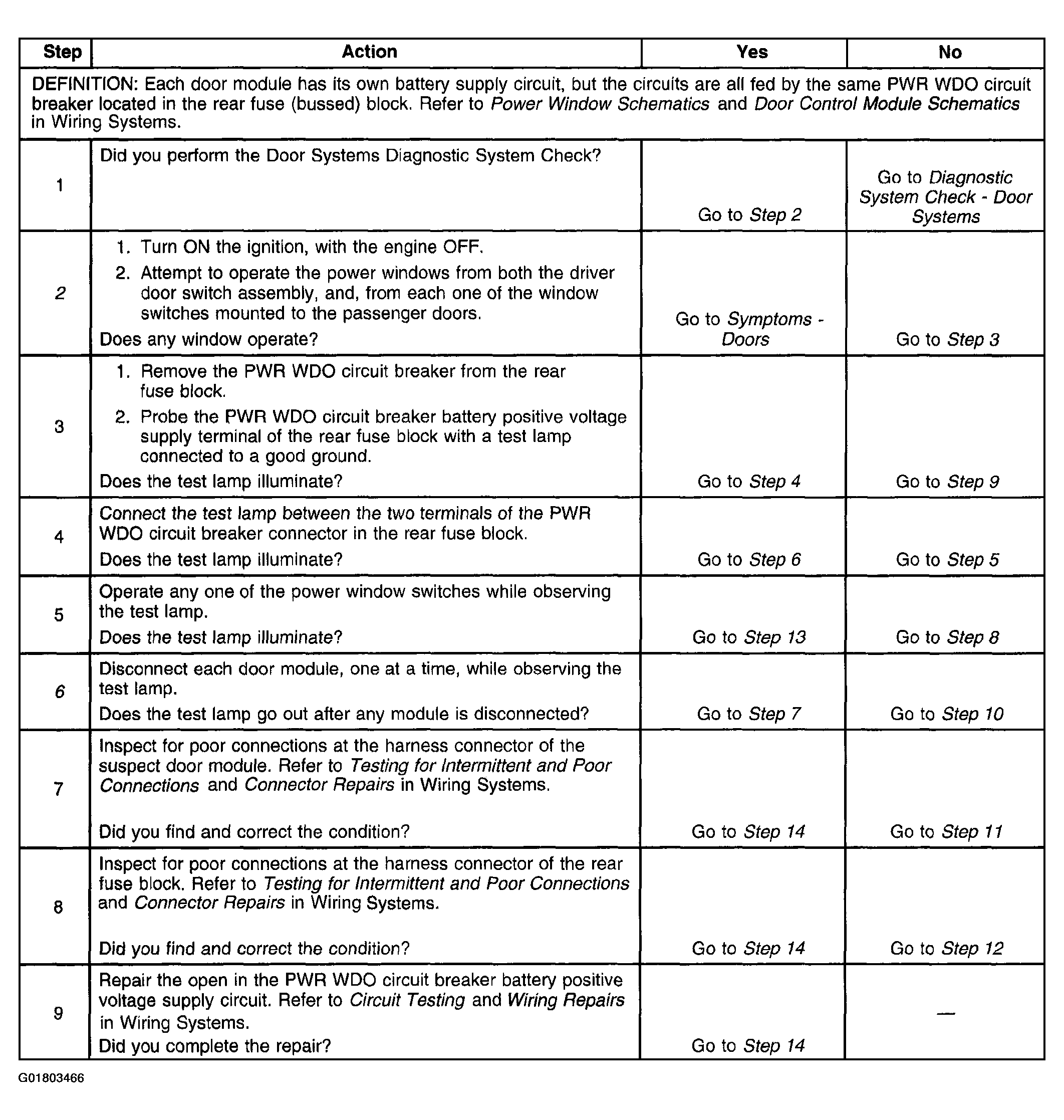

Fig 1: Power Windows Inoperative - All (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

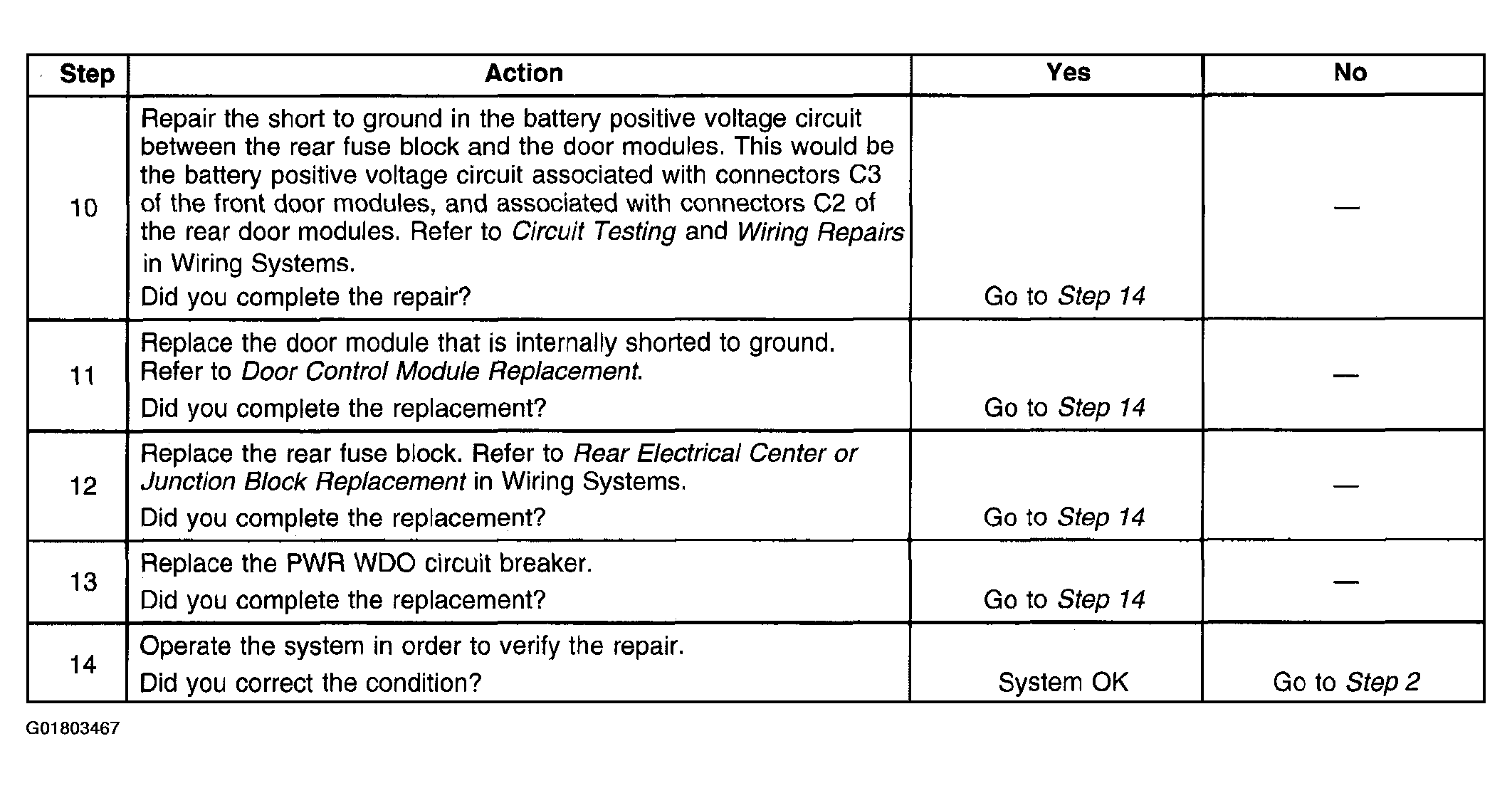

Fig 2: Power Windows Inoperative - All (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
