Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open and support the hood.
  2. Starting at the center of the weatherstrip, pull the weatherstrip forward and pull the weatherstrip off of the flange.

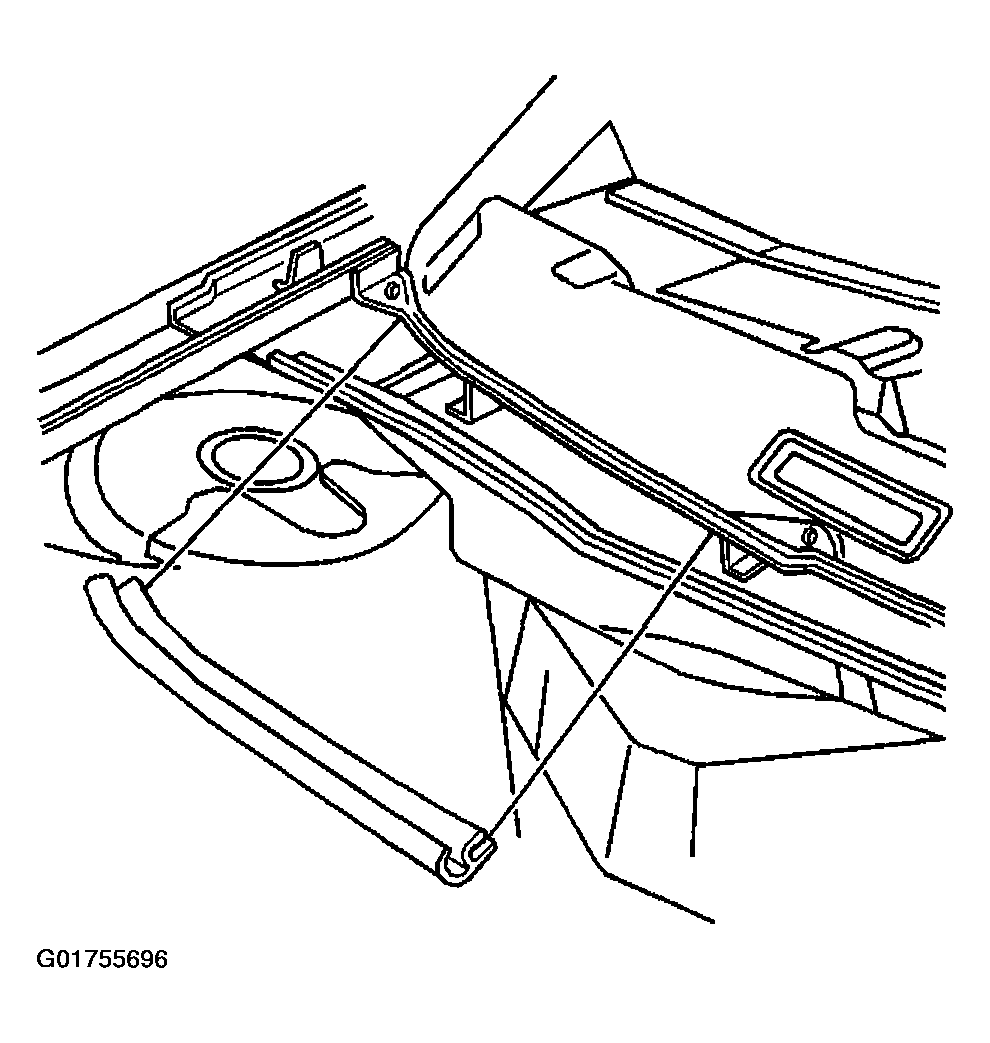

    Fig 1: Identifying Plenum-To-Hood Seal
    G01755696Courtesy of GENERAL MOTORS CORP.
  3. Remove the weatherstrip from the flange.
