Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Mark the upper hood hinge location to the hood using a grease pencil.
  3. Remove the Assist rod from the hood. Refer to Assist Rod Replacement - Hood .
  4. Remove the hood hinge to hood bolts, with an assistant.

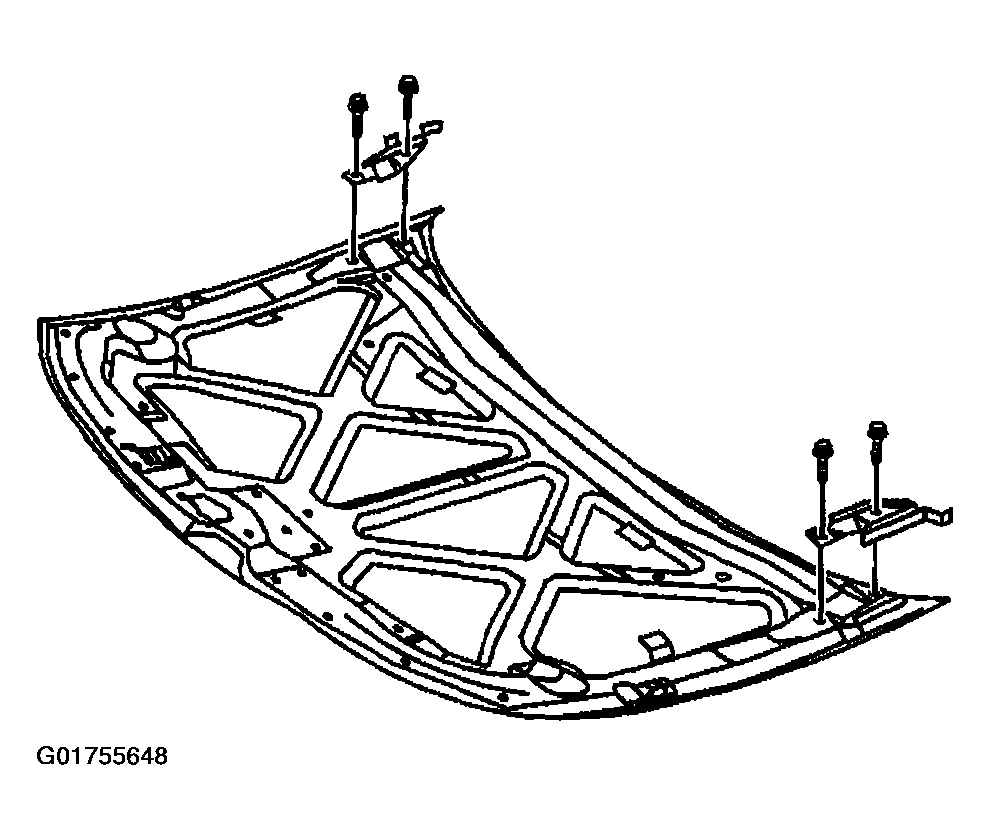

    5. Fig 1: Identifying Hood Hinge-To-Hood Bolts
    G01755648Courtesy of GENERAL MOTORS CORP.
  5. Remove the hood from the vehicle, with an assistant.
