Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT .
  2. Remove the bolts from the hood latch release handle.

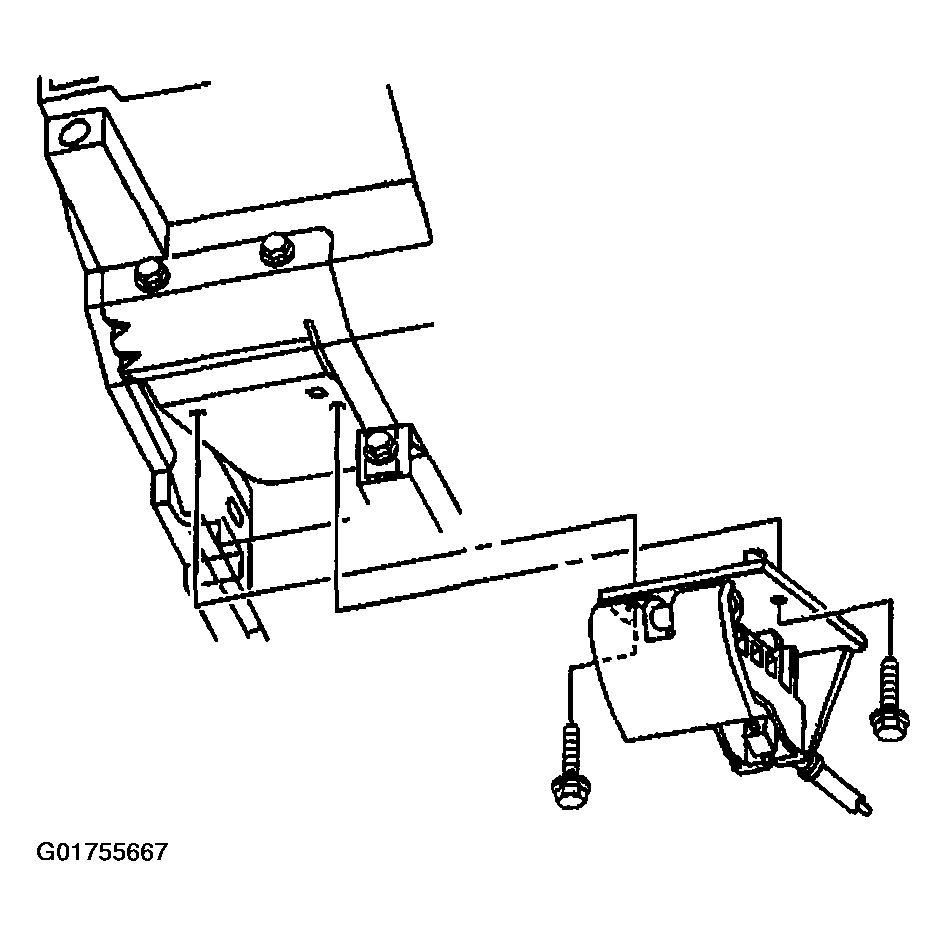

    Fig 1: Identifying Hood Latch Release Handle & Bolts
    G01755667Courtesy of GENERAL MOTORS CORP.
  3. Remove the hood release cable from the hood release handle.

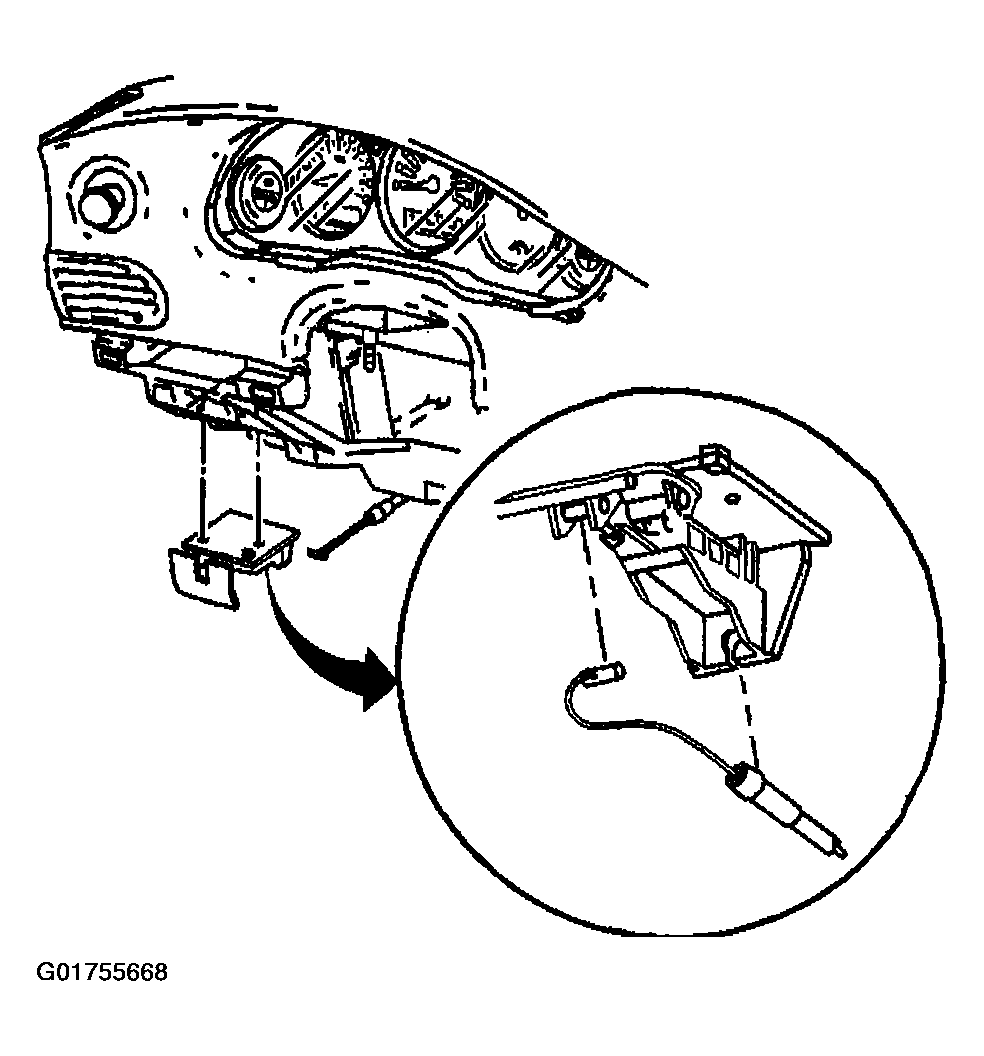

    4. Fig 2: Identifying Hood Release Cable
    G01755668Courtesy of GENERAL MOTORS CORP.
  4. Remove the hood release handle from the instrument panel.
