Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood release cable to the hood release handle.

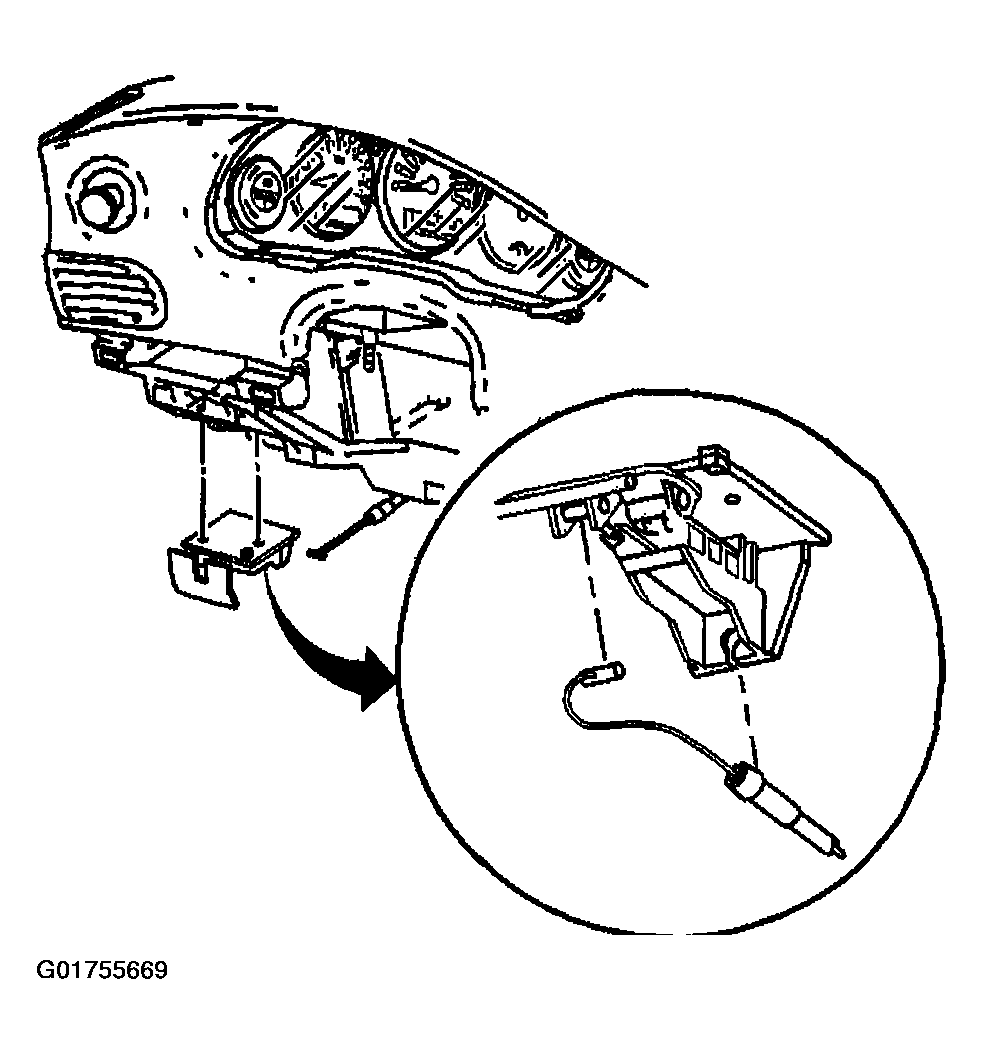

    Fig 1: Identifying Hood Release Cable
    G01755669Courtesy of GENERAL MOTORS CORP.
  2. Install the hood release handle to the instrument panel.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the bolts to the hood latch release handle. Tighten the bolts to 2 N.m (18 lb in).

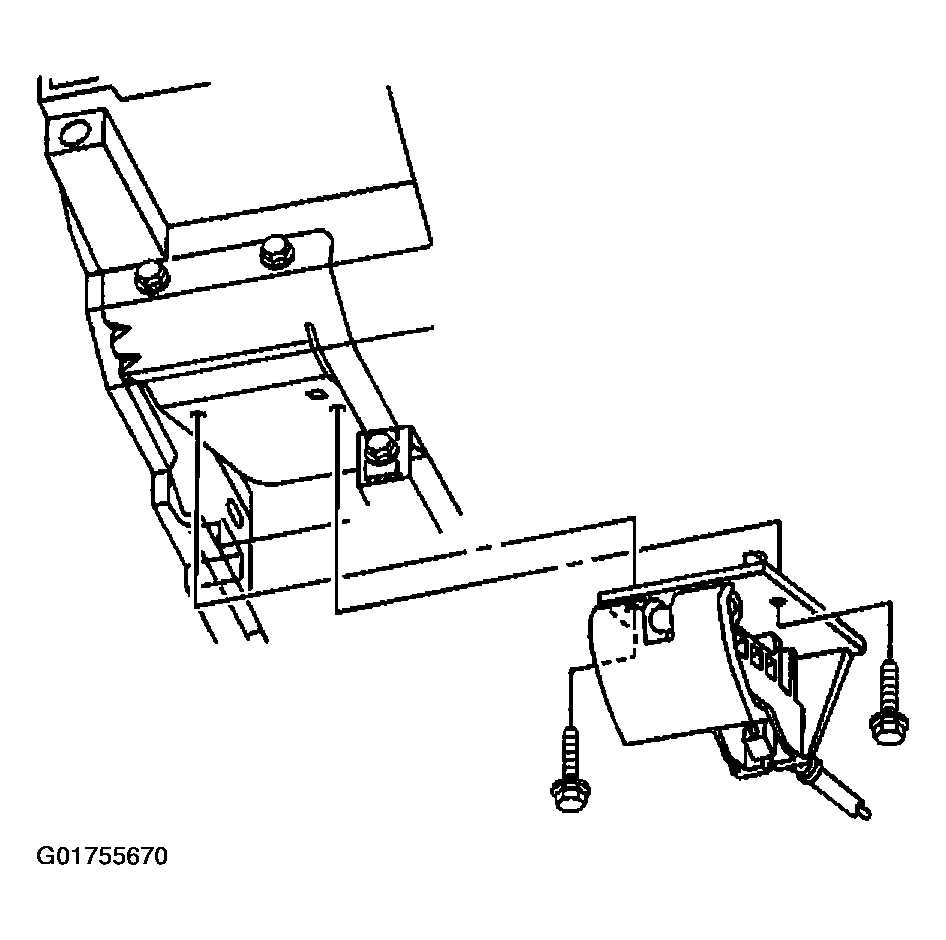

    4. Fig 2: Identifying Hood Latch Release Handle & Bolts
    G01755670Courtesy of GENERAL MOTORS CORP.
  4. Install the instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT .
