Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front fender liner. Refer to Front Fender Liner Replacement .
  2. Pull the front fender insulator tabs off of the mounting studs.

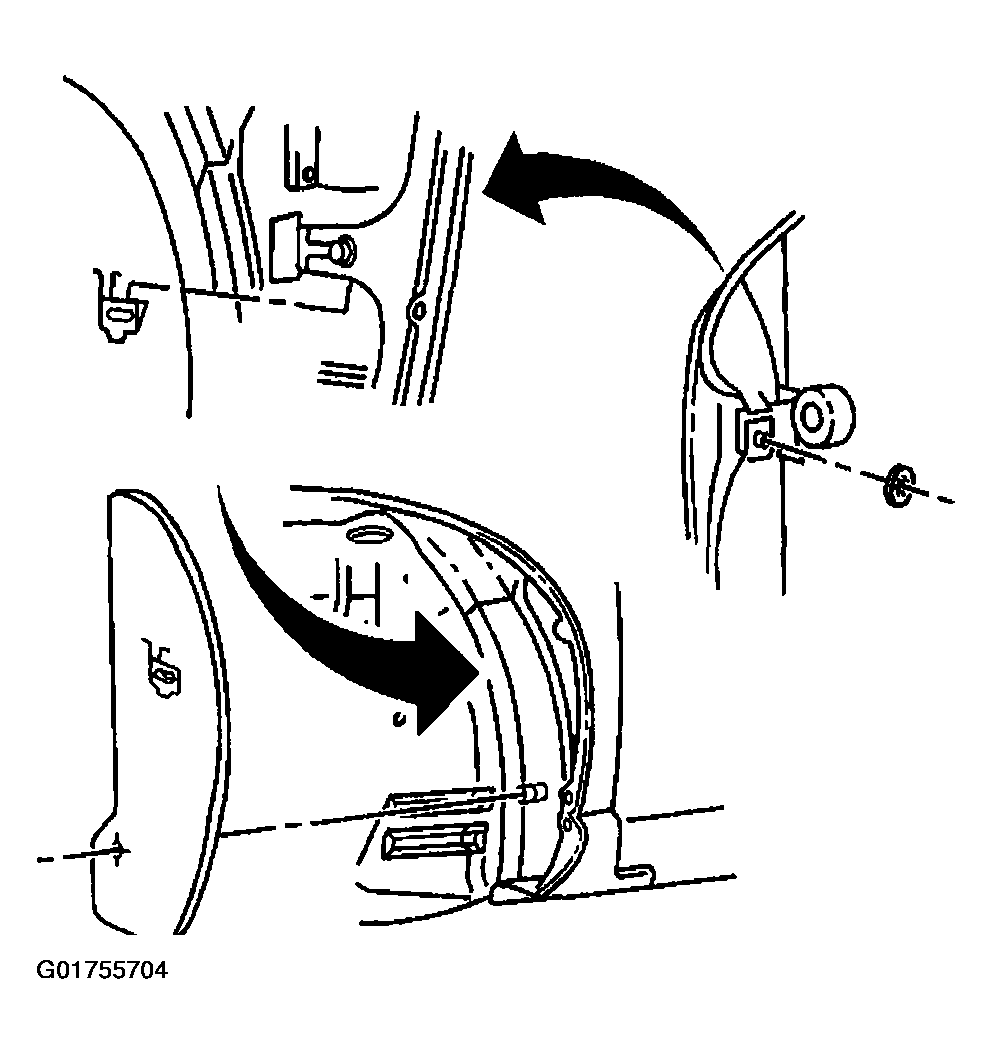

    3. Fig 1: Identifying Front Fender Sound Insulator
    G01755704Courtesy of GENERAL MOTORS CORP.
  3. Remove the front fender insulator from the inner fender.
