Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open and support the hood.
  2. Remove the front fender upper diagonal brace-to-inner fender bolt.

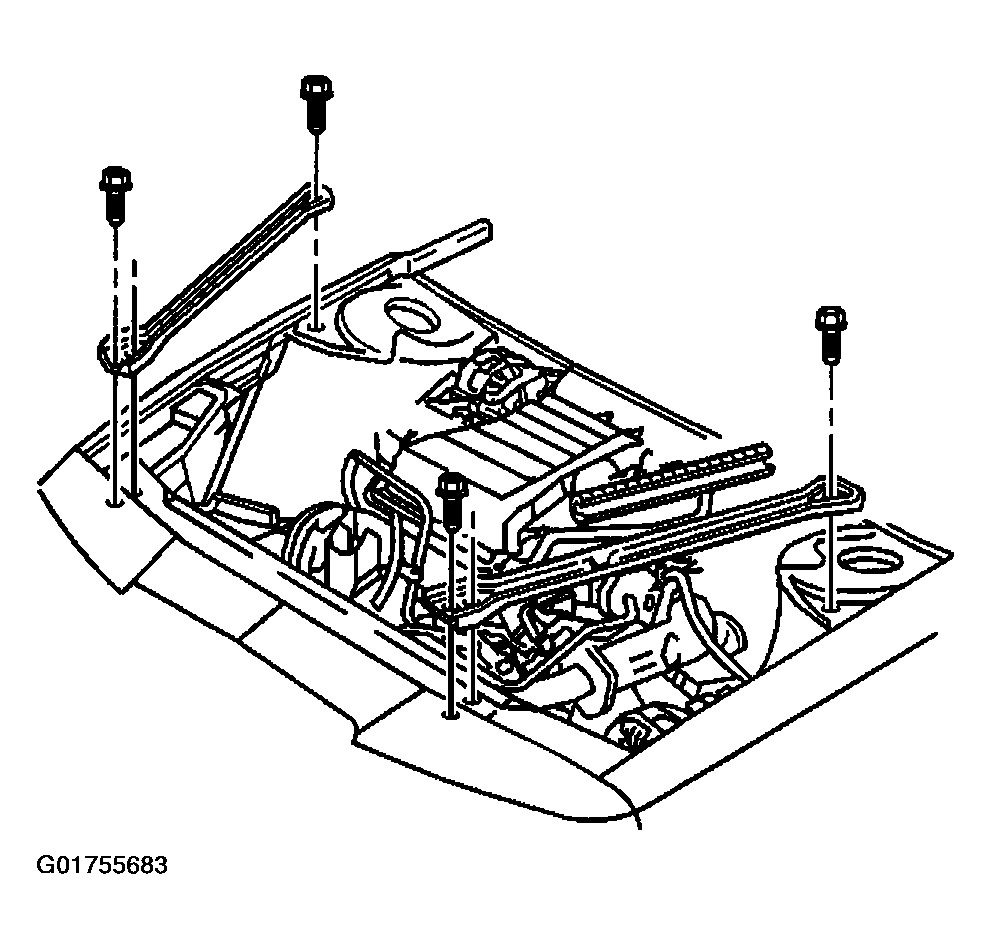

    3. Fig 1: Identifying Front Fender Upper Diagonal Brace
    G01755683Courtesy of GENERAL MOTORS CORP.
  3. Remove the front fender upper diagonal brace-to-radiator support bolts.
  4. Remove the front fender upper diagonal brace.
