Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front fender upper diagonal brace.

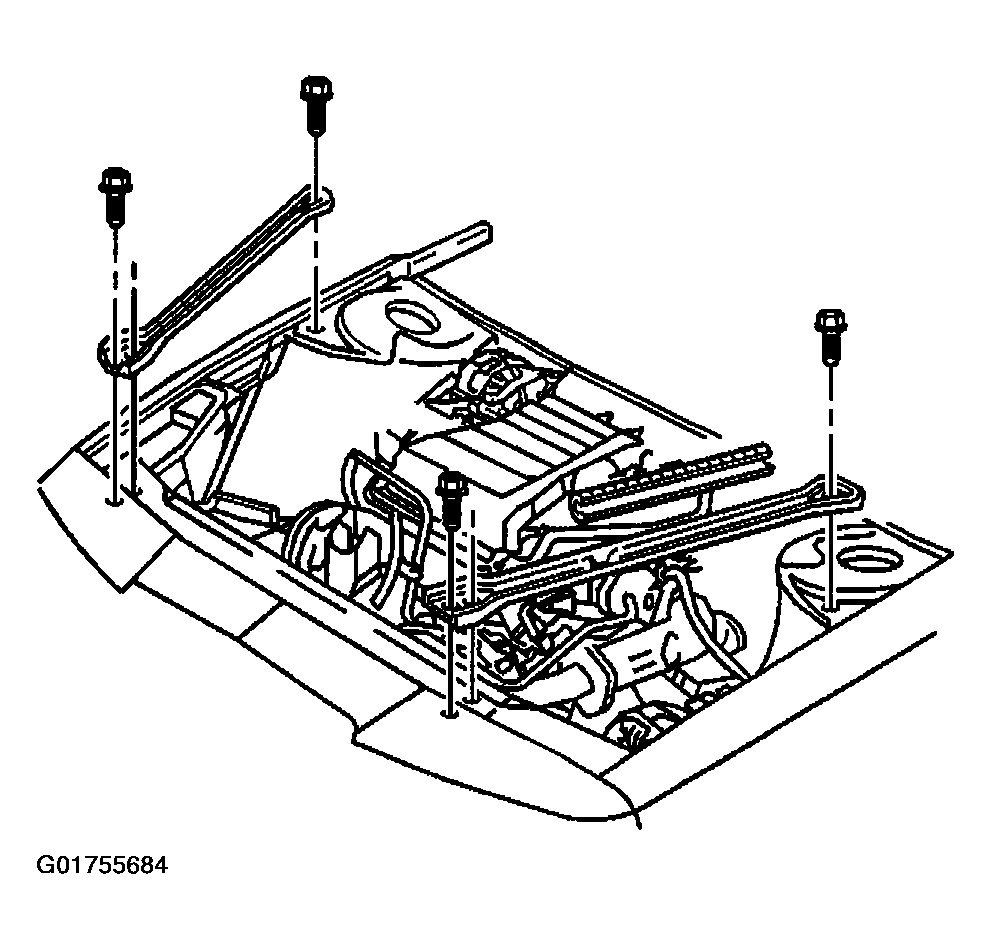

    Fig 1: Identifying Front Fender Upper Diagonal Brace
    G01755684Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolts to the front fender upper diagonal brace at the radiator support. Tighten the bolts to 47 N.m (35 lb ft).
  3. Install the front fender diagonal brace-to-inner fender bolt. Tighten the bolt to 47 N.m (35 lb ft).
  4. Close the hood.
