Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery. Refer to BATTERY REPLACEMENT .
  2. Remove the battery tray screws.

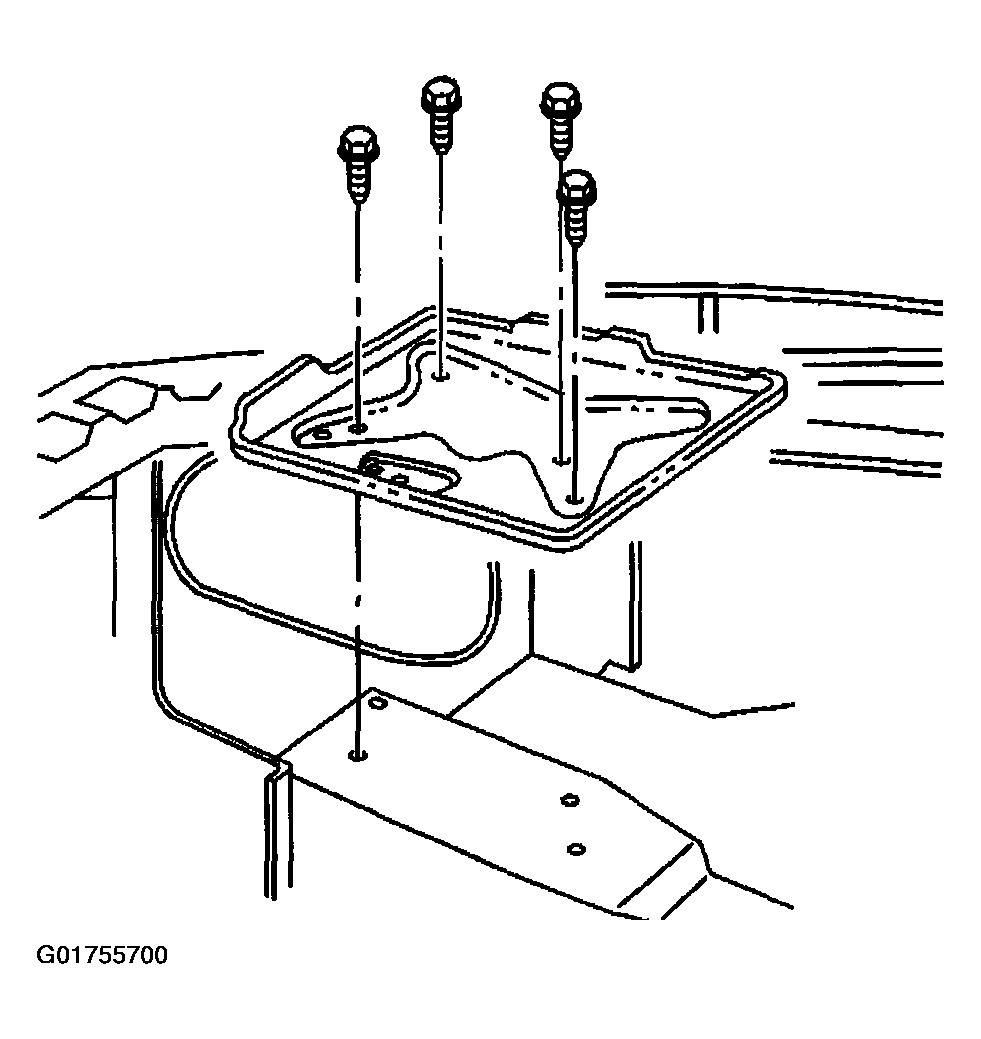

    3. Fig 1: Identifying Battery Tray
    G01755700Courtesy of GENERAL MOTORS CORP.
  3. Remove the battery tray.
