Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air inlet grille to the vehicle.

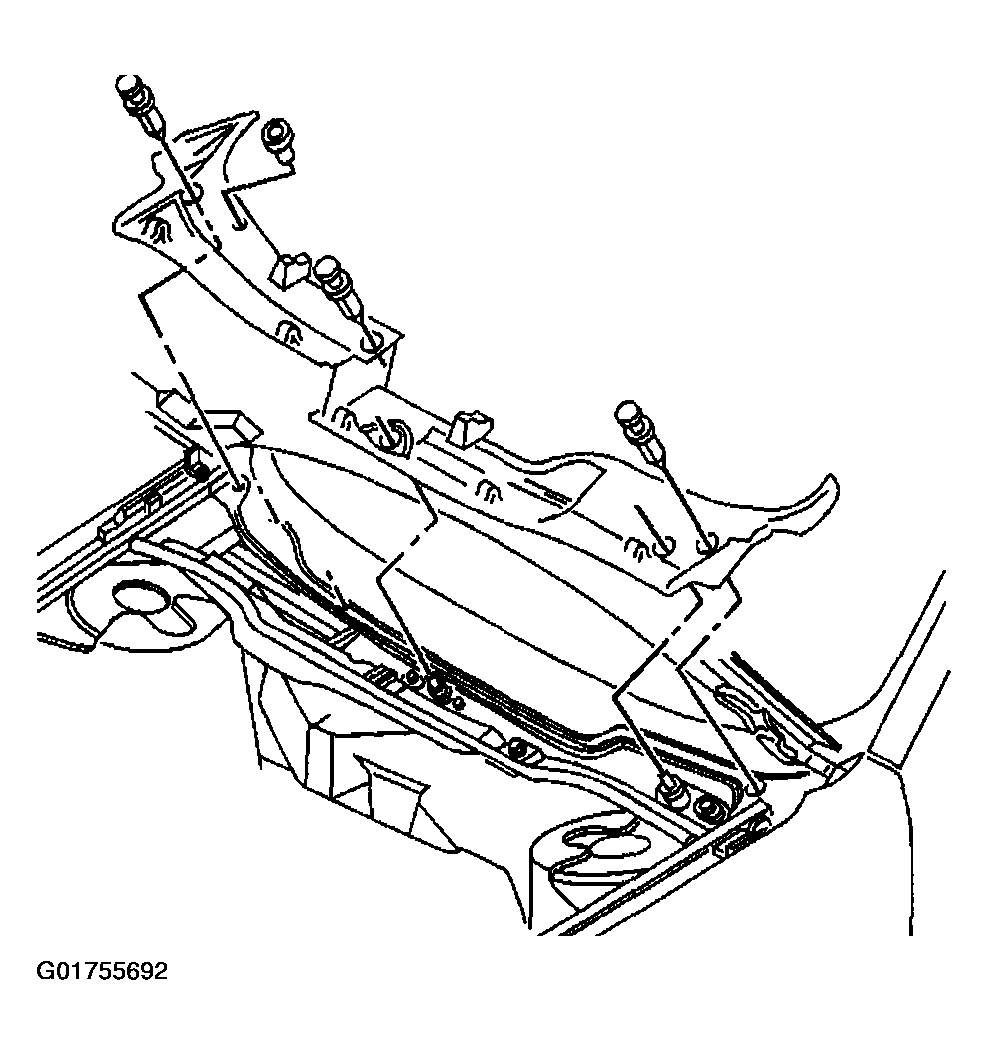

    2. Fig 1: Identifying Air Inlet Grille Panel
    G01755692Courtesy of GENERAL MOTORS CORP.
  2. Install the push-in retainers to the air inlet grille.
  3. Install the large plastic screws to the air inlet grille.
  4. Install the windshield washer hose to the air inlet grille.
  5. Close the hood.

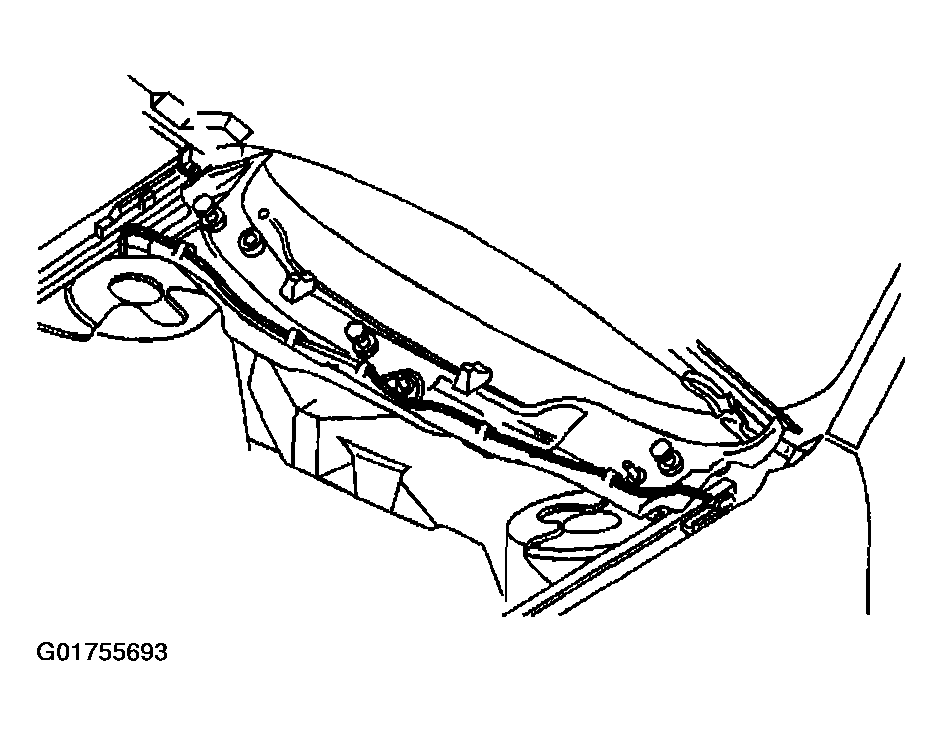

    Fig 2: Identifying Windshield Washer Hose
    G01755693Courtesy of GENERAL MOTORS CORP.
  6. Install the wiper arms. Refer to WIPER ARMS .
