Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the rear compartment trim. Refer to COMPARTMENT TRIM PANEL REPLACEMENT--REAR .
  2. Disconnect the speaker electrical connectors (1).
  3. Remove the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT -- REAR WINDOW SHELF .

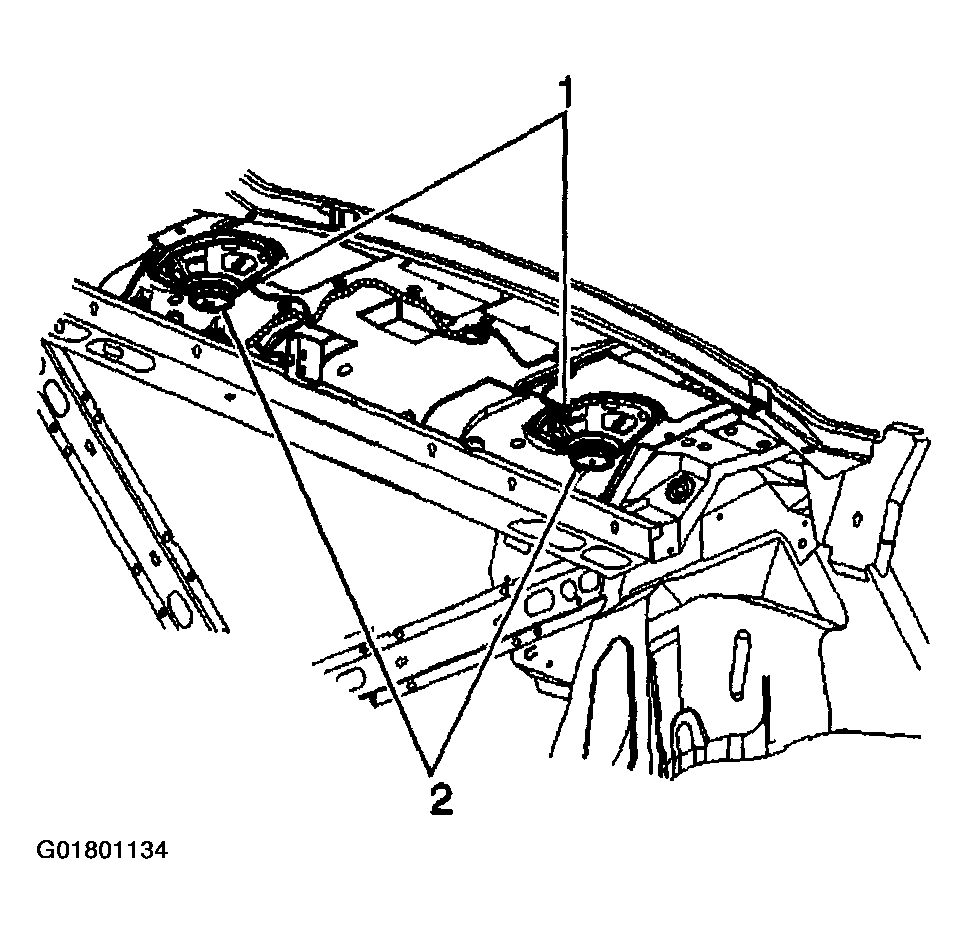

    Fig 1: Disconnecting Speaker Electrical Connectors
    G01801134Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear speaker fasteners.
  5. Remove the rear speakers from the vehicle.

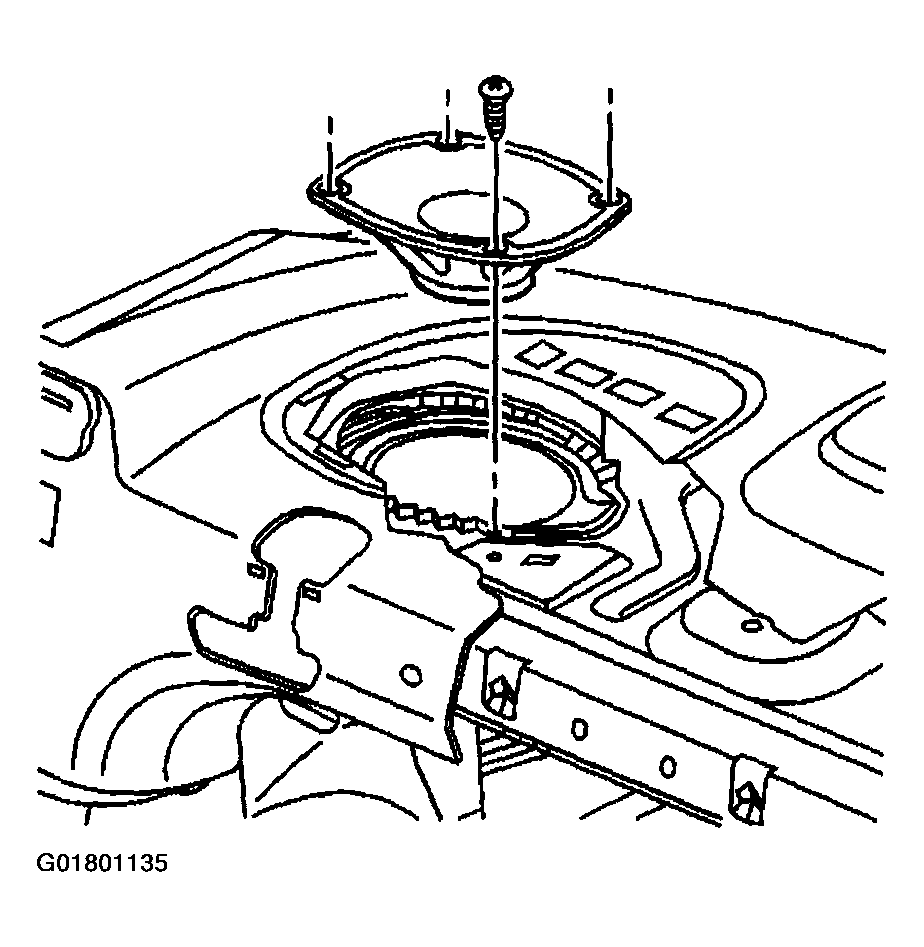

    Fig 2: Removing Rear Speakers
    G01801135Courtesy of GENERAL MOTORS CORP.
