Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. Refer to TRIM PANEL REPLACEMENT -- SIDE REAR DOOR .
  2. Disconnect the electrical connector from the rear door speaker.
  3. Remove the rear door speaker fasteners.
  4. Remove the rear door speaker.

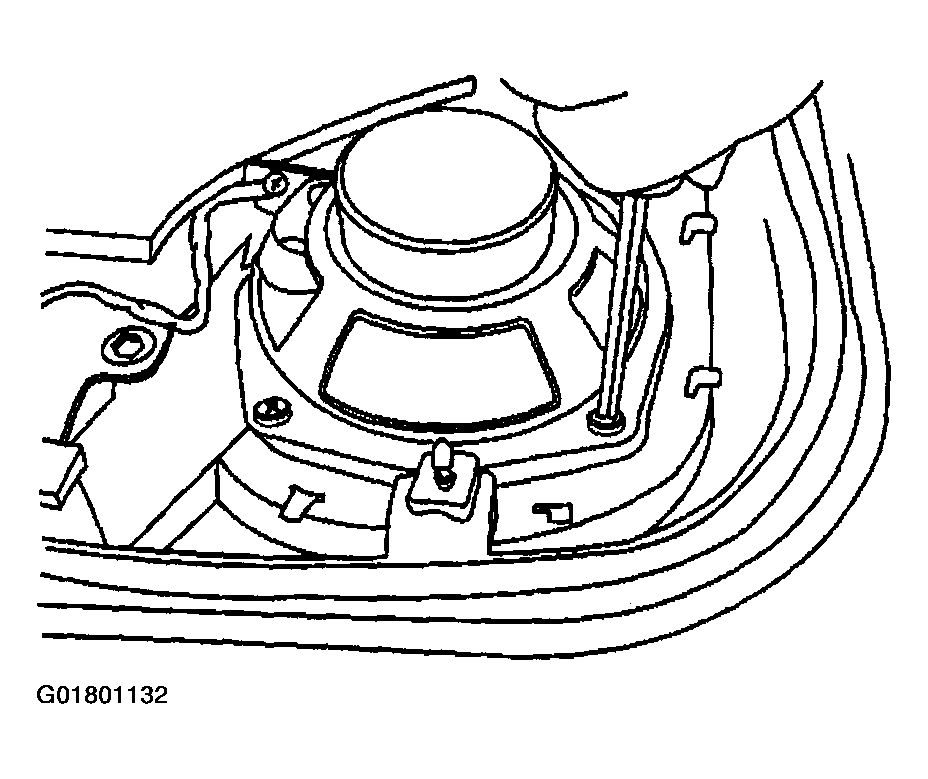

    Fig 1: Removing Rear Door Speaker
    G01801132Courtesy of GENERAL MOTORS CORP.
