Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper door trim panel. Refer to TRIM PANEL REPLACEMENT -- SIDE FRONT DOOR .
  2. Disconnect the upper door speaker electrical connector from the door harness.
  3. Remove the upper door speaker/grille assembly by gently prying it from the upper door trim panel.

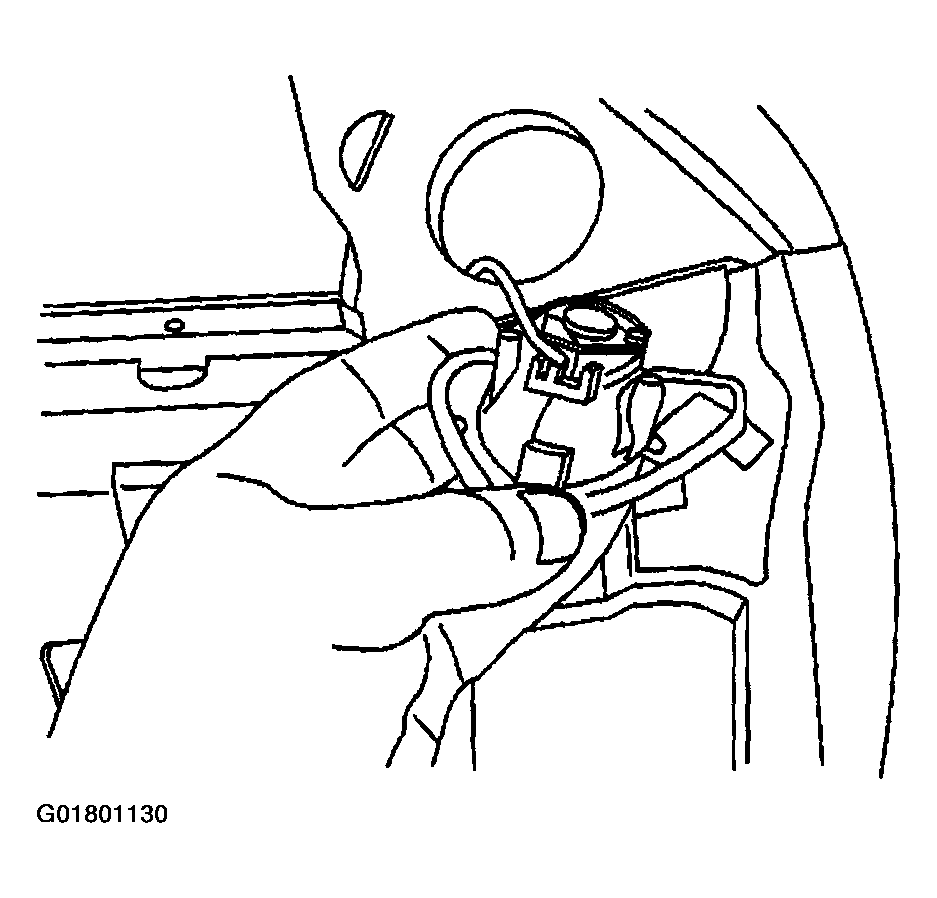

    Fig 1: Removing Upper Front Speaker
    G01801130Courtesy of GENERAL MOTORS CORP.
