Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the global positioning sensor antenna lead (1).
  2. Install the receiver (2) into the instrument panel.
  3. Ensure the spring clips are fully engaged.
  4. Install the instrument panel center trim panel. Refer to TRIM PANEL REPLACEMENT -- IP CENTER .

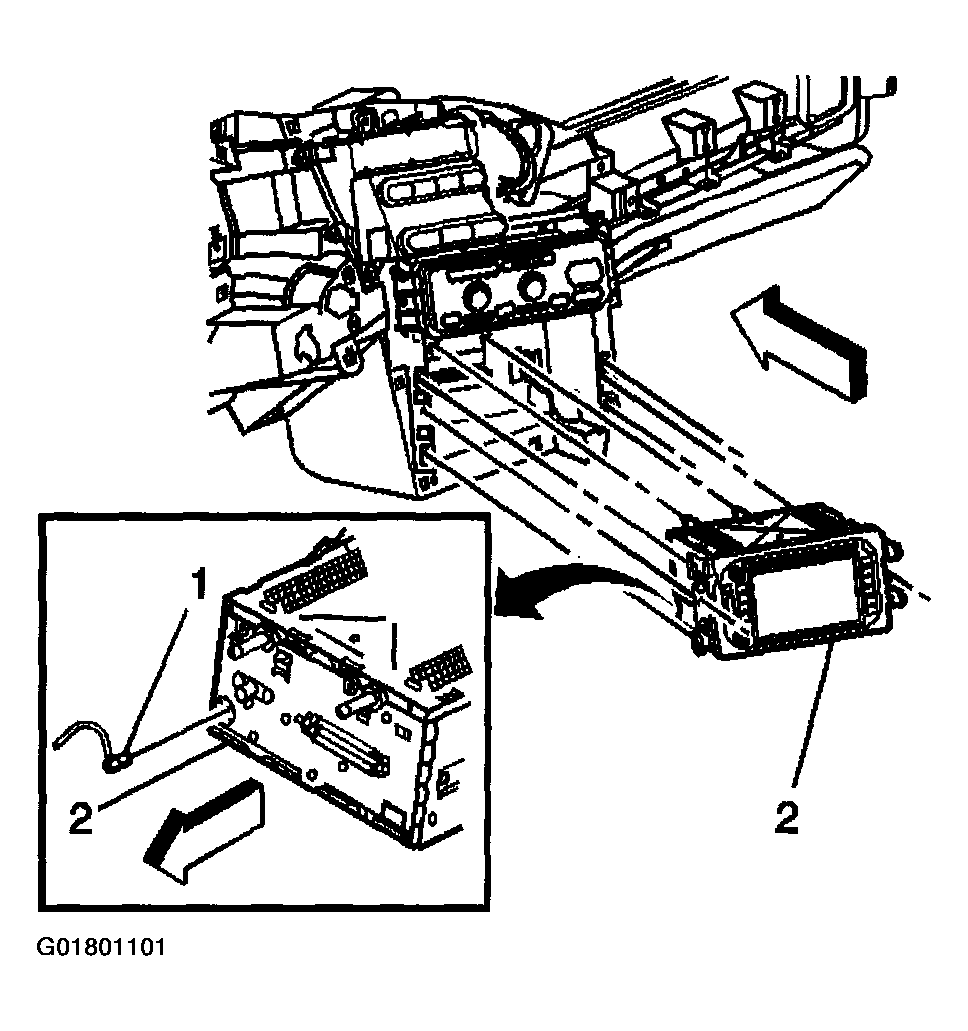

    Fig 1: Installing Radio (W/UM8)
    G01801101Courtesy of GENERAL MOTORS CORP.
