Test Description

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 2. This step verifies that the steering wheel convenience switch is stuck. The convenience switches operate in the 123-247 count range. The value given is the normal condition that exists when no switch is activated.

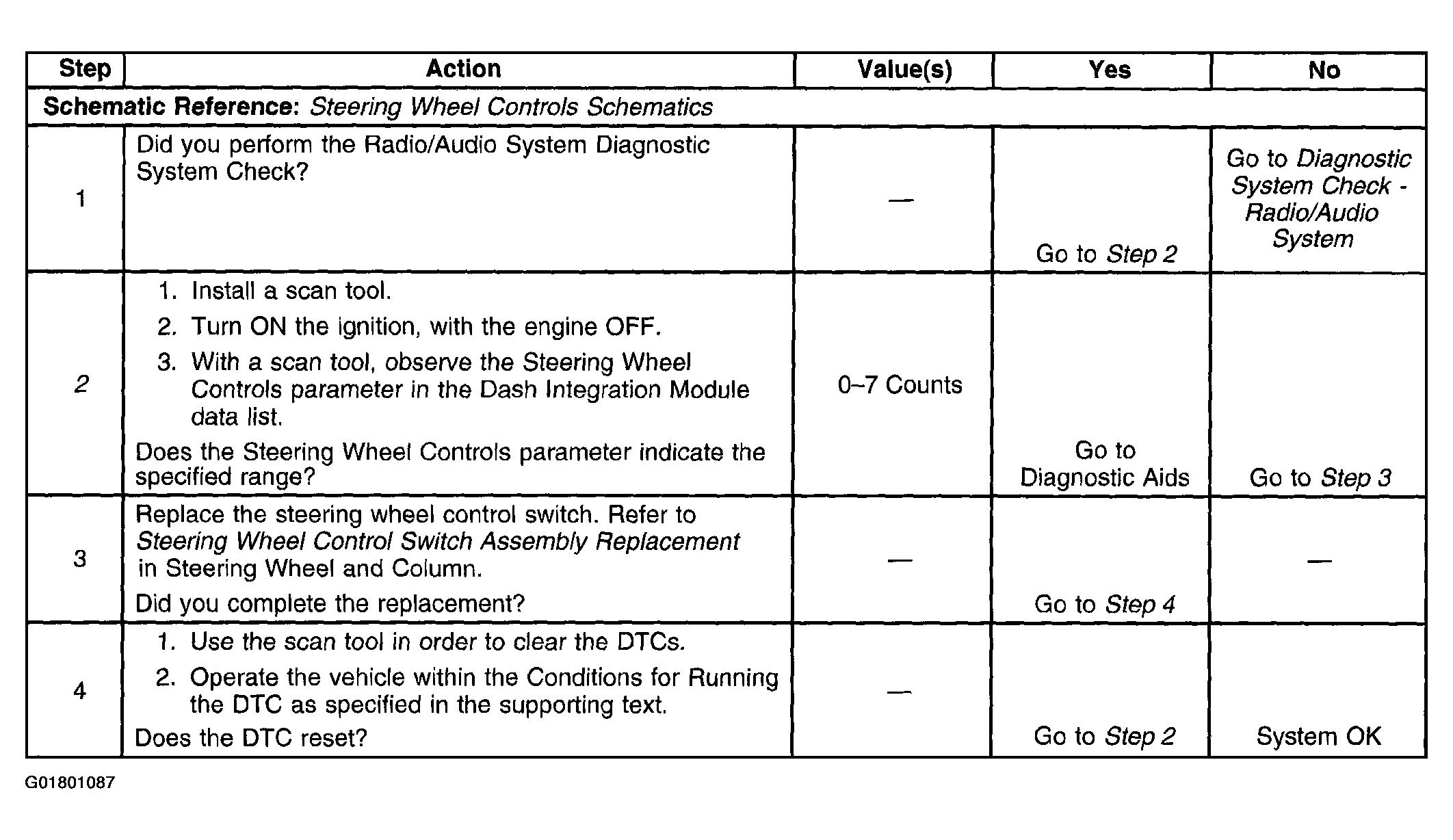

Fig 1: DTC B2810
G01801087Courtesy of GENERAL MOTORS CORP.
