Scan Tool Data List

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

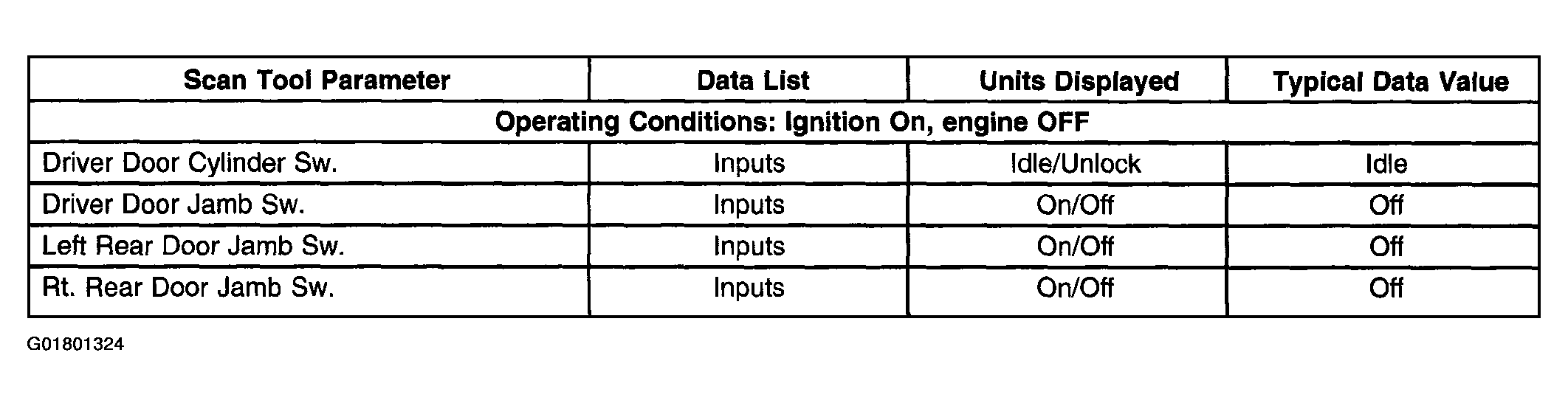

Fig 1: Drivers Door Module (DDM)

Courtesy of GENERAL MOTORS CORP.

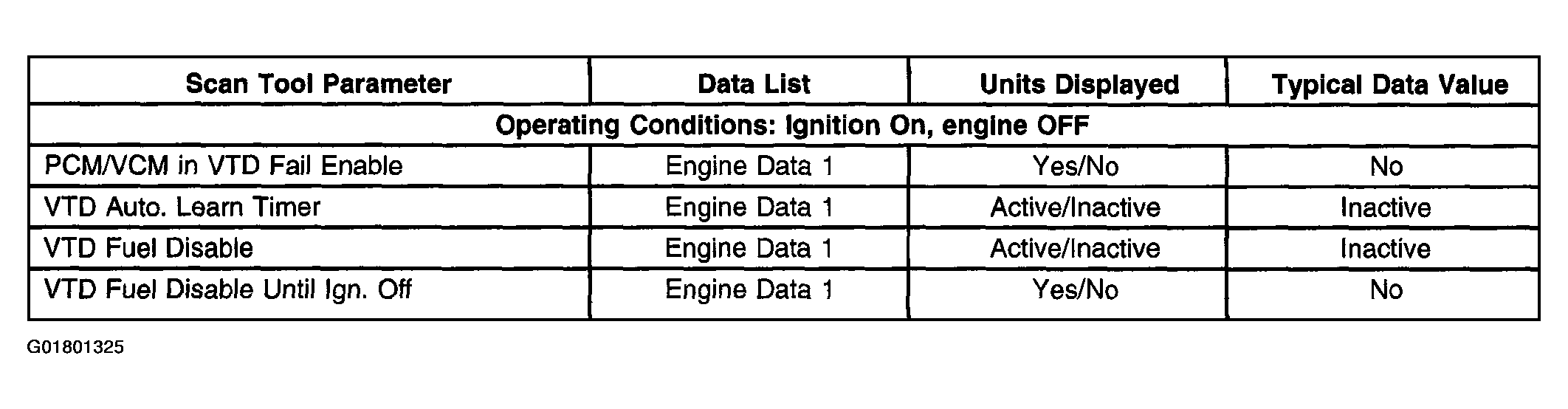

Fig 2: Powertrain Control Module (PCM) - 3.5L

Courtesy of GENERAL MOTORS CORP.

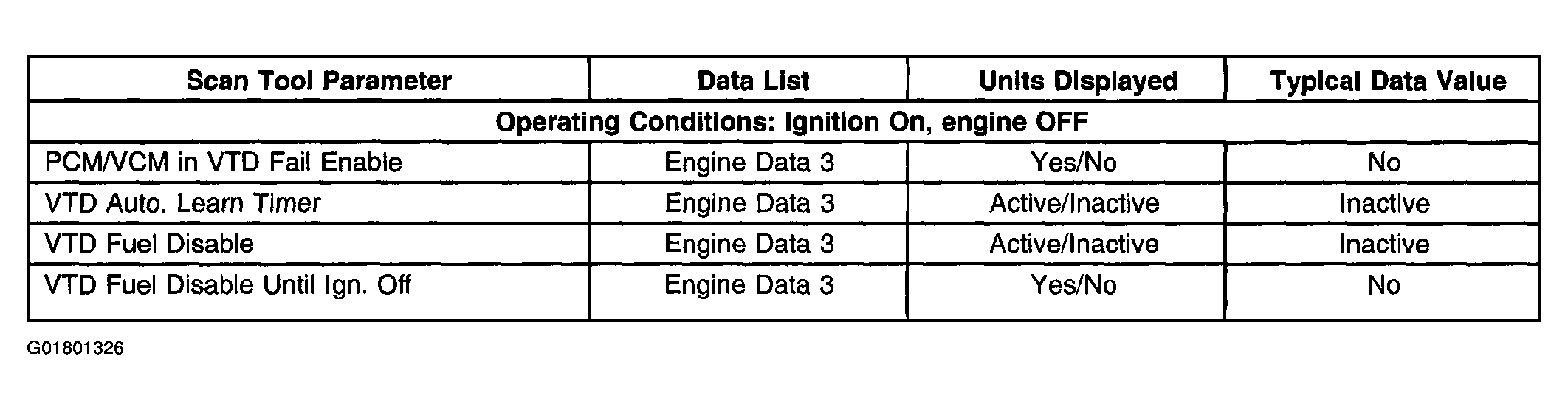

Fig 3: Powertrain Control Module (PCM) - 4.0L

Courtesy of GENERAL MOTORS CORP.

Fig 4: Rear Integration Module (RIM)

Courtesy of GENERAL MOTORS CORP.

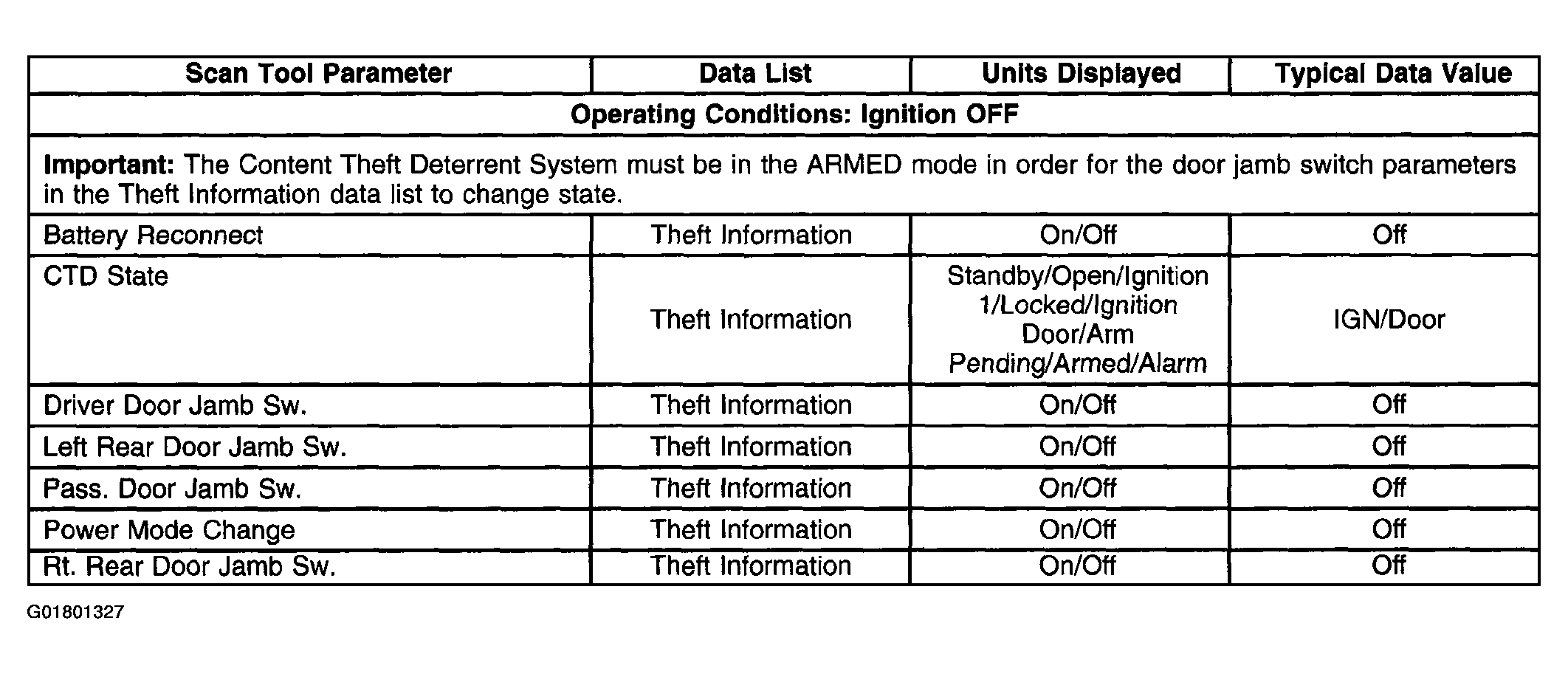

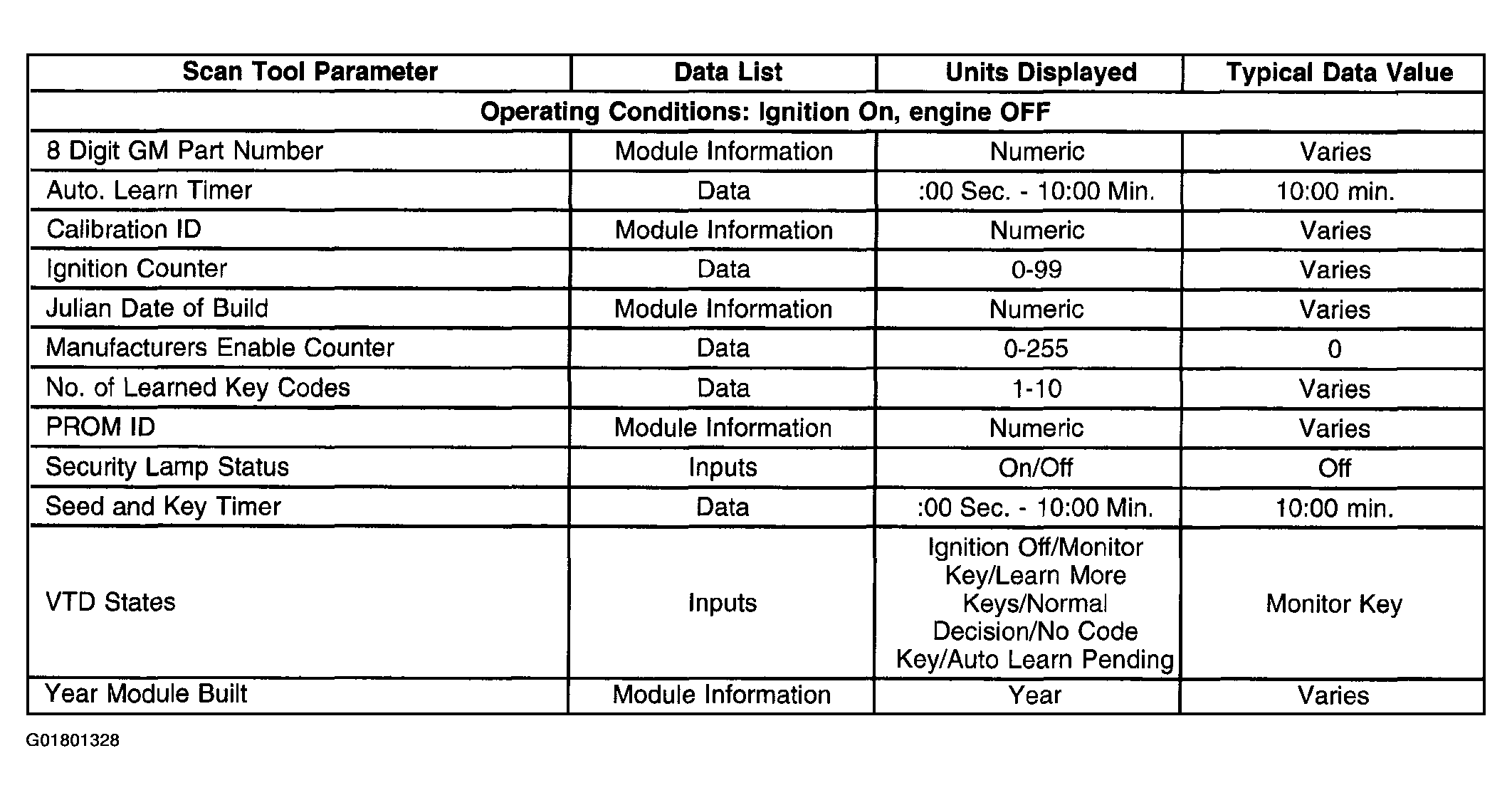

Fig 5: Theft Deterrent Control Module

Courtesy of GENERAL MOTORS CORP.
