Test Description

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

The number below refer to the step number on the diagnostic table.

3. Scan tool should read the normal state operation.

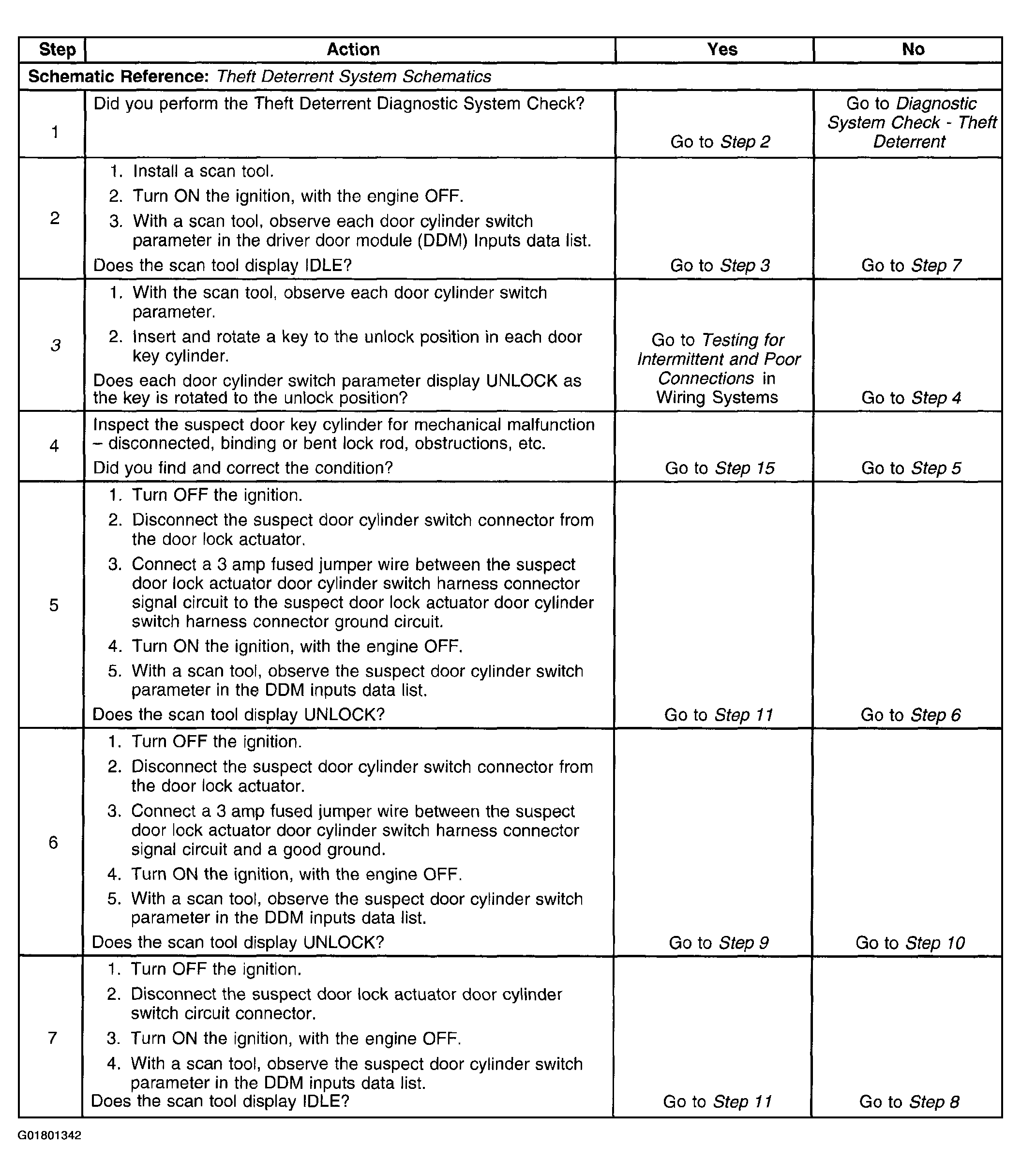

Fig 1: Content Theft Deterrent (CTD) Does Not Disarm with Key Lock (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

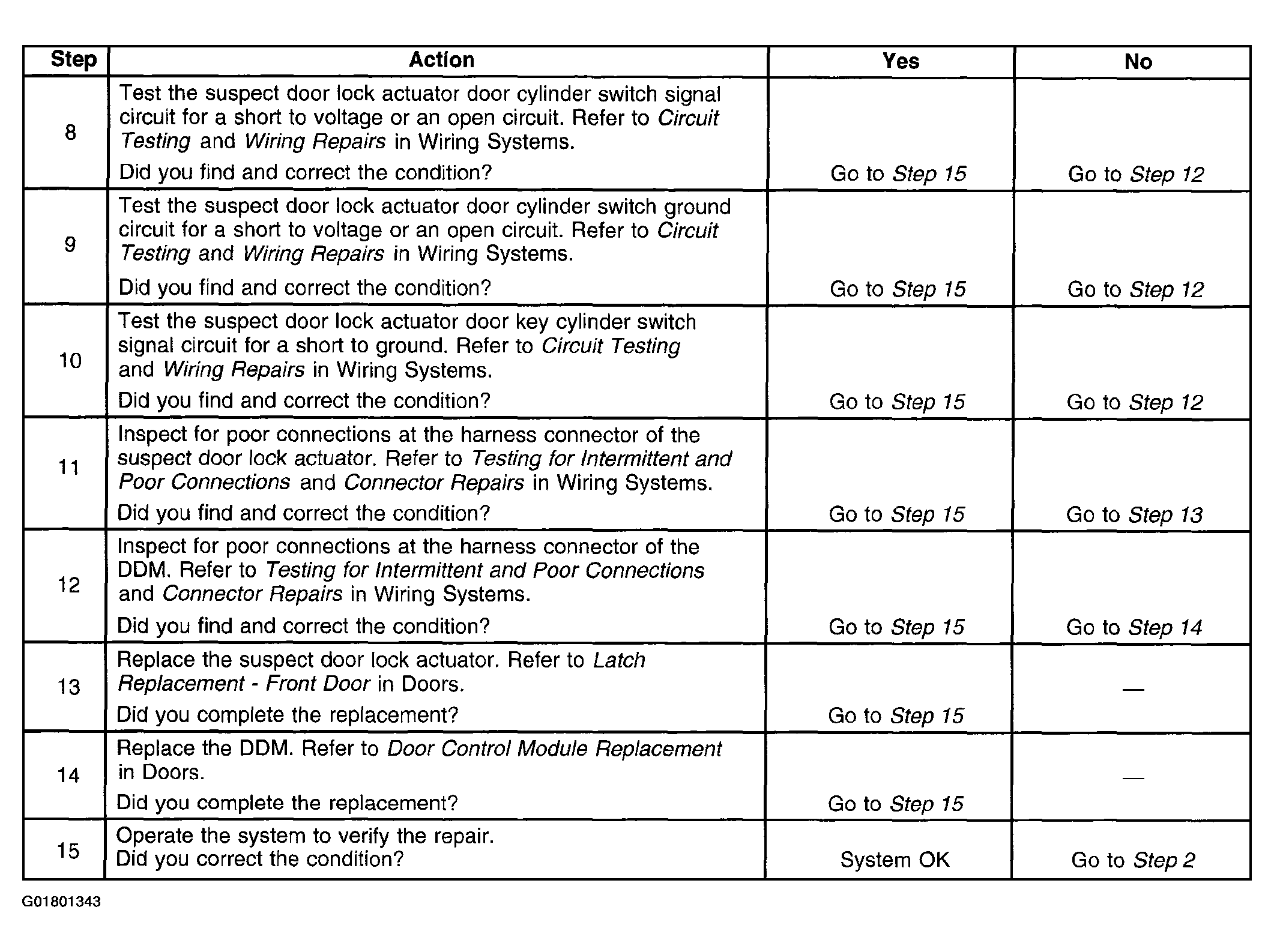

Fig 2: Content Theft Deterrent (CTD) Does Not Disarm with Key Lock (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
