Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat. Refer to SEAT REPLACEMENT -- BUCKET .
  2. Remove the seat belt tower rear trim cover by inserting a small rounded tool in the access hole in order to release the retainer.
    Fig 1: Removing Seat Belt Tower Rear Trim Cover
    G01804186Courtesy of GENERAL MOTORS CORP.
  3. Remove the seat belt tower front trim cover fasteners (1).

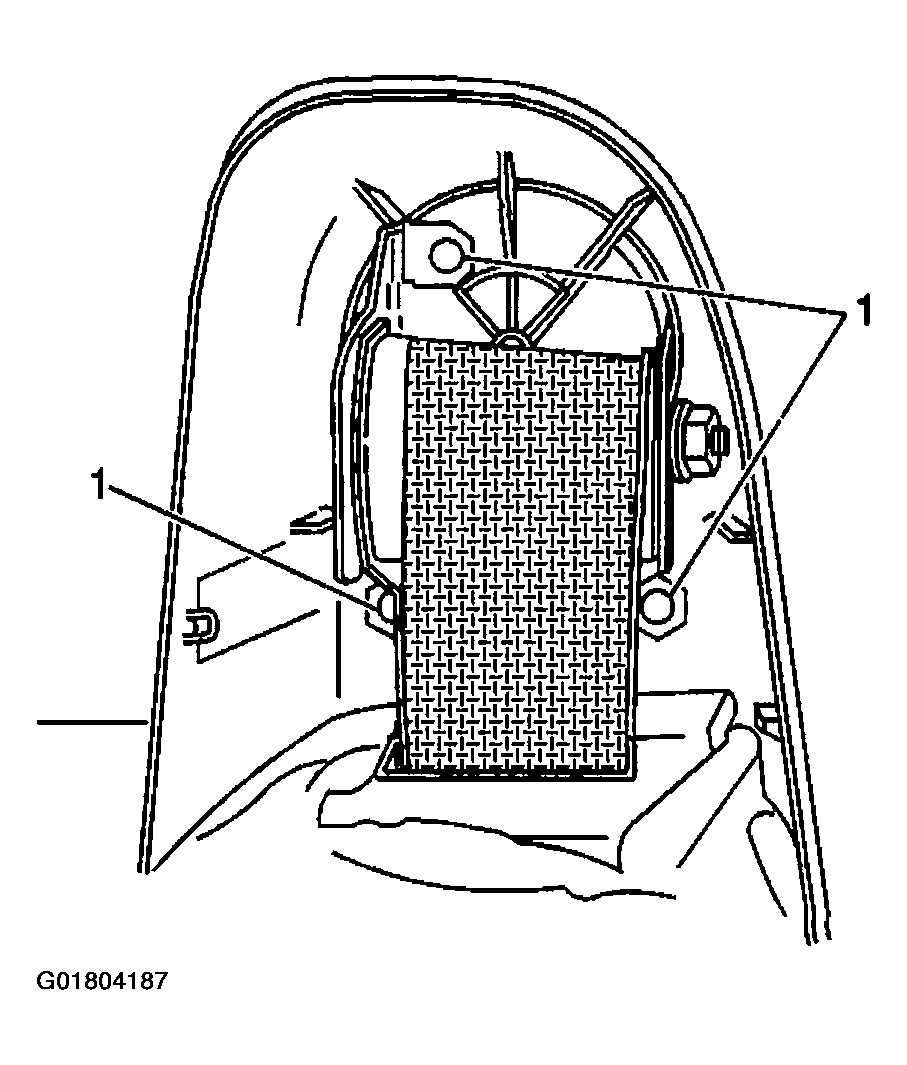

    Fig 2: Removing Seat Belt Tower Front Trim Cover
    G01804187Courtesy of GENERAL MOTORS CORP.
  4. Remove the front seat back cover and pad enough to expose the shoulder belt retractor fastener (1). Refer to SEAT BACK COVER AND PAD REPLACEMENT -- FRONT .
  5. Remove the shoulder belt retractor fastener (1).
  6. Remove the shoulder belt retractor.

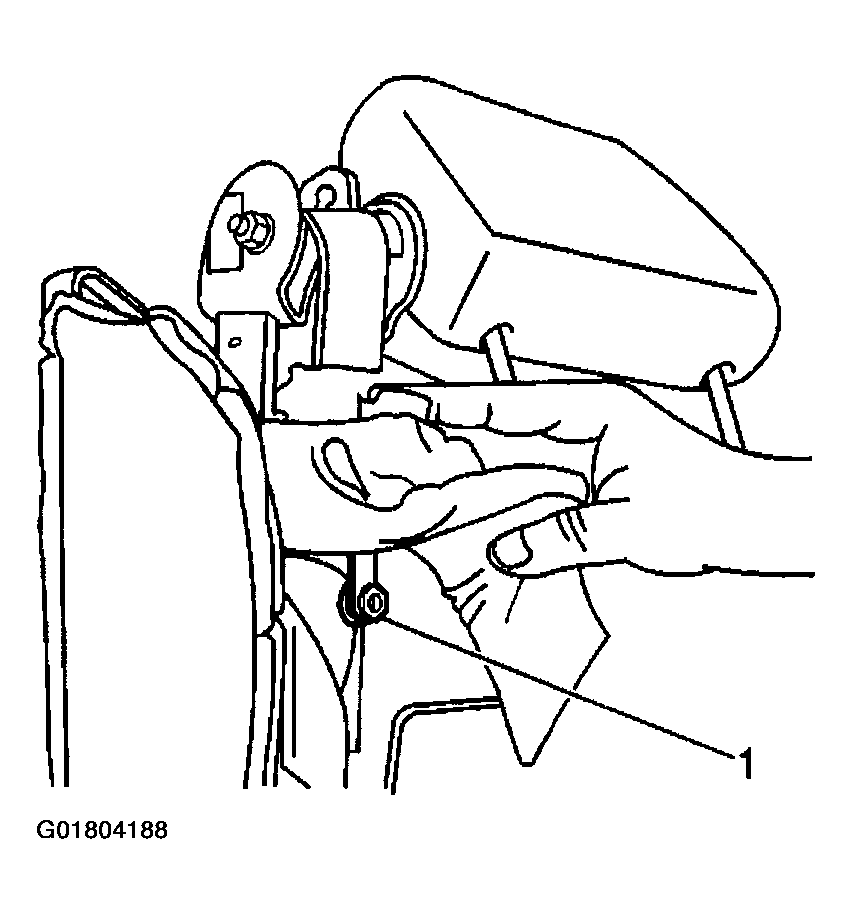

    Fig 3: Removing Shoulder Belt Retractor
    G01804188Courtesy of GENERAL MOTORS CORP.
  7. Remove the seat adjuster track cover. Refer to SEAT ADJUSTER TRACK COVER REPLACEMENT -- FRONT .
  8. Remove the lap retractor fastener (3).
  9. Remove the lap belt retractor.

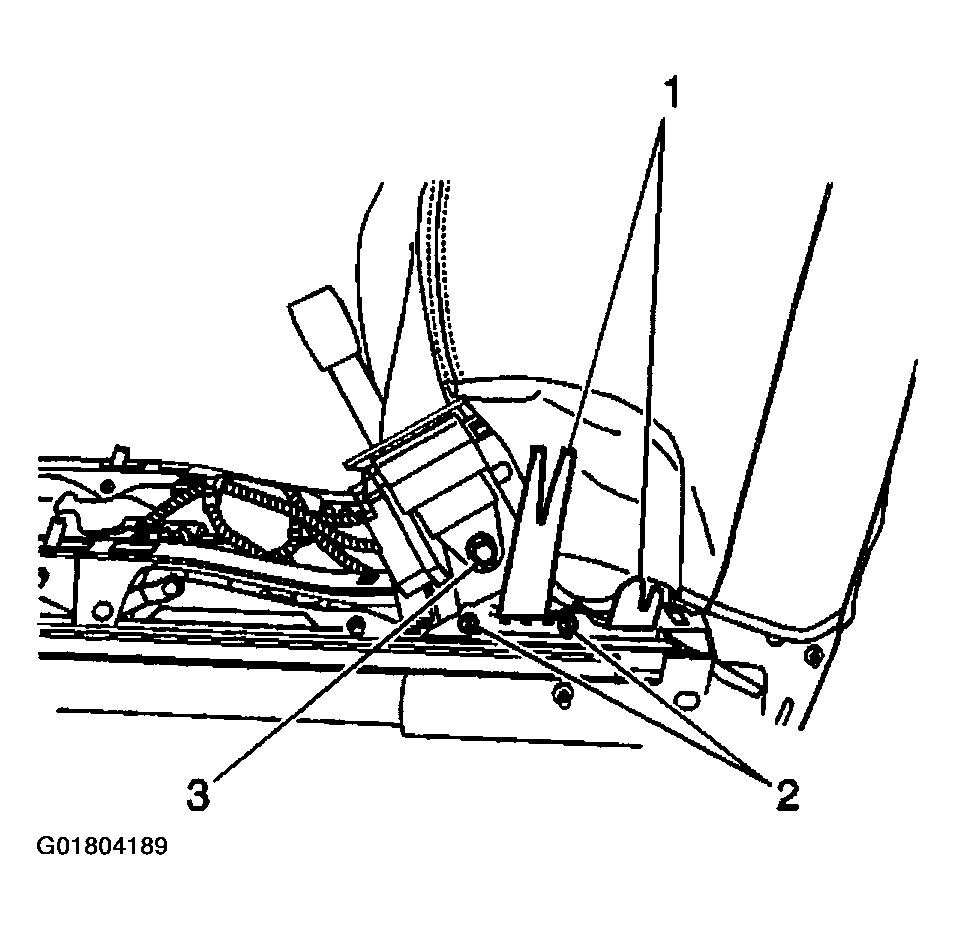

    Fig 4: Removing Lap Belt Retractor
    G01804189Courtesy of GENERAL MOTORS CORP.
