Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lap belt retractor over the stud. Align the tab on the retractor with the notch in the seat frame.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the lap belt retractor fastener (3).

    Tighten

    Tighten the fastener (3) to 35 N.m (26 lb ft).

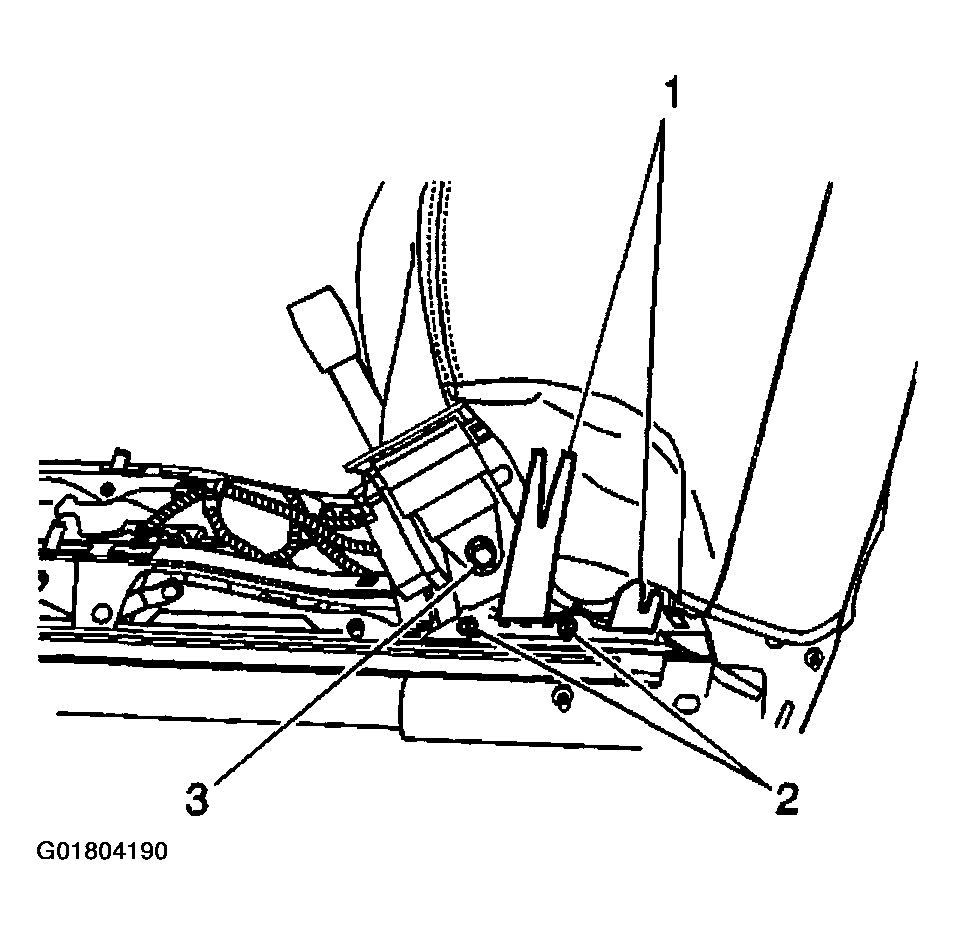

    Fig 1: Installing Lap Belt Retractor Fastener
    G01804190Courtesy of GENERAL MOTORS CORP.
  3. Install the seat adjuster track cover. Refer to SEAT ADJUSTER TRACK COVER REPLACEMENT -- FRONT .
  4. Install the shoulder belt retractor over the stud. Align the tab on the retractor with the notch in the seat back frame.
  5. Ensure the seat belt is not twisted.
  6. Install the shoulder retractor fastener (1).

    Tighten

    Tighten the fasteners to 35 N.m (26 lb ft).

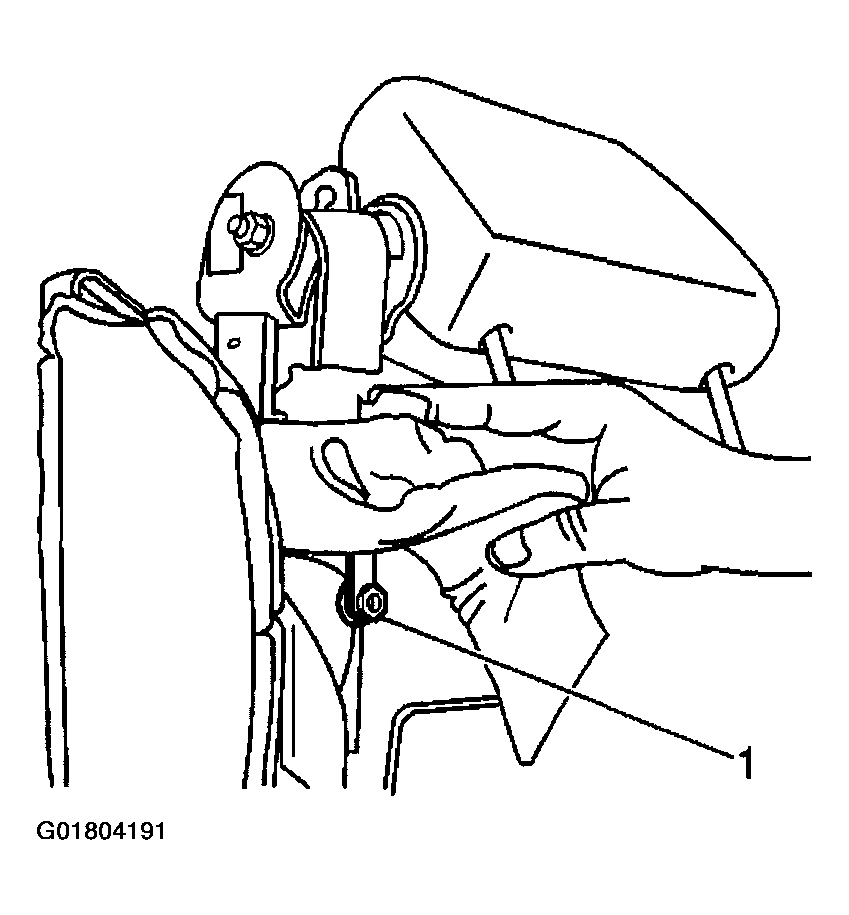

    Fig 2: Installing Shoulder Belt Retractor
    G01804191Courtesy of GENERAL MOTORS CORP.
  7. Install the seat back cover and pad. Refer to SEAT ADJUSTER TRACK COVER REPLACEMENT -- FRONT .
  8. Install the seat belt tower front trim cover fastener (1).

    Tighten

    Tighten the fasteners to 2 N.m (18 lb in).

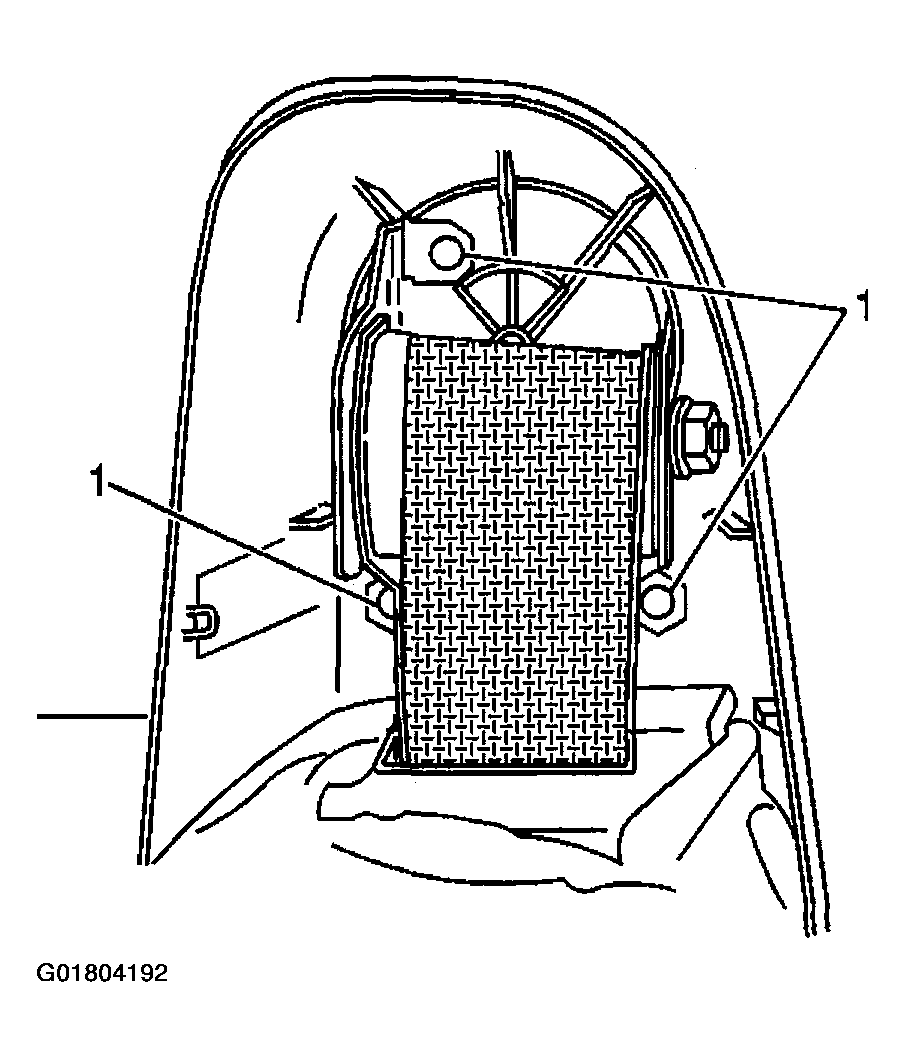

    Fig 3: Installing Seat Belt Tower Front Trim Cover
    G01804192Courtesy of GENERAL MOTORS CORP.
  9. Install seat belt tower rear cover.
  10. Install the front seat. Refer to SEAT REPLACEMENT -- BUCKET .

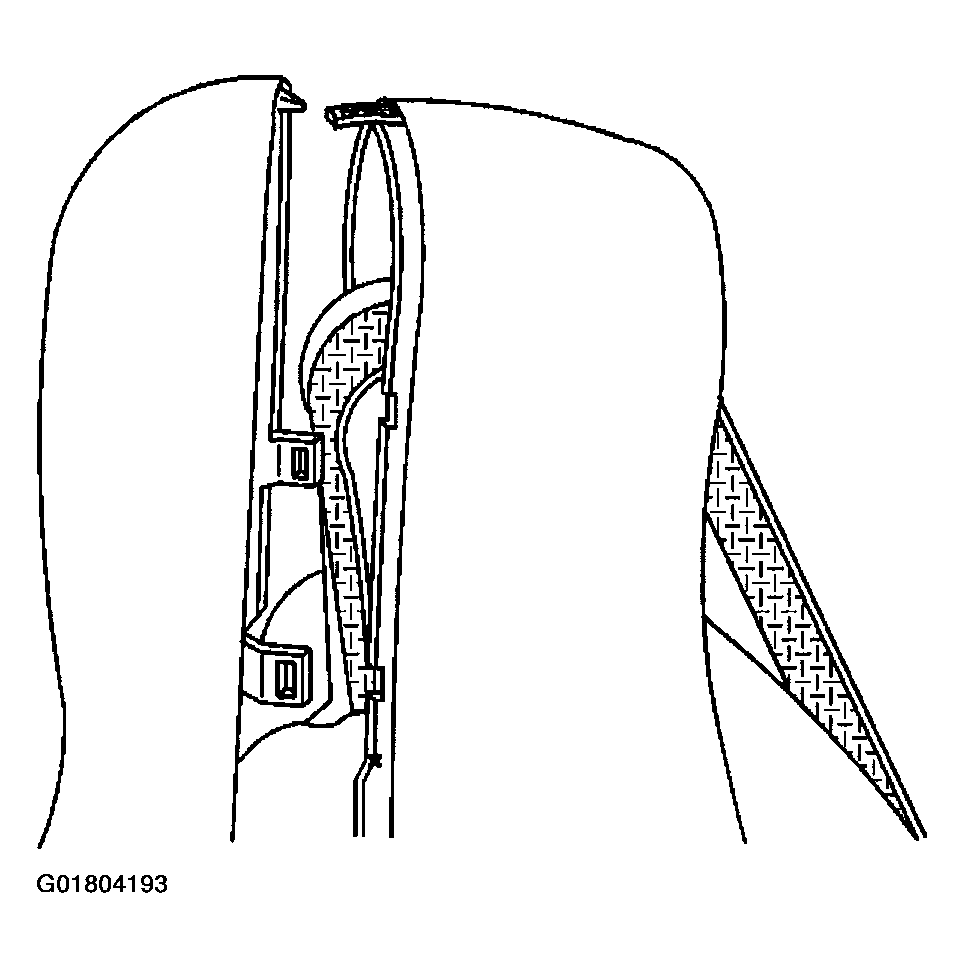

    Fig 4: Installing Seat Belt Tower Rear Cover
    G01804193Courtesy of GENERAL MOTORS CORP.
