Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR .
  2. Remove the center rear seat belt anchor fastener.
  3. Slide the center rear seat belt anchor plate out from under the rear seat back hold-down.
  4. Remove the center rear seat belt from the vehicle.

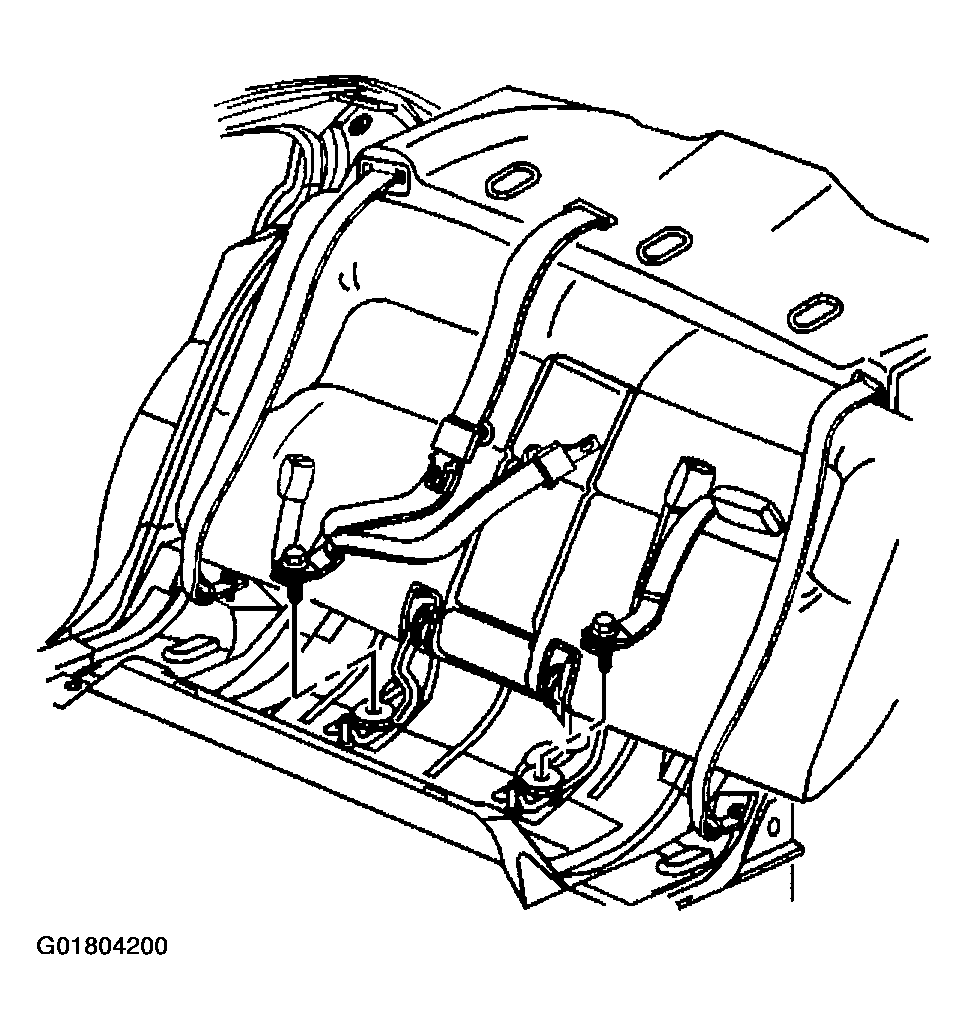

    Fig 1: Removing Center Rear Seat Belt
    G01804200Courtesy of GENERAL MOTORS CORP.
