Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the bracket (1) to the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the nuts (2).

    Tighten

    Tighten the nuts to 41 N.m (30 lb ft).

  3. Reposition the rear seat sound barrier to its original position.

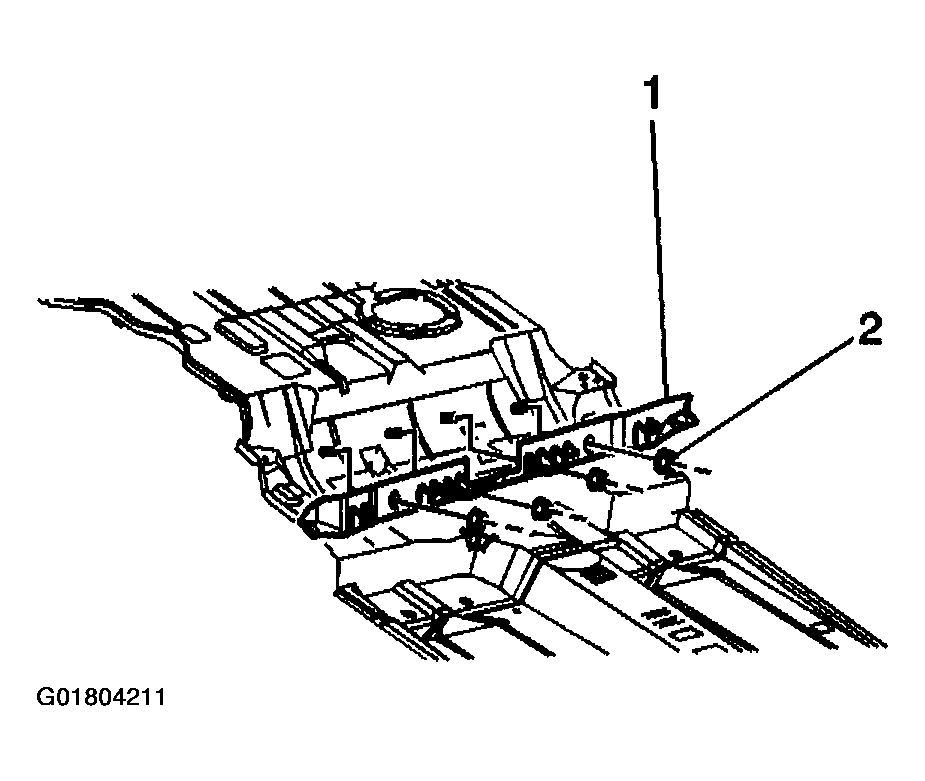

    Fig 1: Installing Securing Bracket
    G01804211Courtesy of GENERAL MOTORS CORP.
  4. Install the outer seat belt anchor bolts.

    Tighten

    Tighten the bolts to 41 N.m (30 lb ft).

  5. Install the rear seat back. Refer to SEAT BACK REPLACEMENT -- REAR .

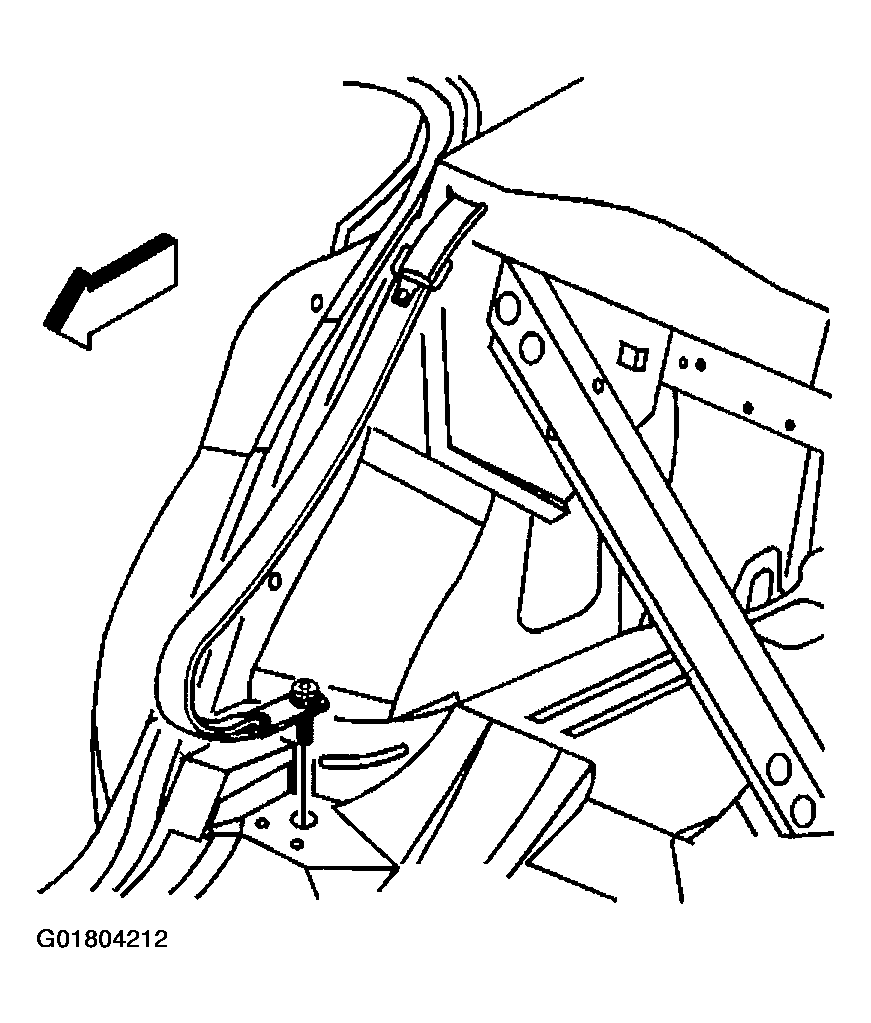

    Fig 2: Installing Outer Seat Belt Anchor Bolts
    G01804212Courtesy of GENERAL MOTORS CORP.
