Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  2. Remove the battery. Refer to Battery Replacement .
  3. Remove the battery tray bolts.

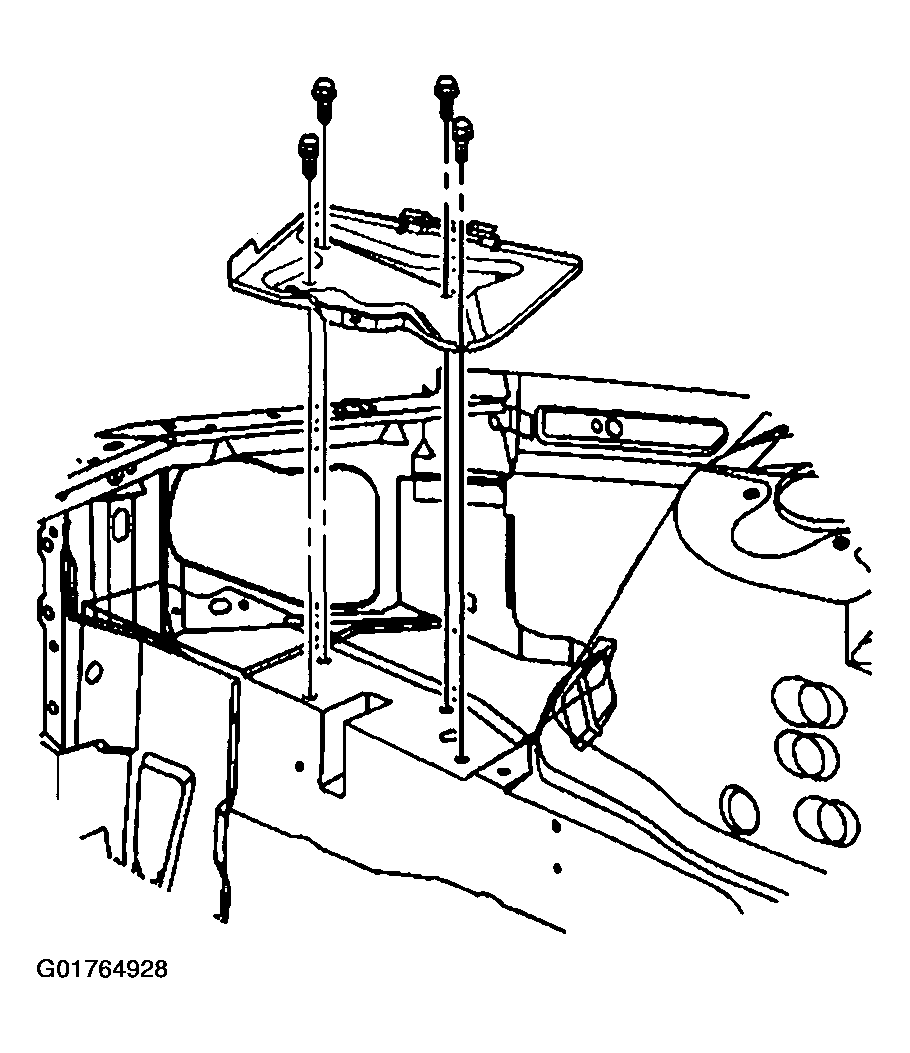

    4. Fig 1: Identifying Battery Tray
    G01764928Courtesy of GENERAL MOTORS CORP.
  4. Remove the battery tray.
