Windshield Wiper and Washer Switch Assembly - Assemble - Off Vehicle

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Slide the windshield wiper and washer switch assembly into the turn signal switch housing so that the locking tabs snap into place.
Connect the windshield wiper and washer switch assembly connector.

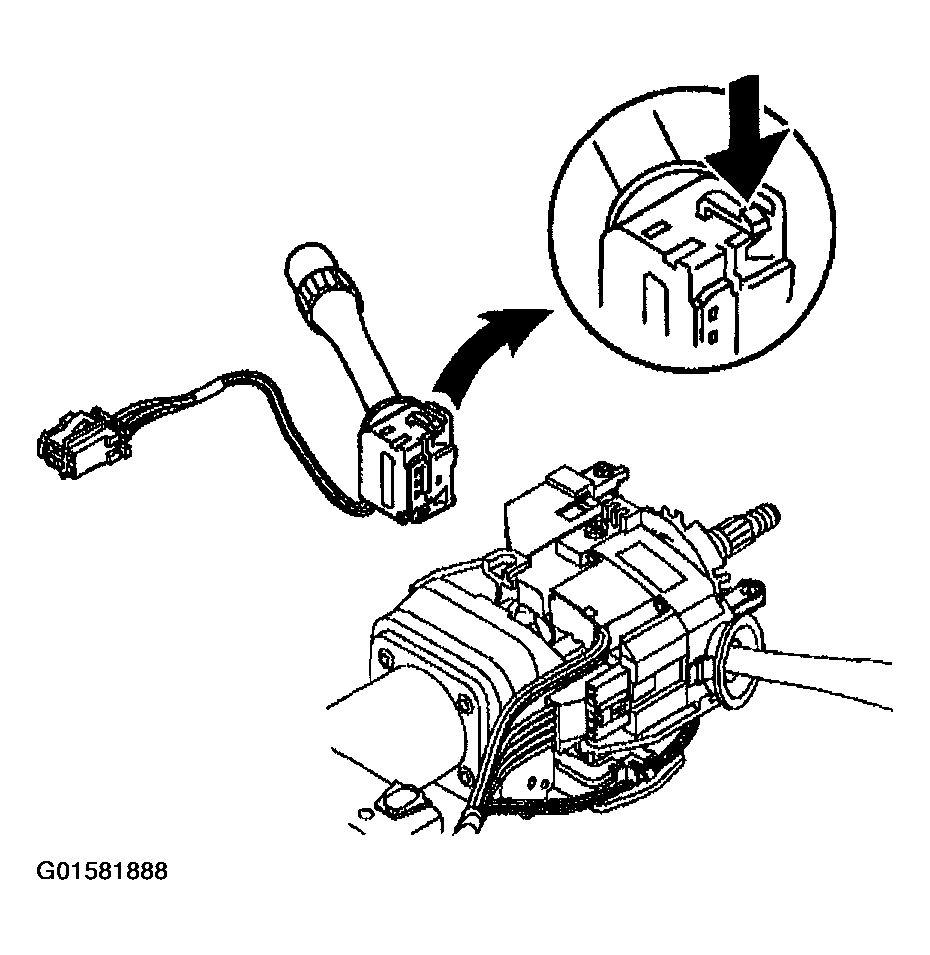

Fig 1: Installing Windshield Wiper & Washer Switch Assembly
Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to SIR INFLATOR MODULE COIL CAUTION .
Install the wire harness straps.
Install the wire harness assembly into the wire restraint clip (1).

Fig 2: Installing Wire Harness Assembly

Courtesy of GENERAL MOTORS CORP.

Install the upper and lower trim covers. Refer to Steering Column Trim Covers - Assemble - Off Vehicle .
Enable the inflatable restraint steering wheel module. Refer to ACTIVATING SYSTEM .
