Turn Signal Switch Housing - Assemble - Off Vehicle (Prime Aurora)

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Important: The switch mounting bracket must be pressed firmly against the steering column tilt head in order for the screws from the turn signal and multifunction switch assembly screws to line up.

Slide the turn signal switch housing onto the steering column shaft assembly.
Install the windshield wiper and washer switch, if needed.

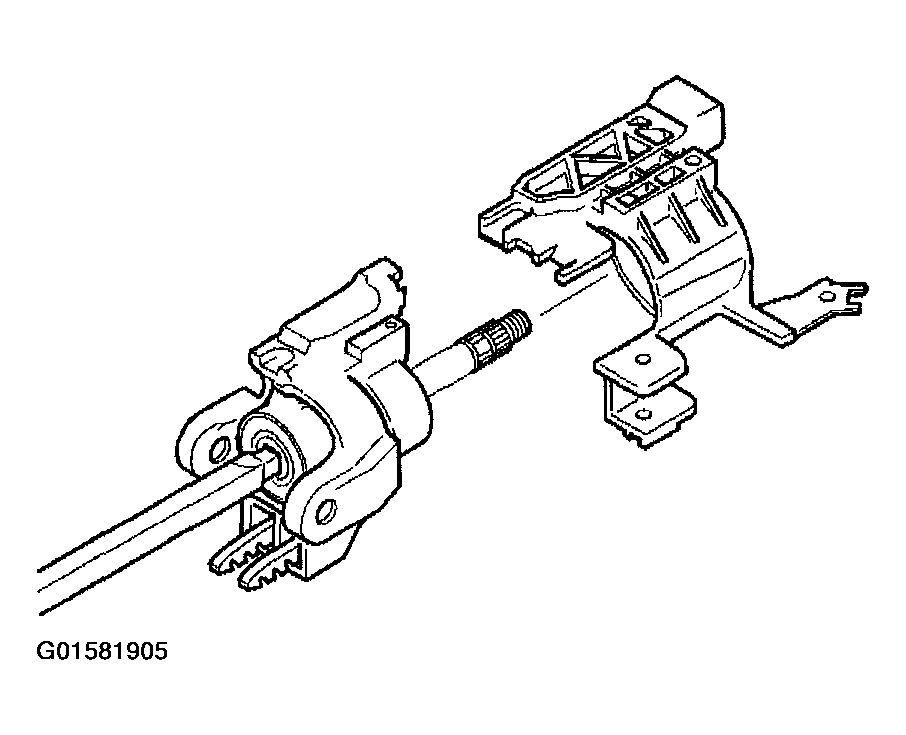

Fig 1: Installing Turn Signal Switch Housing

Courtesy of GENERAL MOTORS CORP.

Install the turn signal and multifunction switch assembly only. Refer to Turn Signal and Multifunction Switch Assembly - Assemble - Off Vehicle .
Install the steering column tilt head components. Refer to Turn Signal Cancel Cam and Upper Bearing Inner Race - Assemble - Off Vehicle .
Enable the inflatable restraint steering wheel module. Refer to ACTIVATING SYSTEM .
