Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to DISABLING SYSTEM .
  2. Remove the steering wheel. Refer to Steering Wheel Replacement  .
  3. Remove the knee bolster. Refer to KNEE BOLSTER REPLACEMENT .
  4. Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle  .
  5. Use the tilt lever to tilt the column in the UP position.
  6. Remove the tilt spring (1).

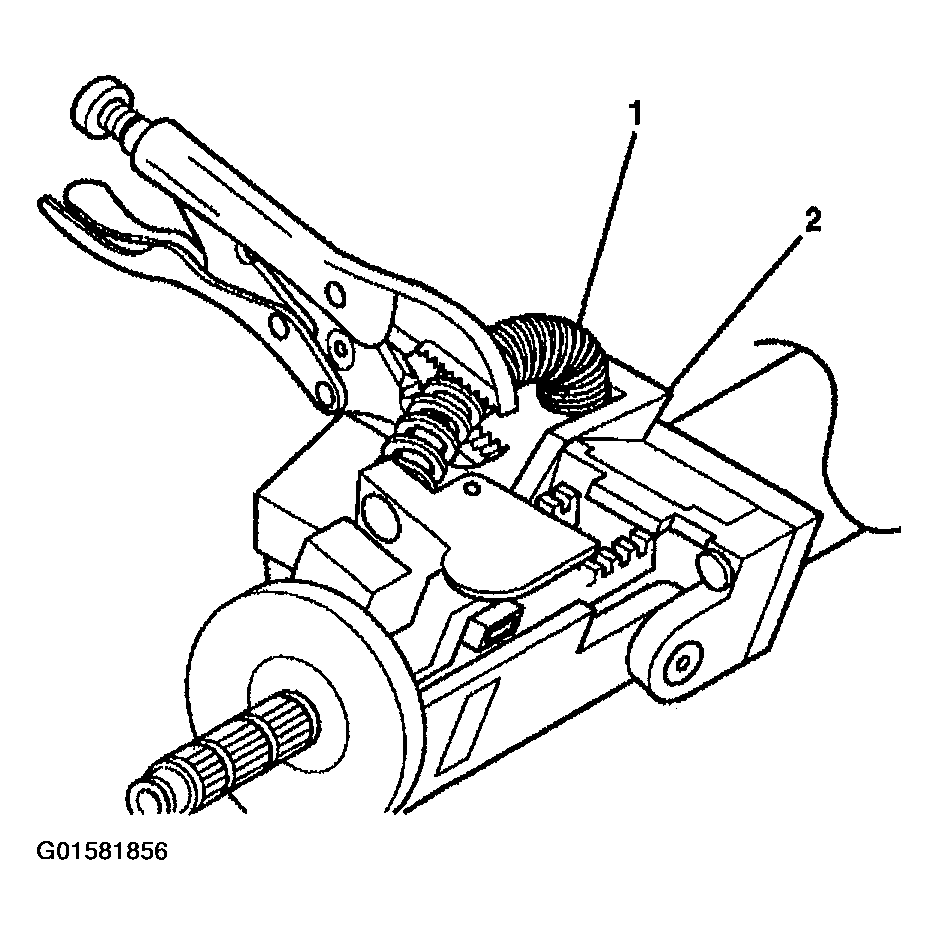

    Fig 1: Removing Tilt Spring
    G01581856Courtesy of GENERAL MOTORS CORP.
