Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate tilt spring guide with synthetic grease.
  2. Install the tilt spring guide into the tilt spring.
    Fig 1: Installing Tilt Spring Guide
    G01581857Courtesy of GENERAL MOTORS CORP.
  3. Install the tilt spring (1).
  4. Install the steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle  .
  5. Install the knee bolster. Refer to KNEE BOLSTER REPLACEMENT .
  6. Install the steering wheel. Refer to Steering Wheel Replacement  .
  7. Enable the SIR system. Refer to ACTIVATING SYSTEM .

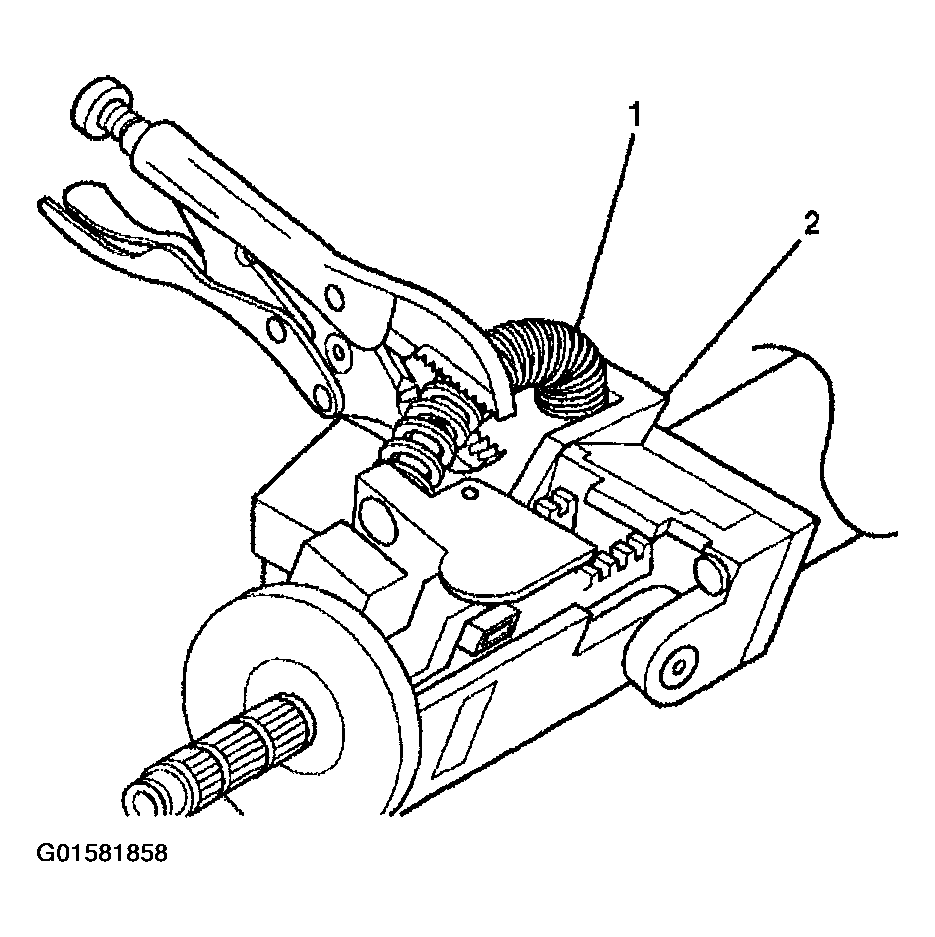

    Fig 2: Installing Tilt Spring
    G01581858Courtesy of GENERAL MOTORS CORP.
