Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to DISABLING SYSTEM .
  2. Remove the steering column bracket. Refer to BRACKET REPLACEMENT -- STEERING COLUMN .
  3. Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle  .
  4. Remove the fasteners from the multi-function switch.
  5. Remove the tie straps from wiring harness.
  6. Disconnect the multi-function switch electrical connections.
  7. Remove the multi-function switch.

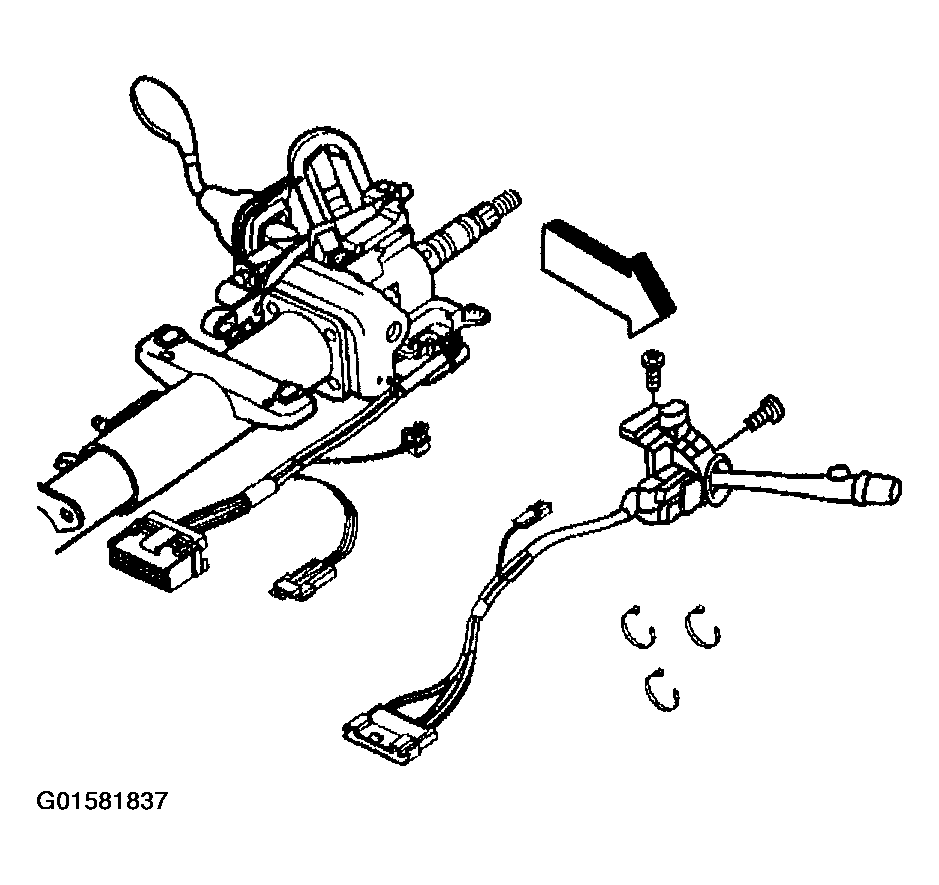

    Fig 1: Removing Multi-Function Switch
    G01581837Courtesy of GENERAL MOTORS CORP.
