Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to FASTENER NOTICE .
  1. Install the multi-function switch and the fasteners.

    Tighten

    Tighten the fasteners to 7 N.m (62 lb in).

  2. Route the electrical harness and connect electrical connections.
  3. Install new tie straps on the wiring harness.

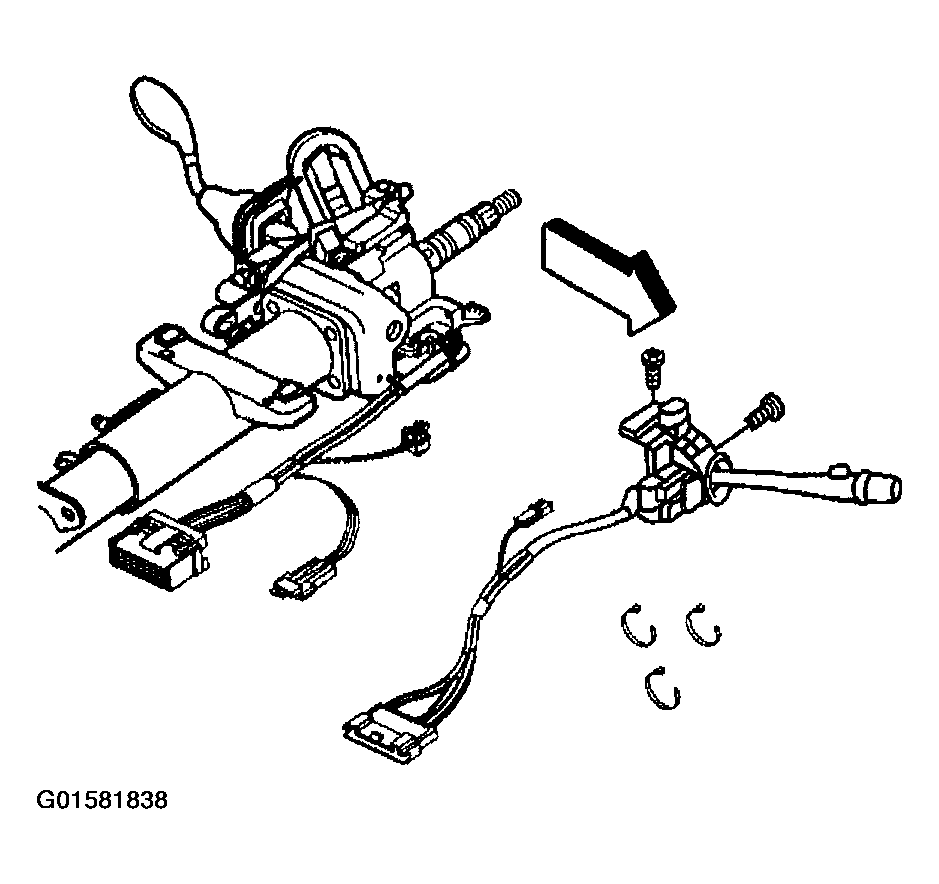

    Fig 1: Installing Multi-Function Switch
    G01581838Courtesy of GENERAL MOTORS CORP.
  4. Install steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle  .
  5. Install the steering column bracket. Refer to BRACKET REPLACEMENT -- STEERING COLUMN .
  6. Enable the SIR system. Refer to ACTIVATING SYSTEM .
