Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert the J 42640  into the steering column access hole in order to lock the steering column. This will maintain correct orientation.
  2. Raise and support the vehicle.
    Fig 1: Locking Steering Column
    G01581851Courtesy of GENERAL MOTORS CORP.
  3. Remove the pinch bolt at the steering gear stub shaft.
  4. Lower the vehicle.
  5. Remove the left IP sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT .

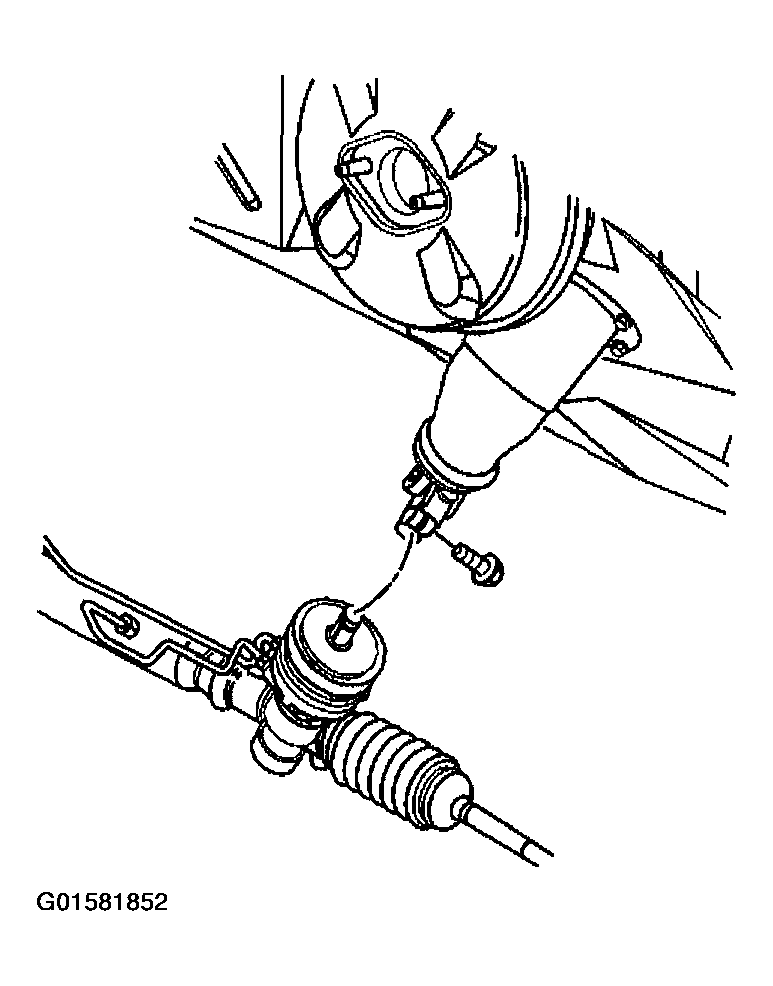

    Fig 2: Removing Steering Gear Stub Axle
    G01581852Courtesy of GENERAL MOTORS CORP.
  6. Reposition the intermediate shaft seal (dust seal) in order to gain access to the upper intermediate shaft pinch bolt (2).
  7. Remove the intermediate shaft upper pinch bolt (2).
  8. Disconnect the intermediate shaft (1) from the steering column.
  9. Remove the intermediate steering shaft (1).

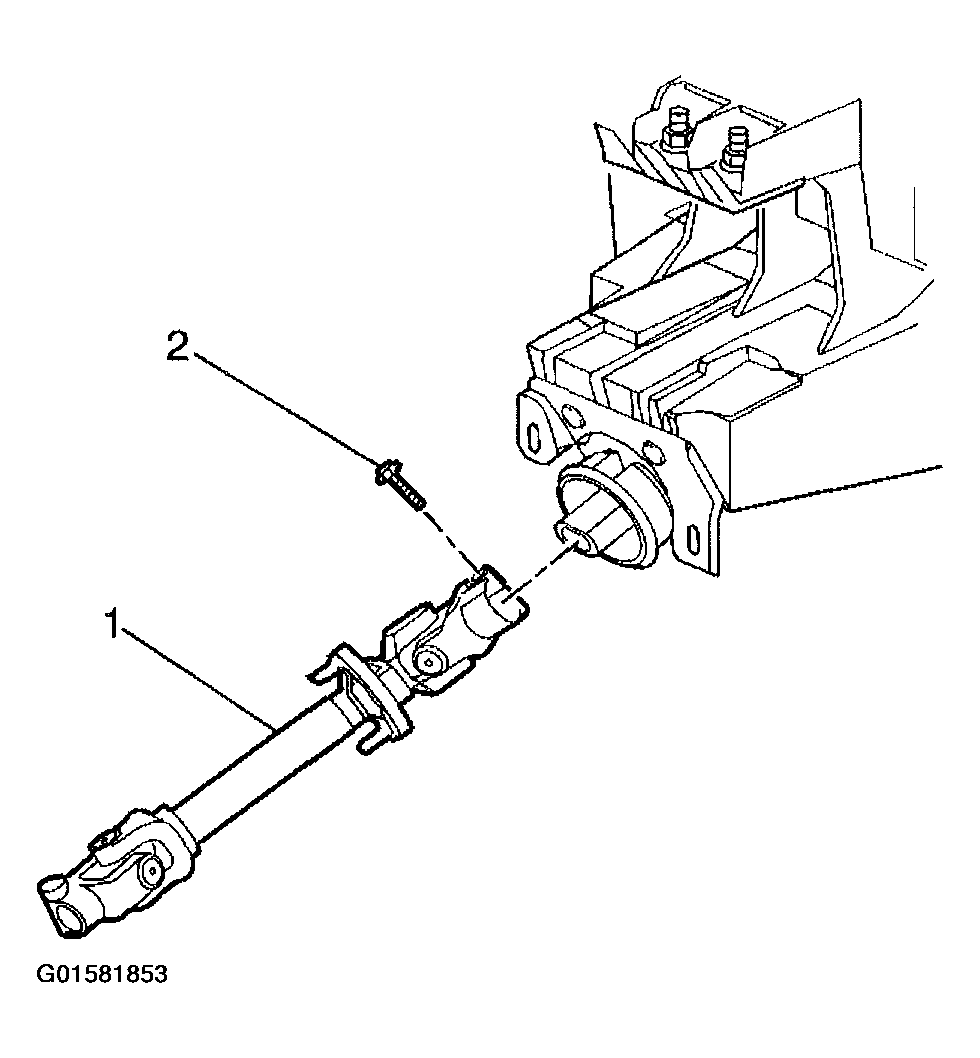

    Fig 3: Removing Intermediate Steering Shaft
    G01581853Courtesy of GENERAL MOTORS CORP.
