Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the intermediate steering shaft (1). Insert the shaft fully into the pinch bolt pot joint on the steering column.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the intermediate shaft upper pinch bolt (2).

    Tighten

    Tighten the pinch bolt (2) to 47 N.m (35 lb ft).

  3. Reposition the seal as needed.
  4. Install the left IP sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT .
  5. Raise the vehicle.
  6. Install the intermediate shaft to the steering gear.
  7. Install the intermediate shaft lower pinch bolt.

    Tighten

    Tighten the pinch bolt to 47 N.m (35 lb ft).

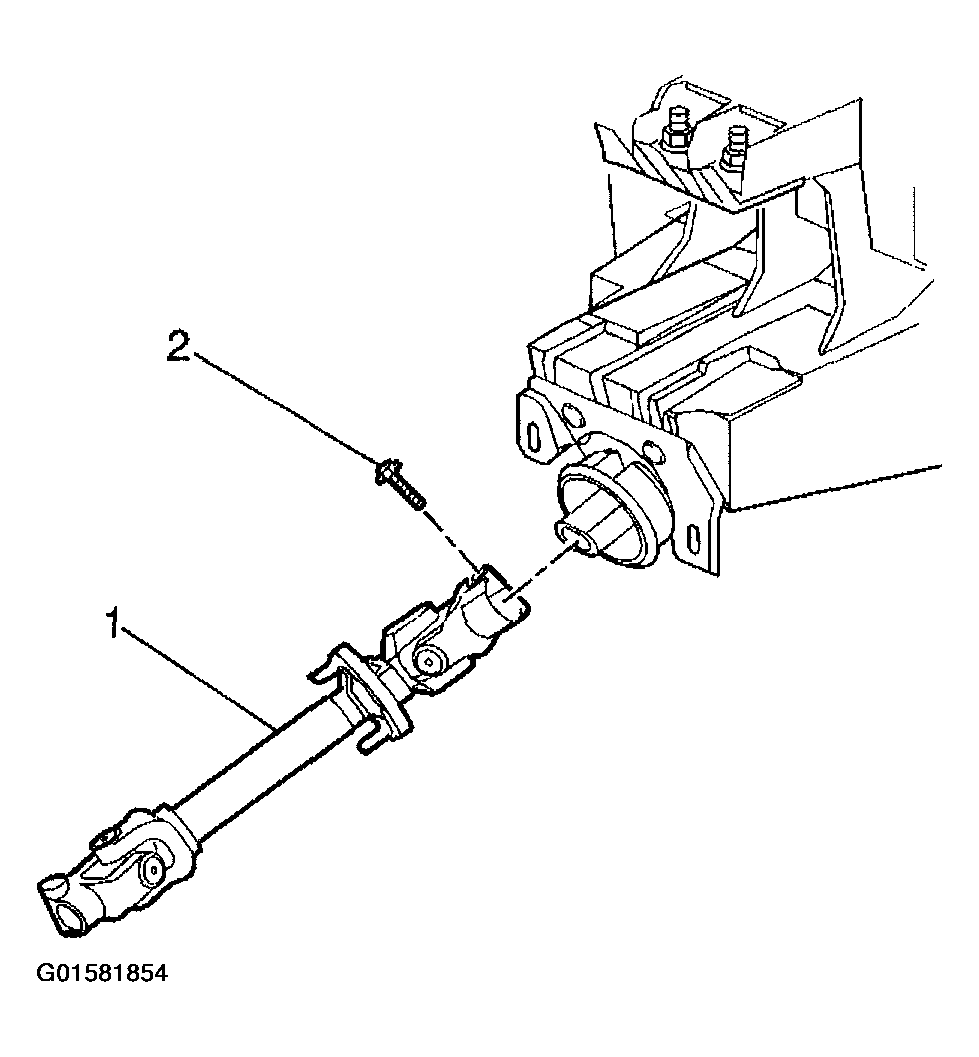

    Fig 1: Installing Intermediate Steering Shaft
    G01581854Courtesy of GENERAL MOTORS CORP.
  8. Lower the vehicle.
  9. Remove the J 42640  from the steering column.

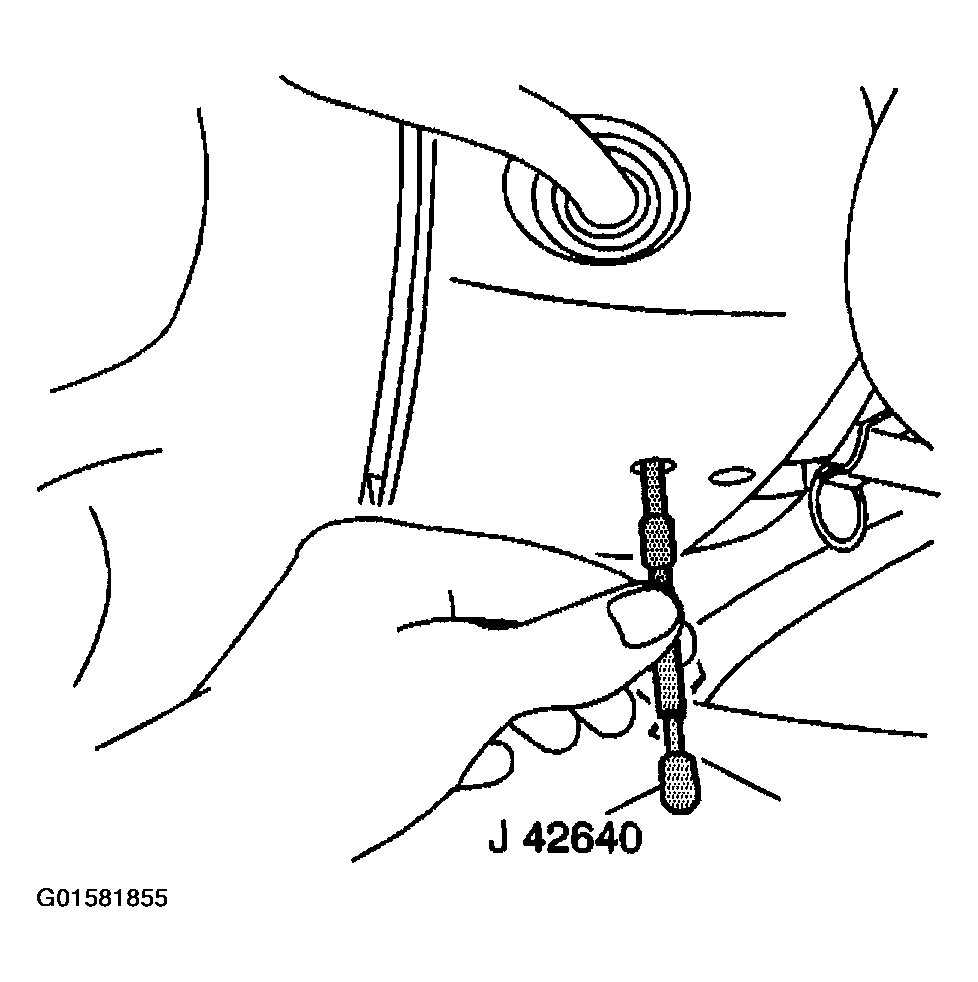

    Fig 2: Removing J 42640
    G01581855Courtesy of GENERAL MOTORS CORP.
