Inflatable Restraint Steering Wheel Module Coil - Disassemble - Off Vehicle

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SIR CAUTION .
  1. Disable the inflatable restraint steering wheel module. Refer to DISABLING SYSTEM .

    Important:  Before performing the following procedures, check the fused jumper assembly for burned 2 amp fuses.

  2. Remove the upper and lower trim covers. Refer to Steering Column Trim Covers - Disassemble - Off Vehicle  .
  3. Remove the wire harness assembly from the wire restraint clip (1).
  4. Remove the wire harness straps.

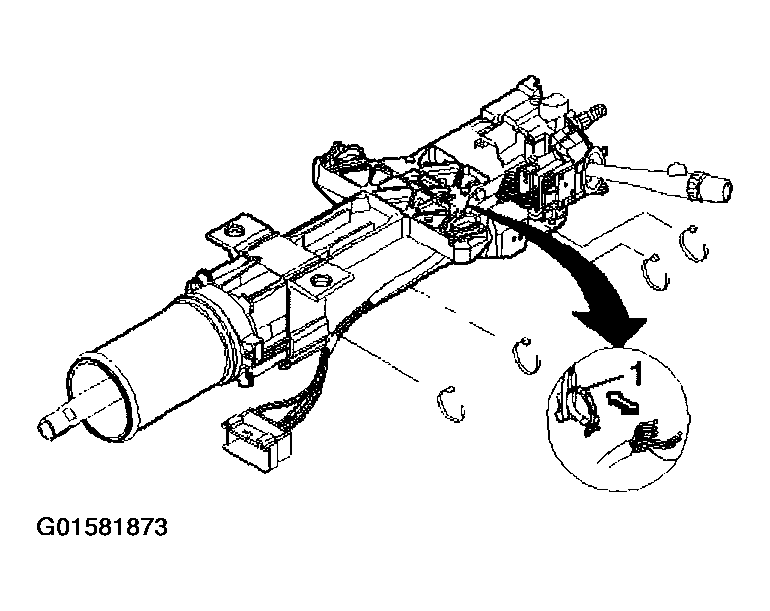

    Fig 1: Removing Wire Harness Assembly
    G01581873Courtesy of GENERAL MOTORS CORP.
  5. Remove the black inflatable restraint steering wheel module coil connector from the fused jumper assembly connector.
    Fig 2: Removing Black Inflatable Restraint Steering Wheel Module Coil Connector
    G01581874Courtesy of GENERAL MOTORS CORP.
  6. Remove the retaining ring (1) using snap ring pliers.
  7. Remove the inflatable restraint steering wheel module coil (2).
  8. Remove the wave washer (3).
    Fig 3: Removing Inflatable Restraint Steering Wheel Module Coil
    G01581875Courtesy of GENERAL MOTORS CORP.
