Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SIR CAUTION .
  1. Disable the SIR System. Refer to DISABLING SYSTEM .
  2. Remove the steering wheel. Refer to Steering Wheel Replacement  .
  3. Remove the access plate covering the back of the switch.

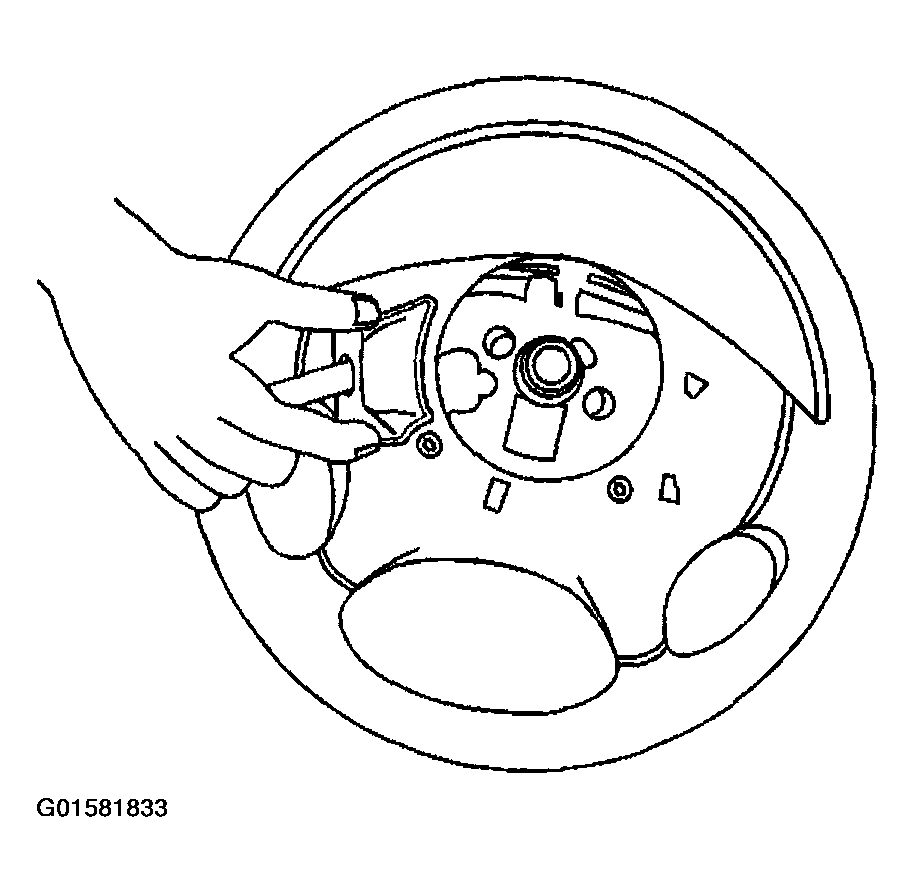

    Fig 1: Removing Access Plate
    G01581833Courtesy of GENERAL MOTORS CORP.
  4. Remove the cruise control lever retaining screws (1).
  5. Disconnect the electrical connector.

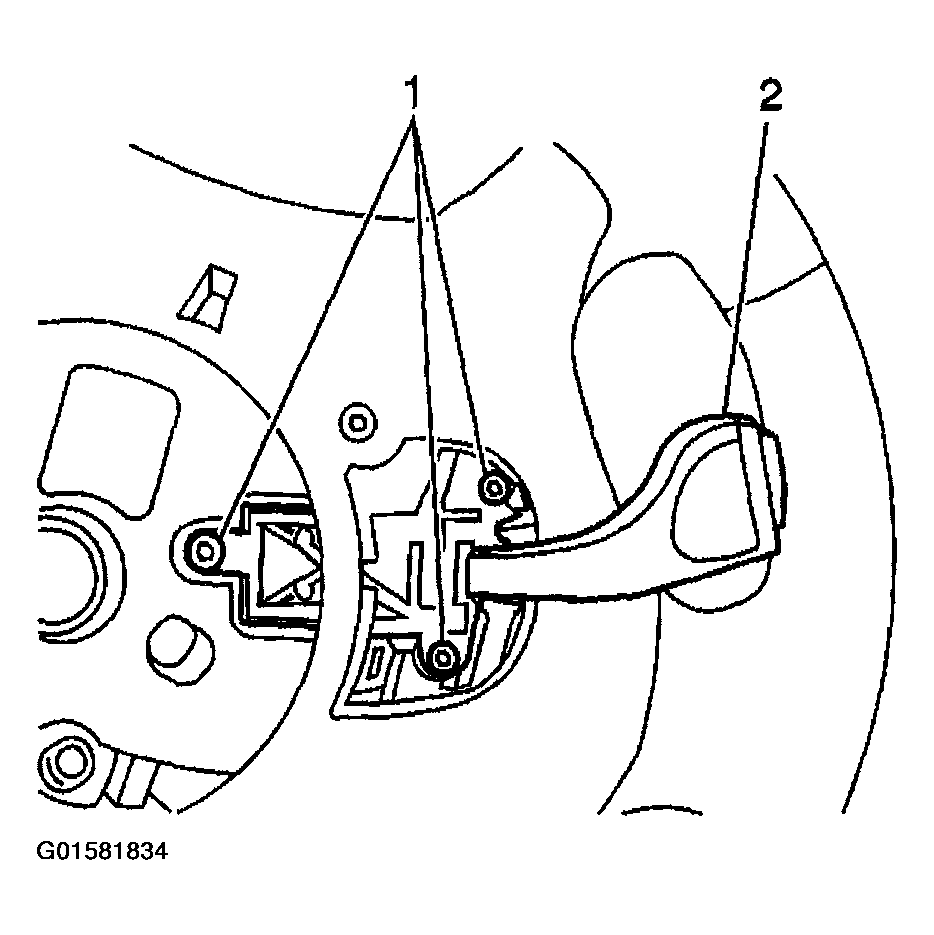

    Fig 2: Removing Cruise Control Lever Retaining Screw
    G01581834Courtesy of GENERAL MOTORS CORP.
