Lock System Does Not Unlock

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

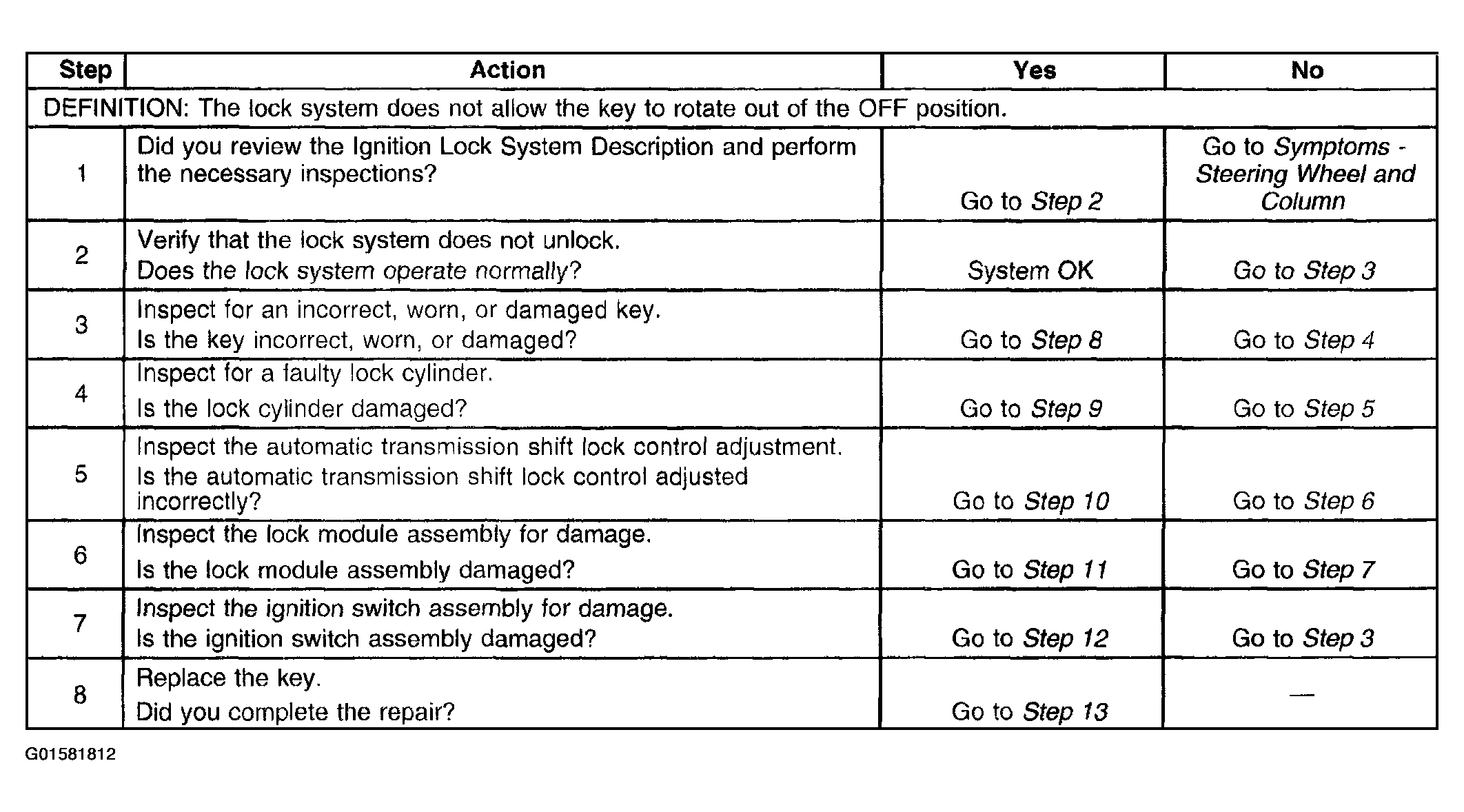

Fig 1: Lock System Does Not Unlock (1 Of 2)
G01581812Courtesy of GENERAL MOTORS CORP.

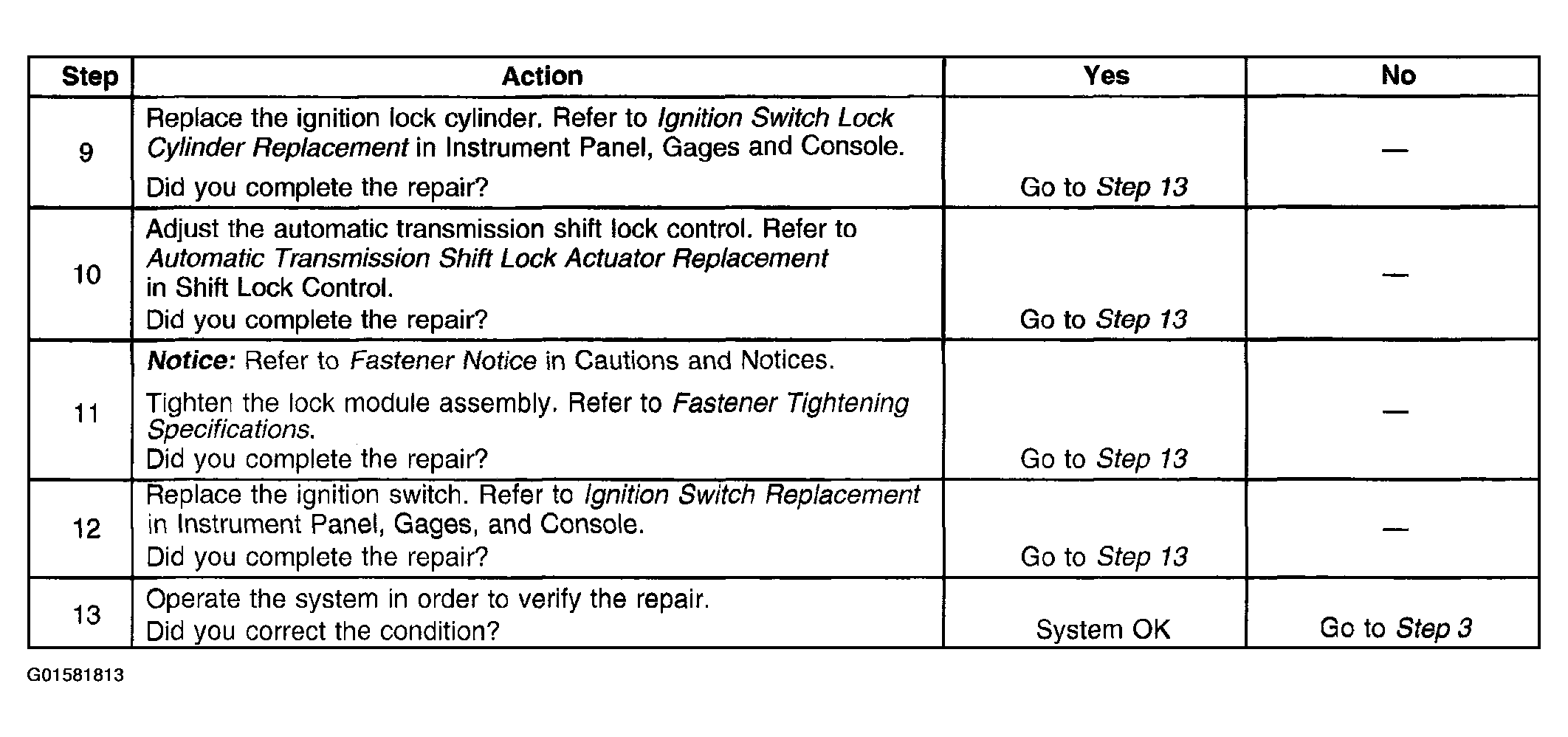

Fig 2: Lock System Does Not Unlock (2 Of 2)
G01581813Courtesy of GENERAL MOTORS CORP.
