Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left front fender wheelhouse inner panel (1).

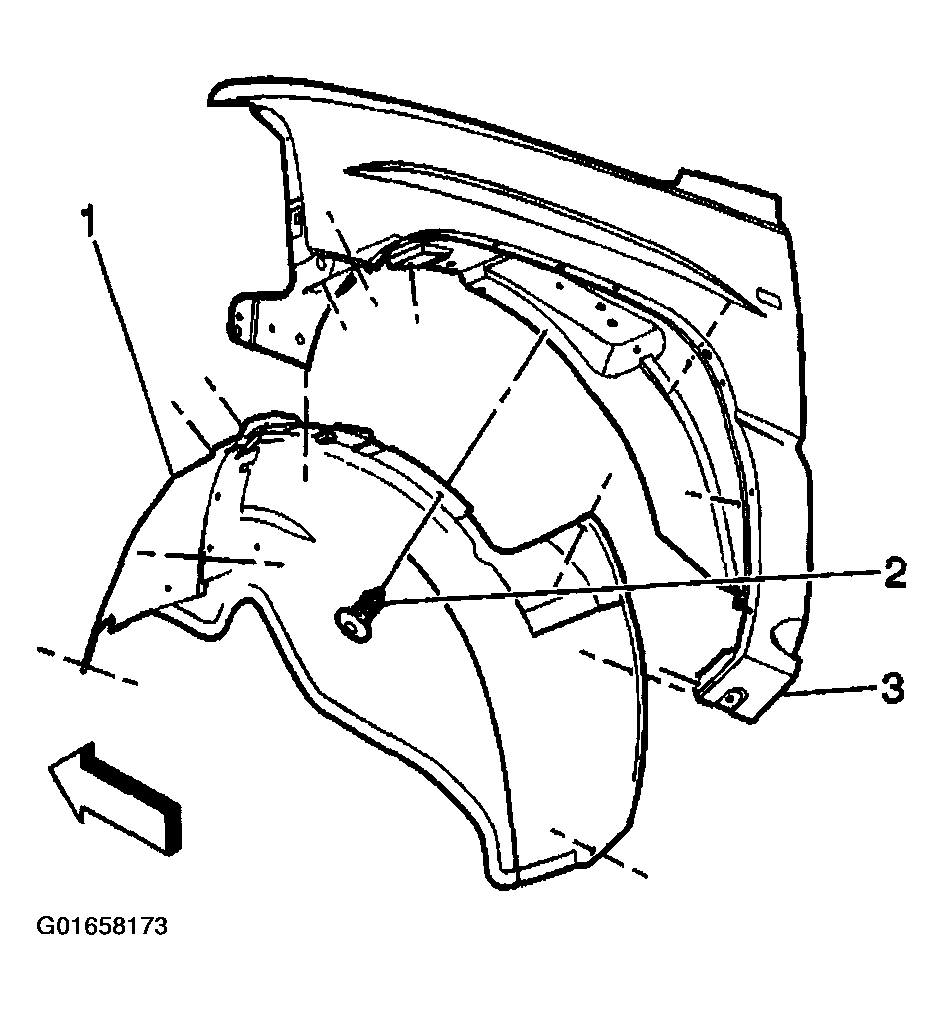

    2. Fig 1: Fender Wheelhouse Inner Panel
    G01658173Courtesy of GENERAL MOTORS CORP.
  2. Remove the water pump. Refer to Water Pump Replacement (6.6L Engine) .
  3. Remove the water pump outlet pipe from the engine oil cooler assembly.

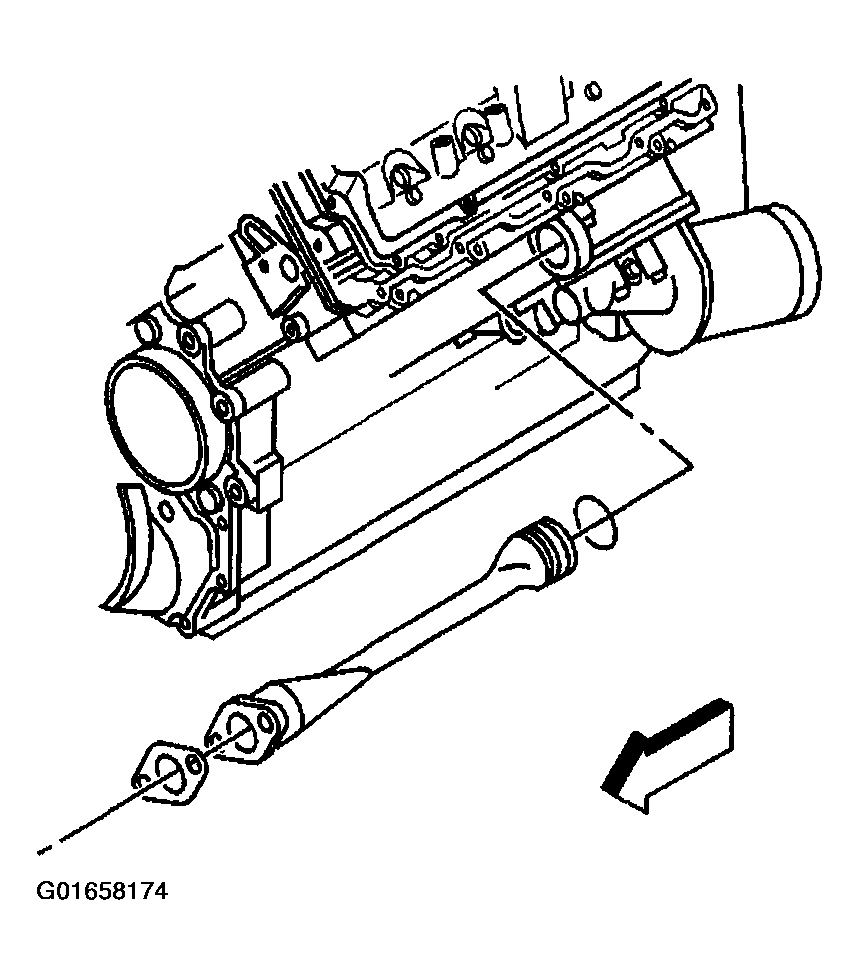

    4. Fig 2: Water Pump Outlet Pipe From Engine Oil Cooler Assembly
    G01658174Courtesy of GENERAL MOTORS CORP.
  4. Remove and discard the O-ring seal.
  5. Remove the gasket and clean the sealing surface.
