Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Draining & Filling Cooling System .
  2. Reposition the vent inlet hose clamp from the radiator.
  3. Remove the vent inlet hose from the radiator.
  4. Reposition the vent inlet hose clamp from the surge tank.
  5. Remove the vent inlet hose from the surge tank.

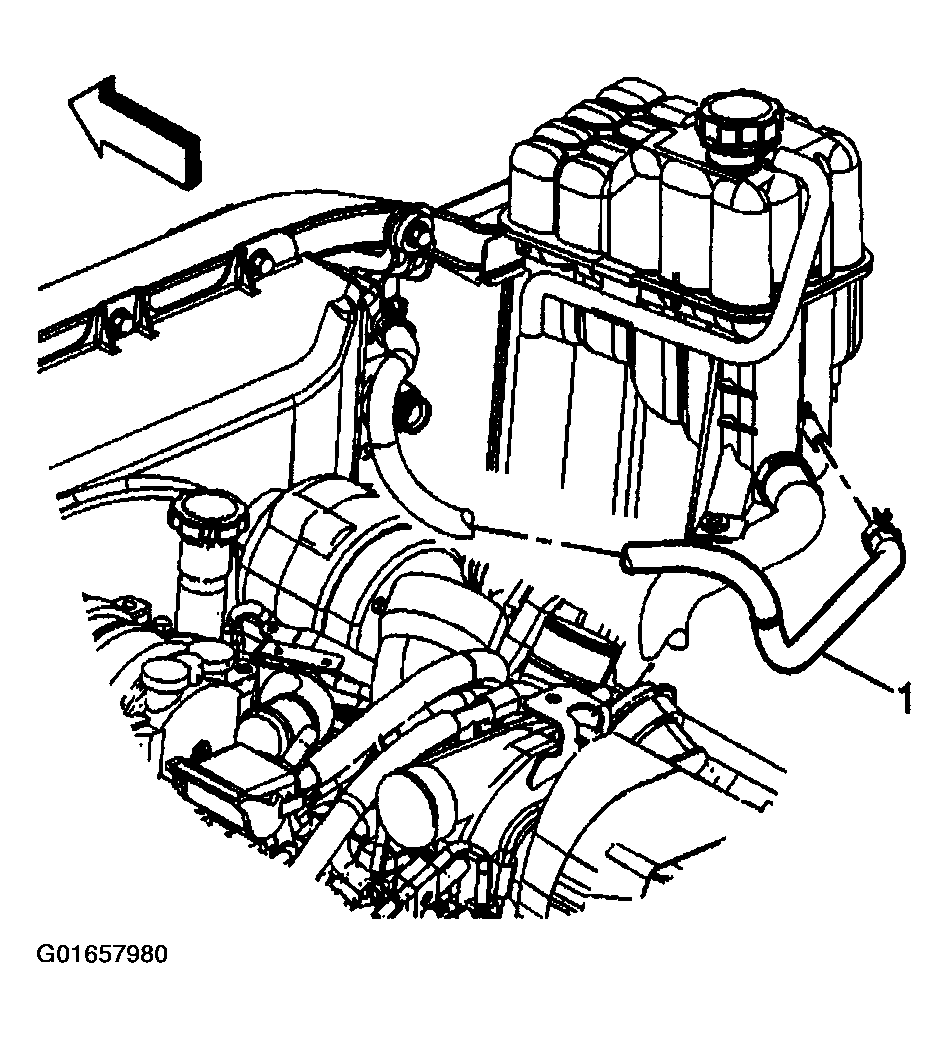

    Fig 1: Vent Inlet Hose From Surge Tank
    G01657980Courtesy of GENERAL MOTORS CORP.
