Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the engine coolant. Refer to Draining & Filling Cooling System .
  2. Move the hose clamps back on the radiator inlet hose.
  3. Remove the radiator inlet hose from the radiator.
  4. Remove the radiator inlet hose from the water outlet tube.

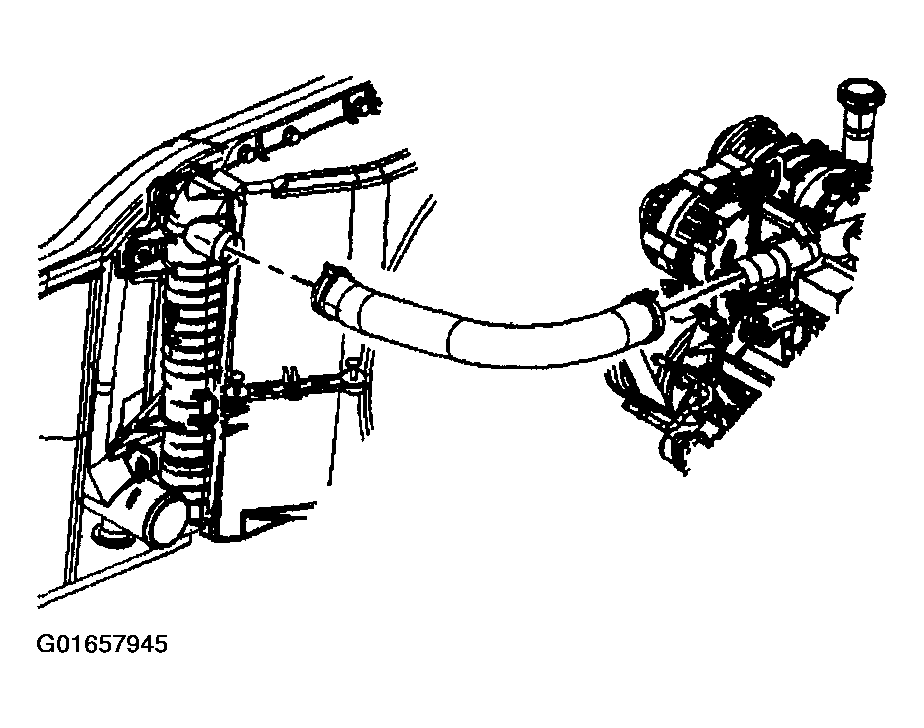

    Fig 1: Radiator Inlet Hose
    G01657945Courtesy of GENERAL MOTORS CORP.
