Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radiator. Refer to Radiator Replacement .
  2. Remove the radiator air baffle retainers.
  3. Remove the radiator air baffles.

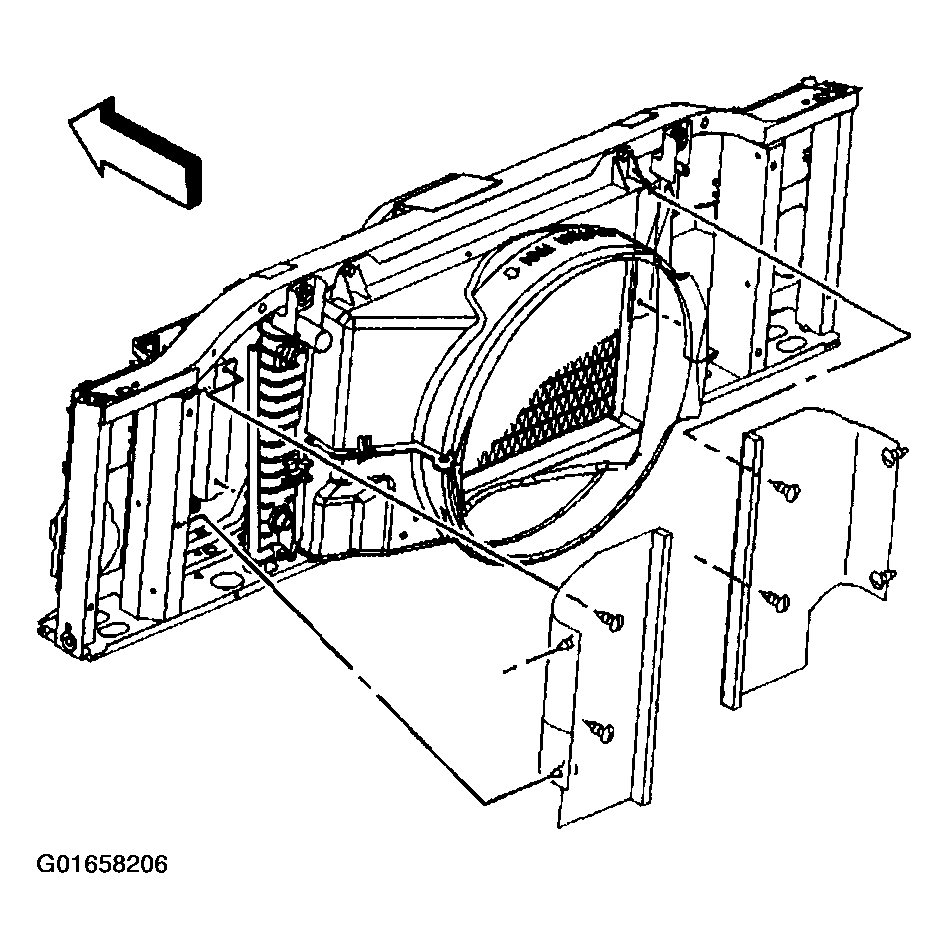

    Fig 1: Radiator Air Baffles
    G01658206Courtesy of GENERAL MOTORS CORP.
