Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fan clutch. Refer to Fan Replacement .
  2. Disconnect the camshaft position sensor connector.
  3. Remove the 3 retaining bolts and 2 nuts for the cooling fan pulley.
  4. Remove the cooling fan pulley assembly.
  5. Remove the cooling fan pulley insulator pad.

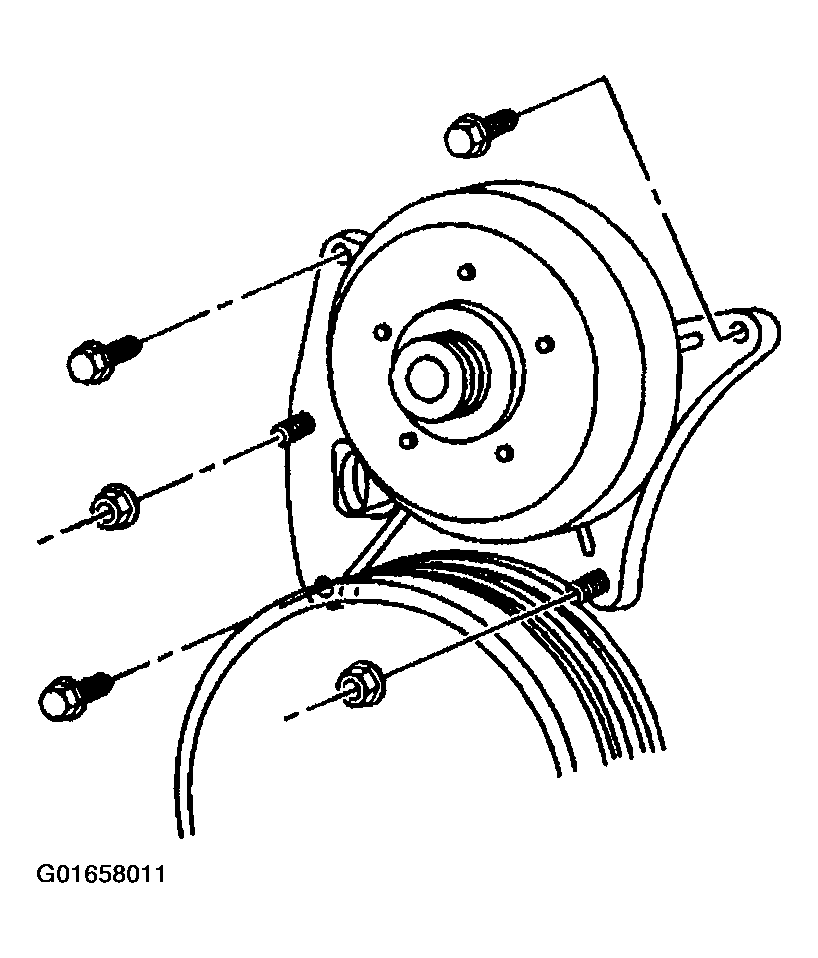

    Fig 1: Cooling Fan Pulley Assembly
    G01658011Courtesy of GENERAL MOTORS CORP.
