Heated Seats Schematics

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

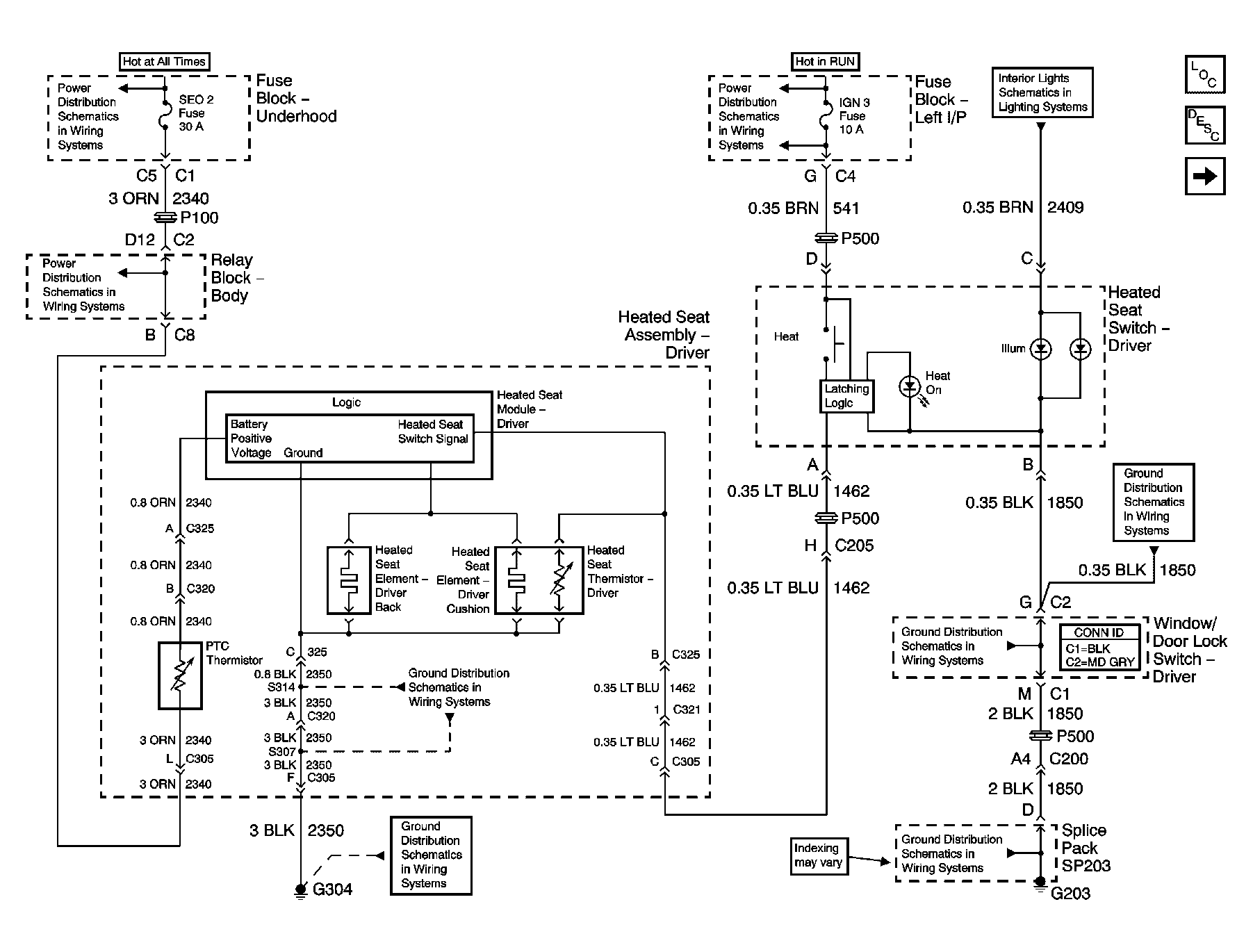

Fig 1: Heated Seats Schematic - Driver, W/O Z75

Courtesy of GENERAL MOTORS CORP.

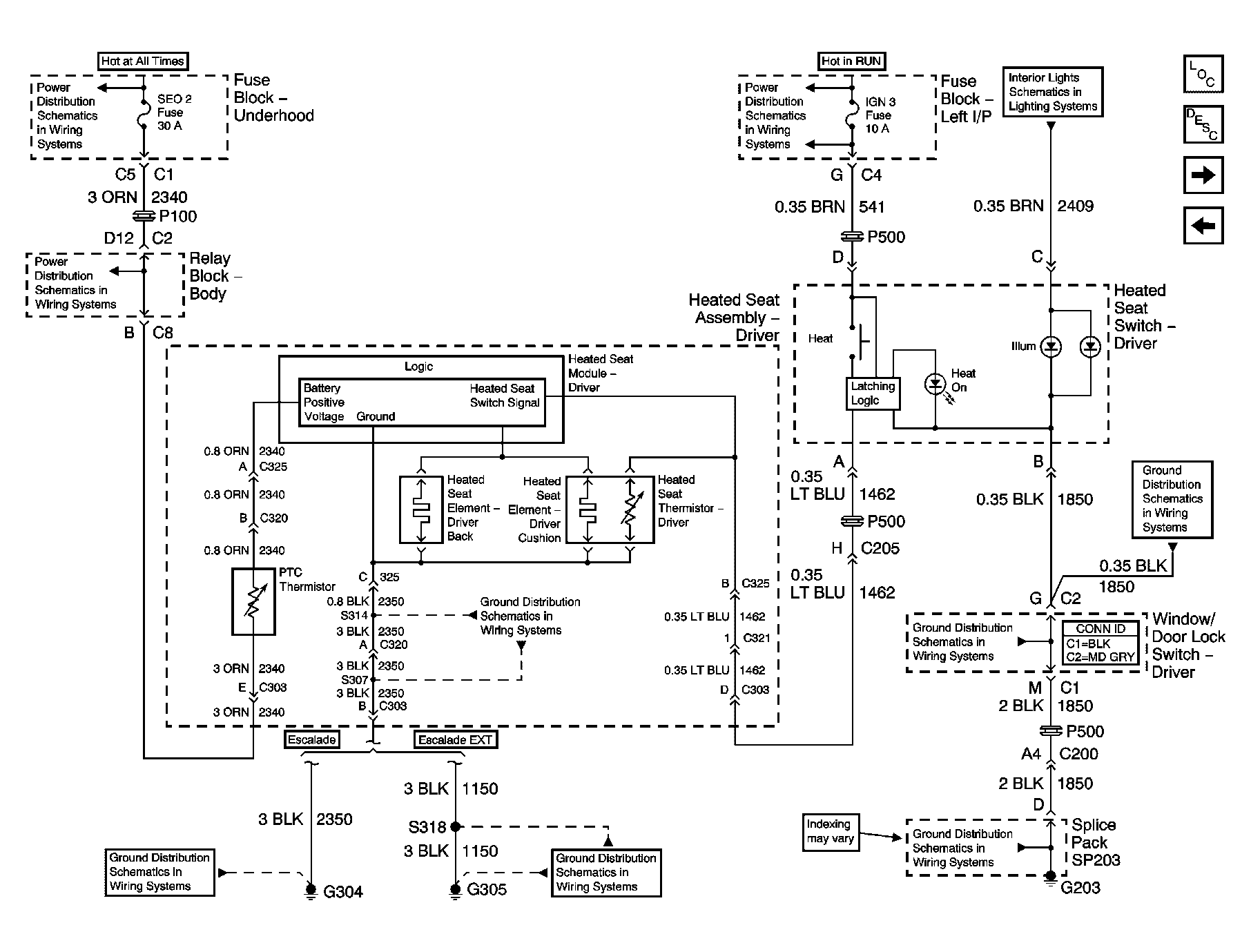

Fig 2: Heated Seats Schematic - Driver, W/Z75

Courtesy of GENERAL MOTORS CORP.

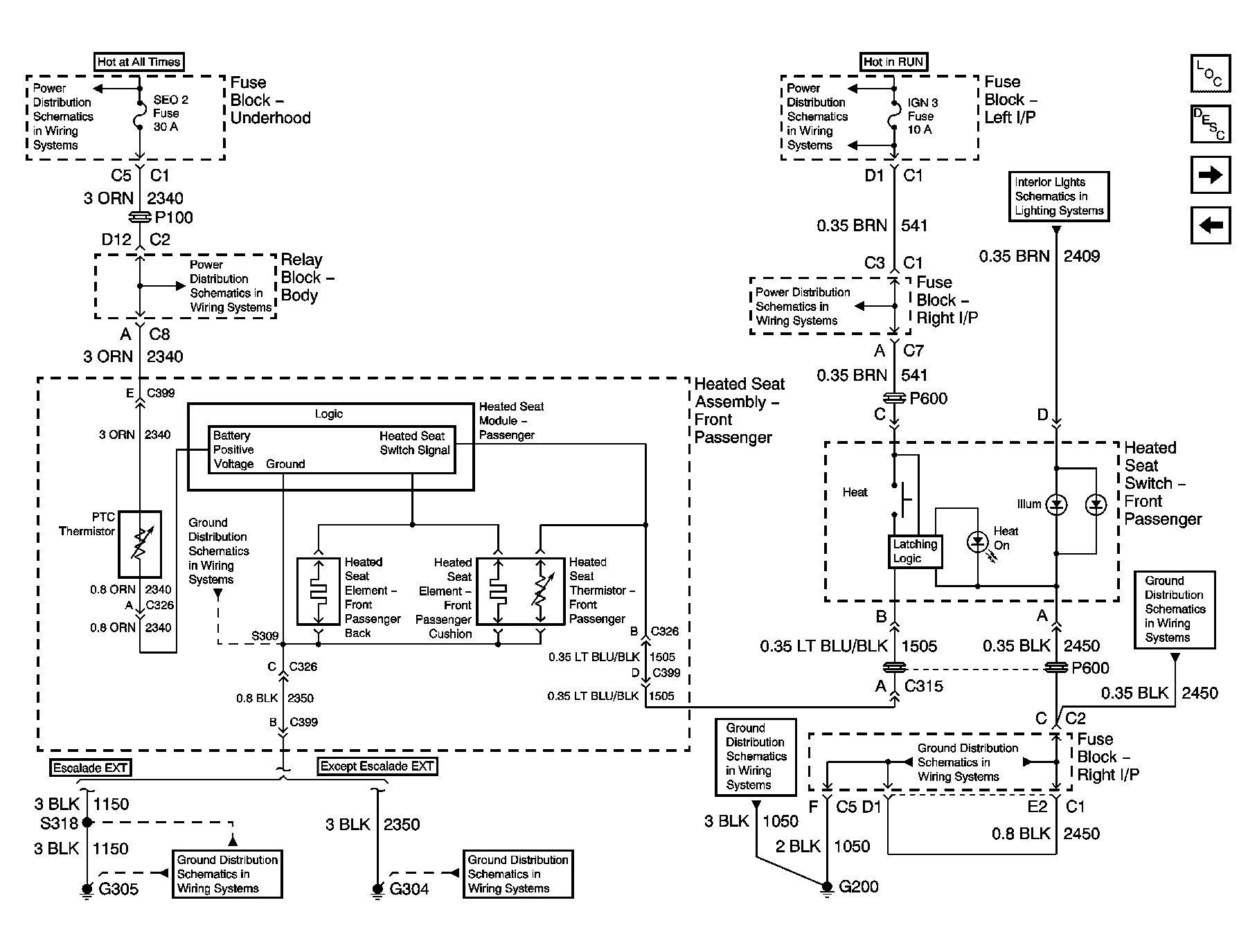

Fig 3: Heated Seats Schematic - Front Passenger

Courtesy of GENERAL MOTORS CORP.

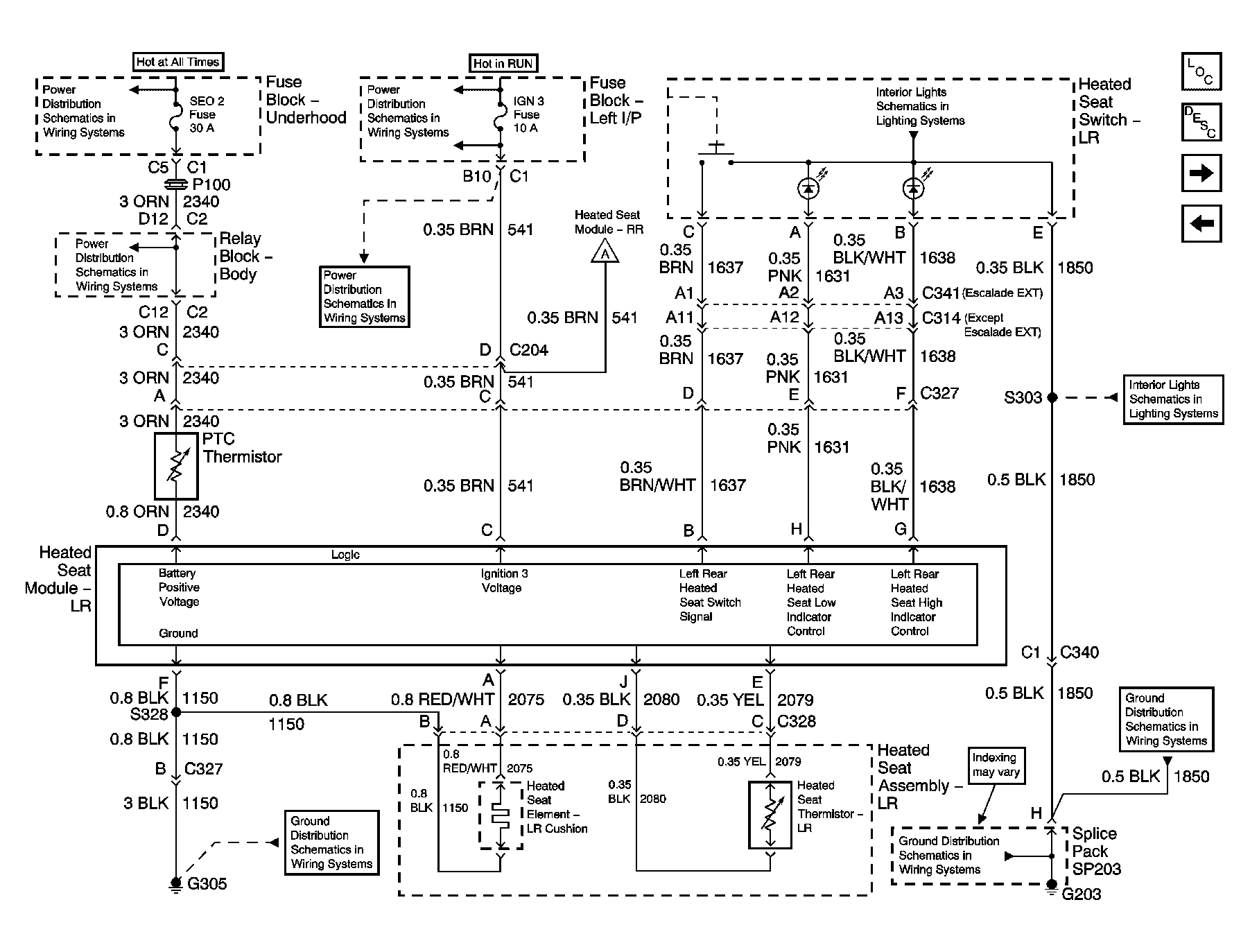

Fig 4: Heated Seats Schematic - LR

Courtesy of GENERAL MOTORS CORP.

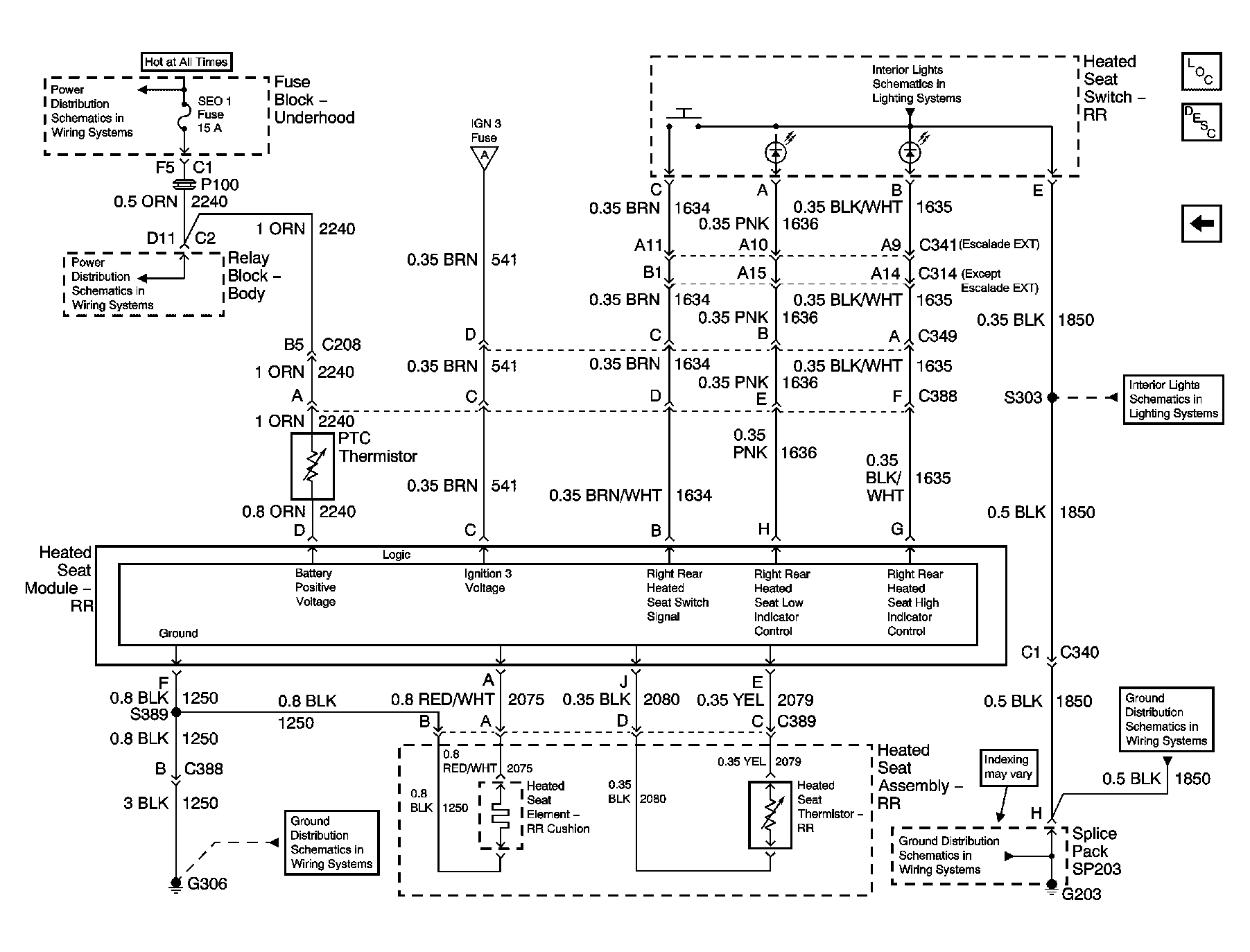

Fig 5: Heated Seats Schematic - RR

Courtesy of GENERAL MOTORS CORP.
