Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

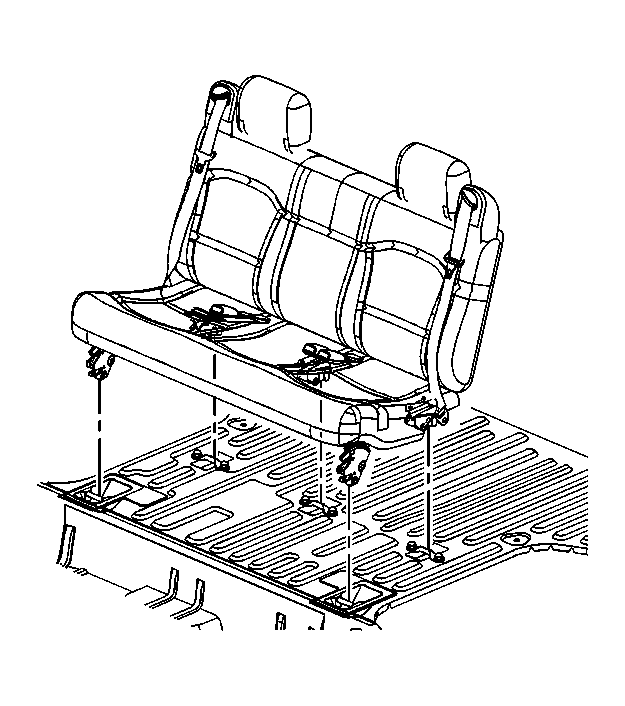

    Fig 1: Rear Bench Seat
    GM660303Courtesy of GENERAL MOTORS CORP.
  1. Install the seat into the vehicle.
  2. Align the seat attaching points with the slots in the floor rail.
  3. Roll the seat back and down in order to secure the seat into place.
